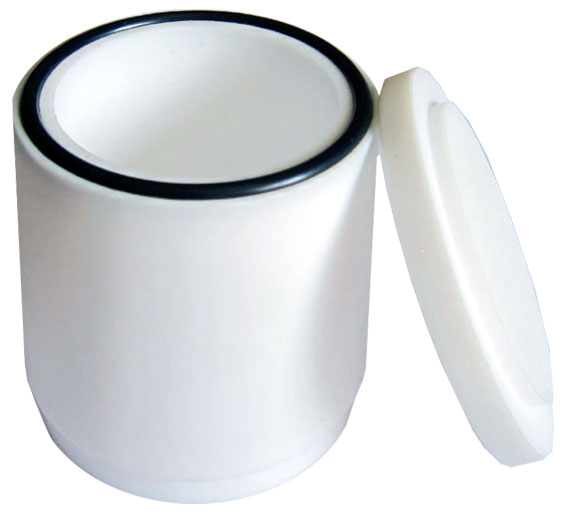

Highly non-sticky PTFE jars. These jars are used whenever small quantity of samples need to be grinded/milled without contamination. Each jar set includes grinding jar, lid, silicon sealing gasket and a mixed size agate grinding balls (see detail table below).
Specifications
| Jar size | 100 ml | 500 ml | 1000 ml |
| Compatible ball mill | PQ-N04 | PQ-N2 | PQ-N4 |
| Outer diameter (OD) | 68 mm | 115 mm | 132 mm |
| Inner diameter (ID) | 52 mm | 90 mm | 115 mm |
| Total height | 68 mm | 110 mm | 138 mm |
| Depth | 50 mm | 80 mm | 110 mm |
Ball configuration
100ml | 500ml | 1000ml | ||
Ball size/qty | Ø6mm | 100 | 500 | 1000 |
Ø10mm | 16 | 100 | 200 | |
Ø20mm |
| 2 | 3 | |
