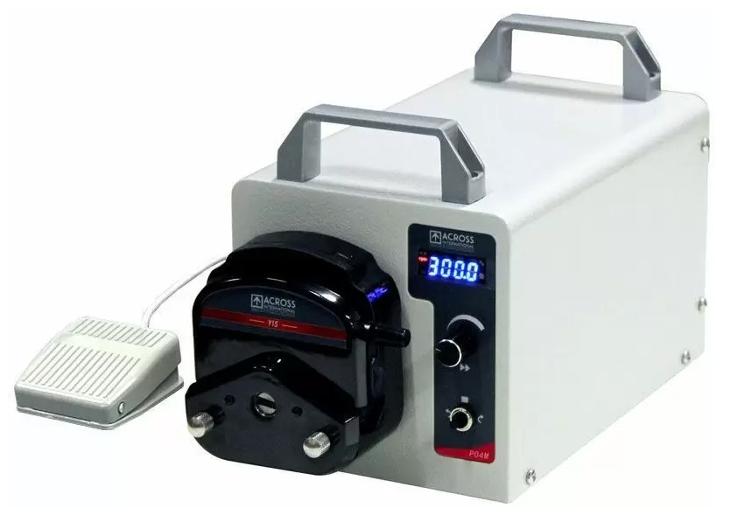

P04M Peristaltic Pump — 0.4 L/min
Across International’s P04M peristaltic pump provides fluid transfer at a stated pumping rate of 0.4 L/min, with adjustable rotational speed up to 100 rpm in 0.1 rpm increments. Featuring a Y15 pump head and analog controls, it is suitable for laboratory fluid transfer and process feeding applications involving compatible liquids and tubing.
The pump uses rotating rollers to compress a flexible tube, moving fluid towards the outlet. The liquid remains contained within the tubing, keeping it separated from the pump’s mechanical components and simplifying fluid-contact maintenance.
An included remote on/off switch allows external start and stop control. Optional RS485, 0–5 V, 0–10 V and 4–20 mA interfaces support integration with compatible control systems for pump start, stop, speed and rotation direction.
Key Features
0.4 L/min stated pumping rate: For laboratory fluid transfer and feeding applications.
Adjustable speed: Up to 100 rpm with 0.1 rpm setting increments.
Y15 pump head: Accommodates tubing up to the stated maximum size of ½ inch.
Contained fluid path: Fluid contacts the tubing rather than the pump mechanism.
Analog control: Straightforward adjustment for routine operation.

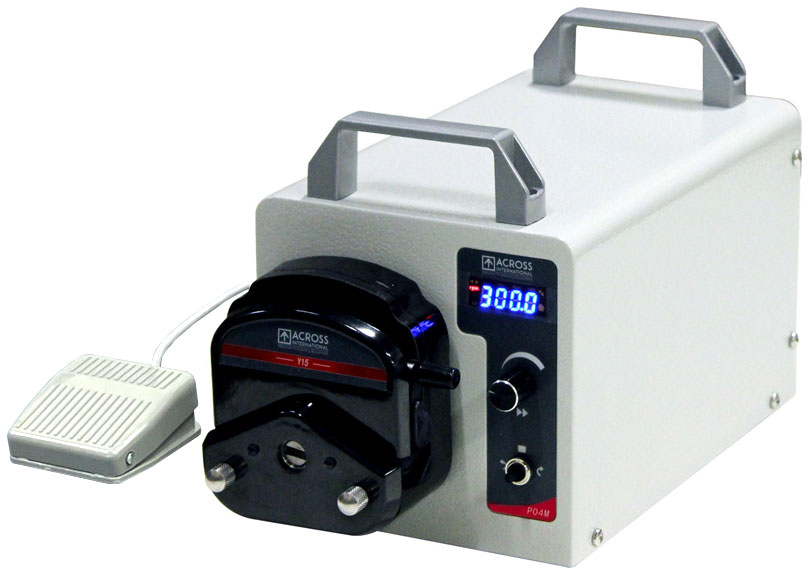

Remote on/off switch included: Enables external start and stop control.
Optional automation interfaces: RS485 and analog signal options for compatible PLC and process control systems.
Wide input voltage range: Automatic voltage recognition from 110 to 230 V AC.
Compact design: Measures 150 × 300 × 190 mm.
One-year warranty.
