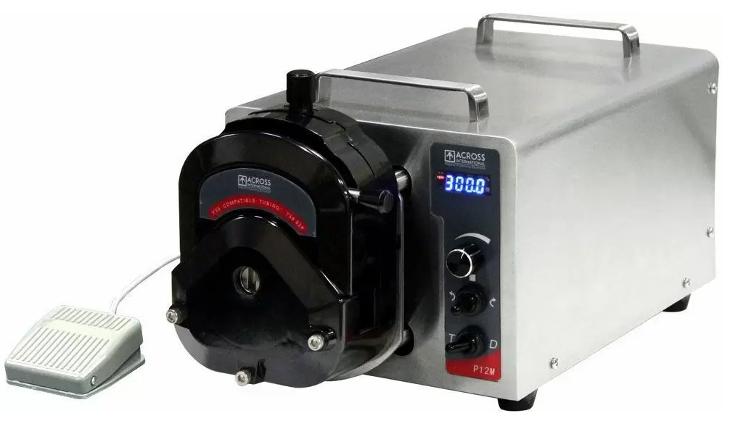

P12M Peristaltic Pump — 12 L/min
Across International’s P12M peristaltic pump provides fluid transfer at a stated pumping rate of 12 L/min, with adjustable rotational speeds up to 600 rpm. Featuring a Y35 pump head, analog controls and timed dispensing functions, it is suitable for laboratory fluid transfer, process feeding and repetitive dispensing applications involving compatible liquids and tubing.
Rotating rollers compress flexible tubing to move liquid towards the outlet. Fluid remains contained within the tube, separating it from the pump’s mechanical components and simplifying fluid-contact maintenance.
Adjustable dispensing duration, interval and repeat count support repetitive operation. A rollback function reverses the pump after dispensing to help retract residual liquid and reduce dripping at the outlet.
An included remote on/off switch enables external start and stop control. Optional RS485 and analog signal interfaces support integration with compatible PLC and process control systems.
Key Features
12 L/min stated pumping rate: For fluid transfer, process feeding and dispensing applications.
Y35 pump head: Accommodates tubing up to the stated maximum size of ⅝ inch.
Adjustable speed: Up to 600 rpm in 0.1 rpm increments.

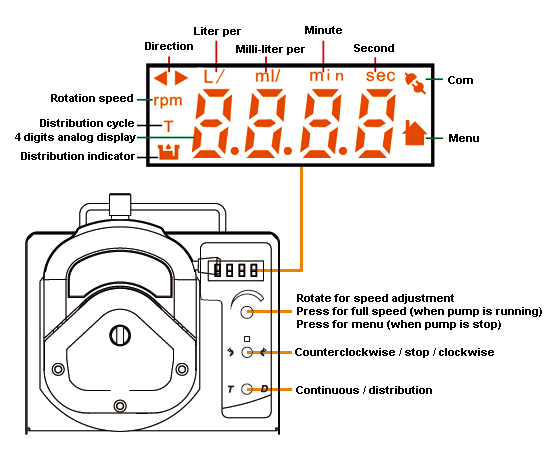

Analog control: Straightforward adjustment for routine operation.
Timed dispensing: Dispensing duration and interval adjustable from 0.1 second to 9,999 minutes.
Repeat dispensing: Configurable count setting from 0 to 9,999.
Adjustable rollback: Reverse rotation from 10° to 720°, with rollback speeds from 10 to 300 rpm.
Contained fluid path: Liquid contacts the tubing rather than the pump mechanism.
Remote operation: On/off switch included, with optional communication and analog control interfaces.
Automatic voltage recognition: Accepts 110–230 V AC, 50/60 Hz.
One-year warranty.
Configuration & Options
Pump head: Y35.
Standard tubing model: TP12M.XF.

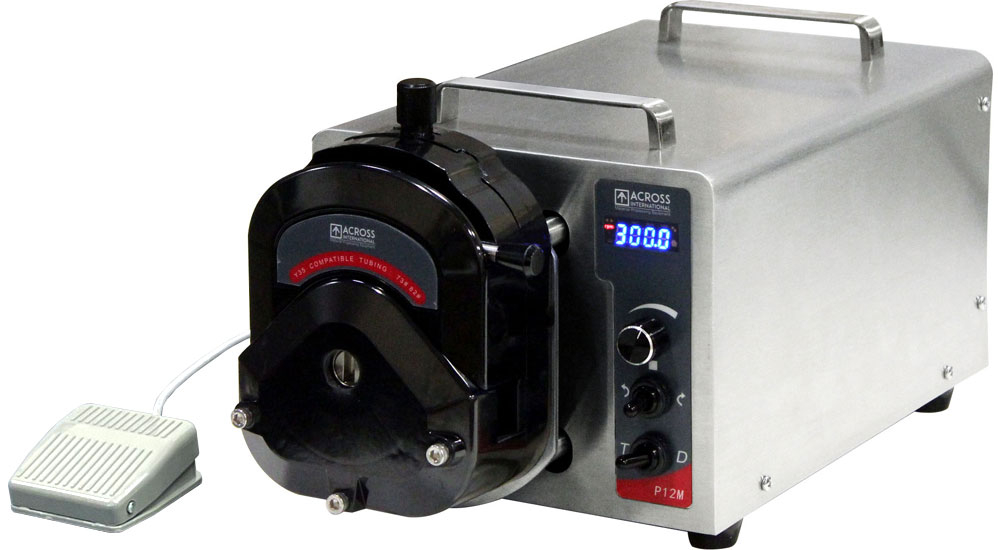

Included remote control: On/off switch.
Power cord: 230 V cord.
Optional interfaces: RS485, 0–5 V, 0–10 V and 4–20 mA.
Application Notes
Actual flow depends on tubing dimensions, tubing condition, pump speed and operating conditions. Select tubing compatible with the liquid and its operating temperature. For timed dispensing, verify the delivered volume under the intended operating conditions.
