P2A Touchscreen Peristaltic Pump — 2.3 L/min
Across International’s P2A peristaltic pump combines adjustable fluid transfer with a colour LCD touchscreen, timed dispensing and programmable dispensing intervals. With a stated pumping rate of 2.3 L/min and rotational speeds up to 600 rpm, it is suitable for laboratory fluid transfer, process feeding and repetitive dispensing applications involving compatible liquids and tubing.

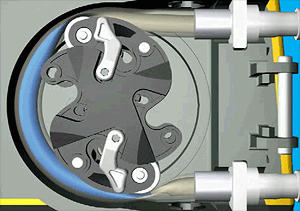

The Y15 pump head uses rotating rollers to compress flexible tubing and move liquid towards the outlet. Fluid remains contained within the tube, separating it from the pump’s mechanical components and simplifying fluid-contact maintenance.

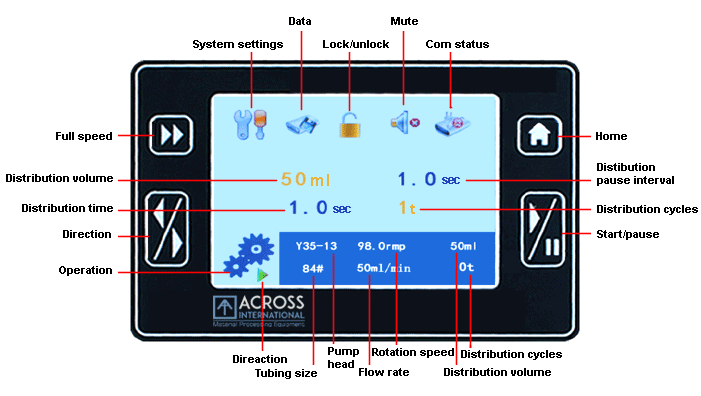

The touchscreen controller allows users to configure dispensing duration, interval and repeat count. An adjustable rollback function reverses the pump after dispensing to help retract residual liquid and reduce dripping at the outlet.

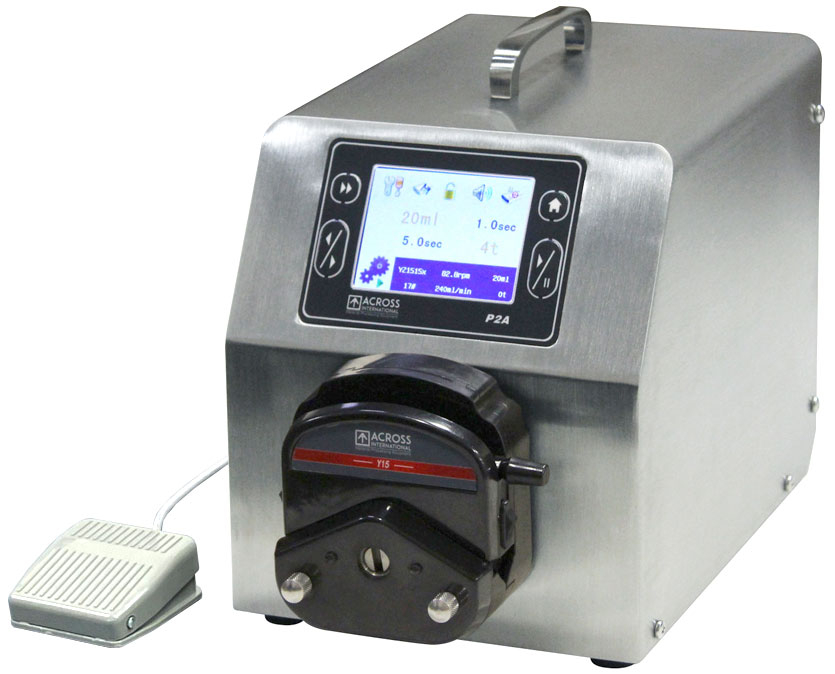

An included remote on/off switch supports external start and stop control. Optional RS485 and analog signal interfaces enable integration with compatible PLC and process control systems.

Key Features
2.3 L/min stated pumping rate: For fluid transfer, process feeding and dispensing applications.
Adjustable speed: Up to 600 rpm with 0.1 rpm setting increments.

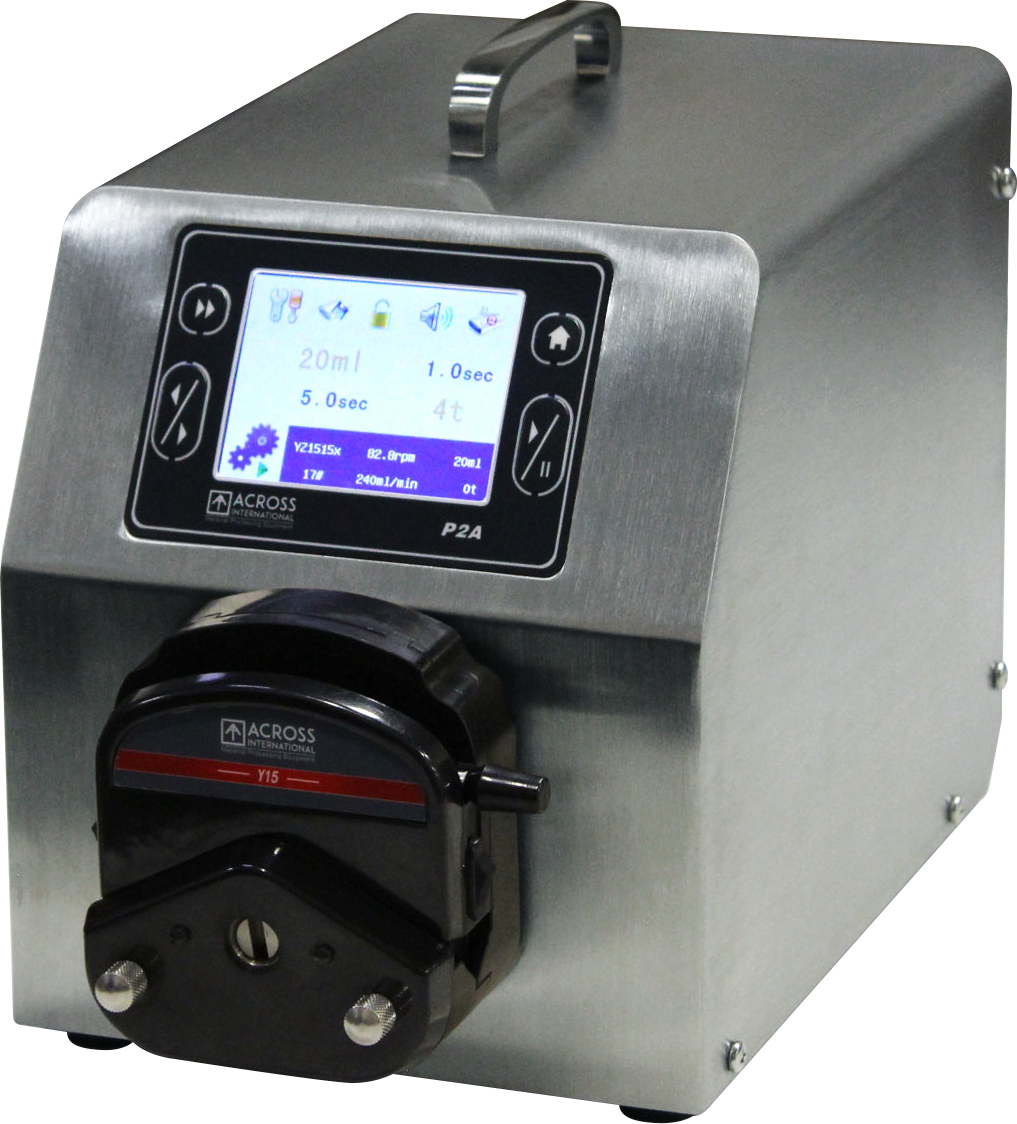

Colour LCD touchscreen: Convenient access to operating and dispensing settings.
Timed dispensing: Adjustable dispensing duration and interval from 0.1 second to 9,999 minutes.
Repeat dispensing: Configurable count setting from 0 to 9,999.
Adjustable rollback: Reverse rotation from 10° to 720° helps reduce residual dripping.
Contained fluid path: Liquid contacts the tubing rather than the pump mechanism.
Remote control: On/off switch included, with optional communication and analog control interfaces.

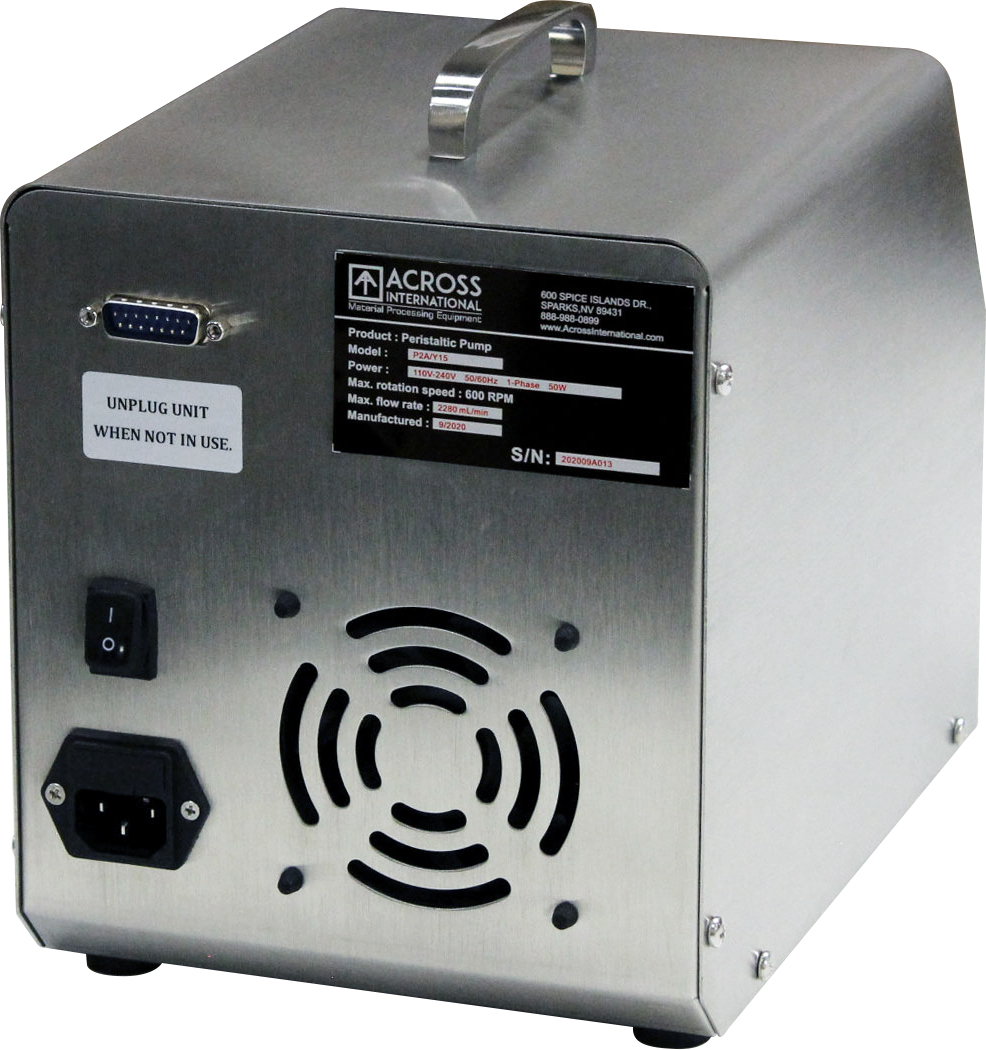

Automatic voltage recognition: Accepts 110–230 V AC, 50/60 Hz.
One-year warranty.
Control & Accessory Options
Standard tubing model: 17#.
Included external control: Remote on/off switch.
Optional interfaces: RS485, 0–5 V, 0–10 V and 4–20 mA.
Power cord option: 230 V cord available upon request; specify the required plug configuration when ordering.
Application Notes
Actual flow depends on tubing dimensions, tubing condition, pump speed and operating conditions. Select tubing suitable for the fluid’s chemical composition and temperature. Timed dispensing settings control operating duration; delivered volume should be verified under the intended operating conditions.
