SKU # :
PCD-C6001ZF

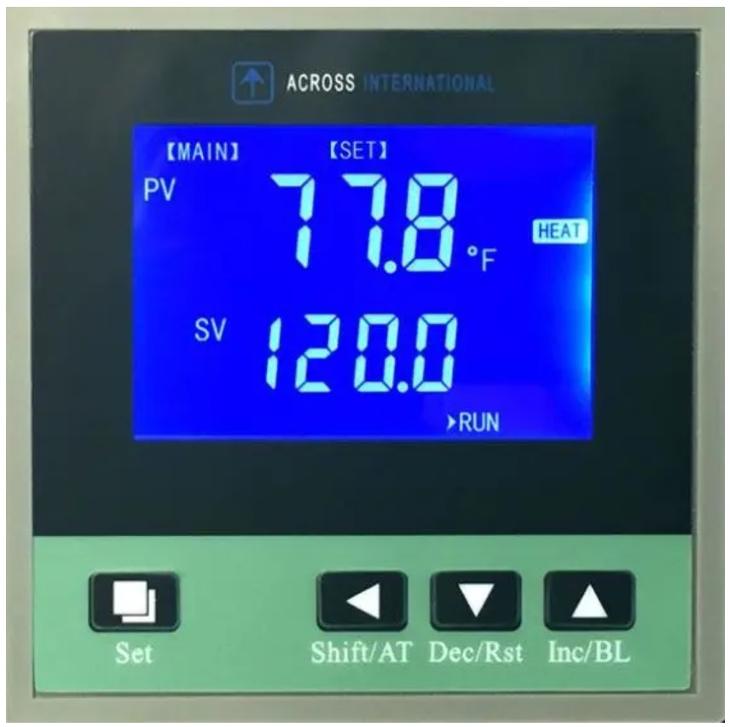

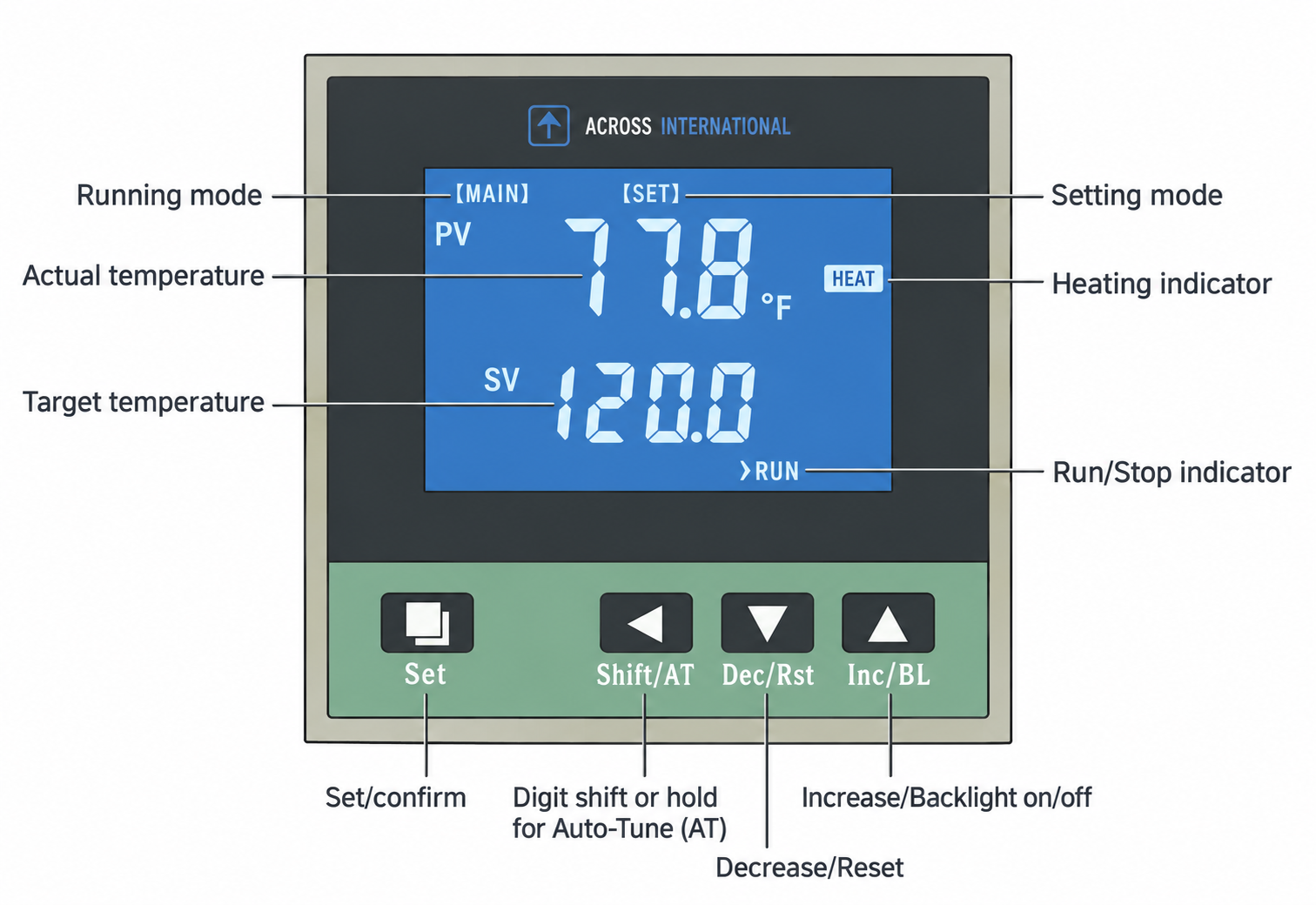

Ai 3rd Gen low proportional gain digital controller with LCD panel for precise low temperature operations. Range from ambient to 300°C and display temperatures in either Fahrenheit or Celsius.
Note: If you intend to use your oven at temperatures higher than 90°C, please perform an Auto-Tune (see oven manual) for faster heating rate.
Specifications
| Electrical requirements | 220-240V single phase |
| Temperature range | 30 to 300°C |
| Unit dimensions | 95 x 95 x 65 mm (WxHxD) |
| Shipping dimensions | 150 x 150 x 150 mm (WxDxH) |
| Temperature accuracy | +/- 1°C |
| Temperature controller resolution | 0.1°C |
| Dwelling timer range | 0 to 9999 minutes (0 means no timing) |
| Dwelling timer unit | Minute or hour |
| Built-in calibration | Yes |
| PID control | Yes |
| Temperature display mode | Fahrenheit or Celsius |
| Shipping weight | 0.5 KG |
| Compatible vacuum ovens | Ai AT26 AT54 AT90x AT140x
AT450x vacuum ovens Ai FO19203 FO19140 FO19240 FO19440 19640 fan forced ovens |
