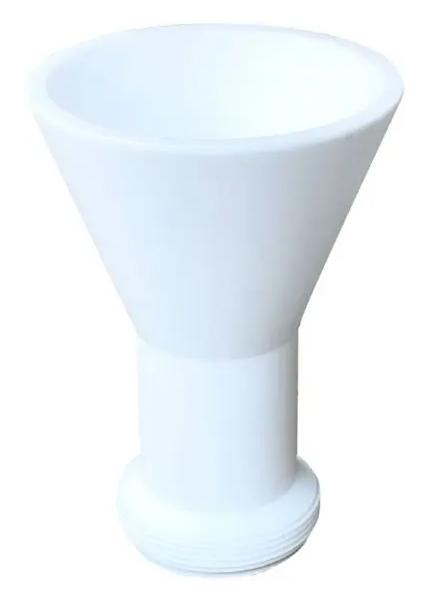

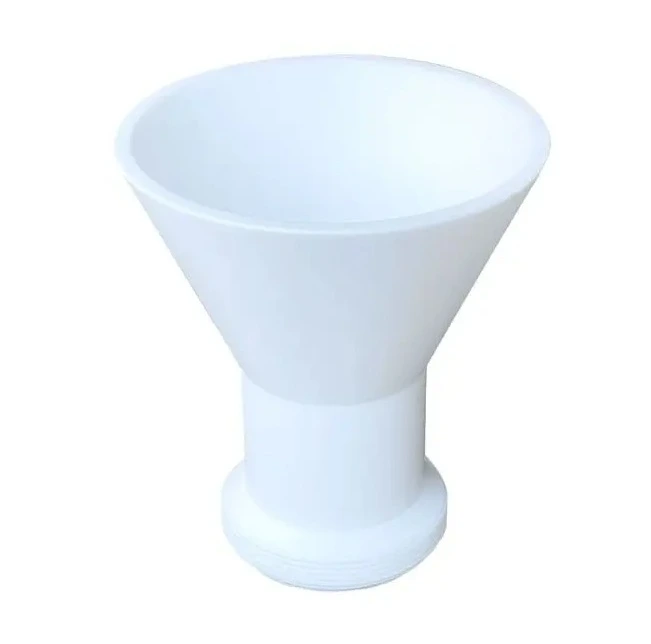

PTFE Funnel For Ai Glass Reactors

Excl. GST

Choose reactor
- Ai 10L, 20L, 50L single-jacket & 10L, 20L dual-jacket reactors
- Ai 100L glass reactor + A$ 300.00
- Ai 150L glass reactor + A$ 300.00
- Ai 200L Glass reactor + A$ 300.00

Please contact our friendly sales team for urgent orders.

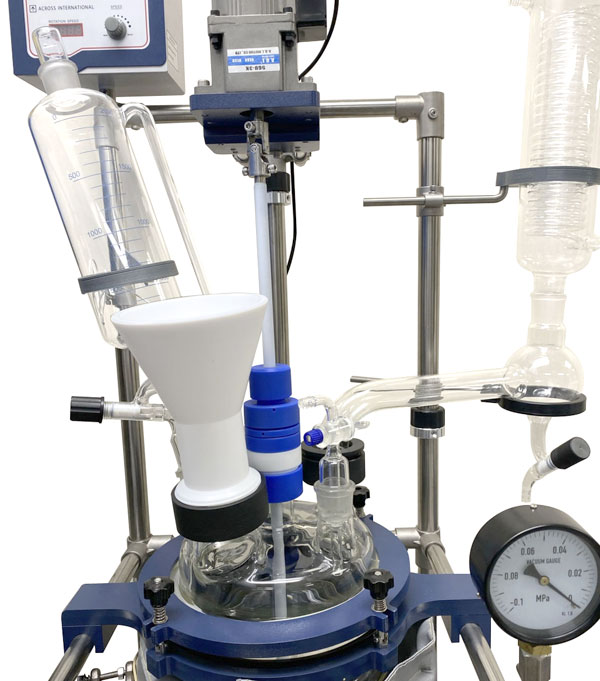

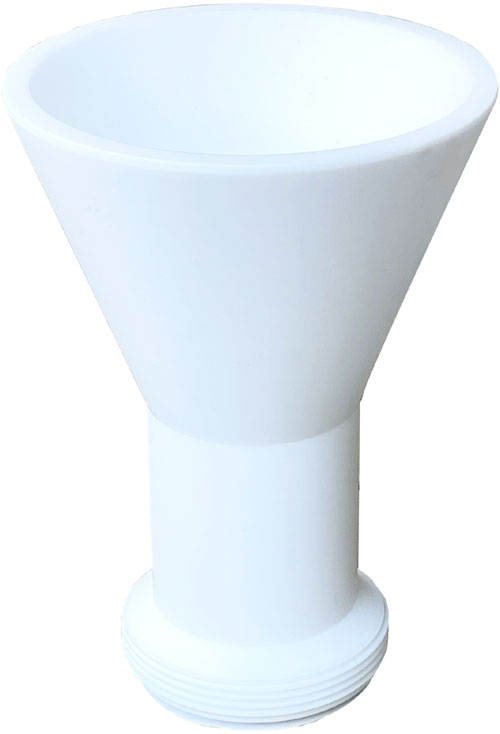

Across International PTFE funnel, specially made for Ai R series glass reactors.

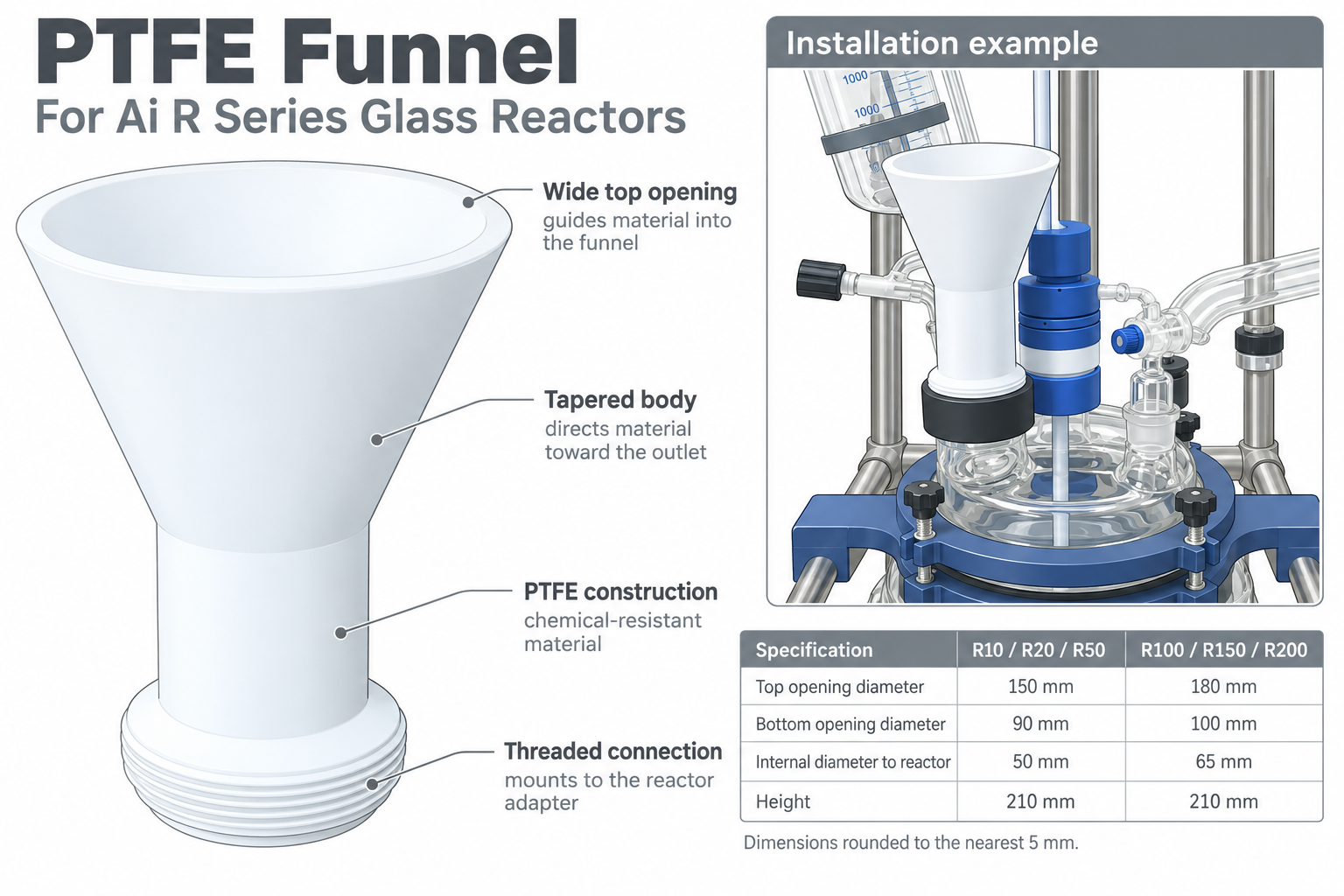

Specifications

For R10, R20 and R50
Top opening diameter: 150 mm
Bottom opening diameter: 90 mm
Internal diameter to reactor: 50 mm
Height: 210 mm

For R100, R150 and R200
Top opening diameter: 180 mm
Bottom opening diameter: 100 mm
Internal diameter to reactor: 65 mm
Height: 210 mm
