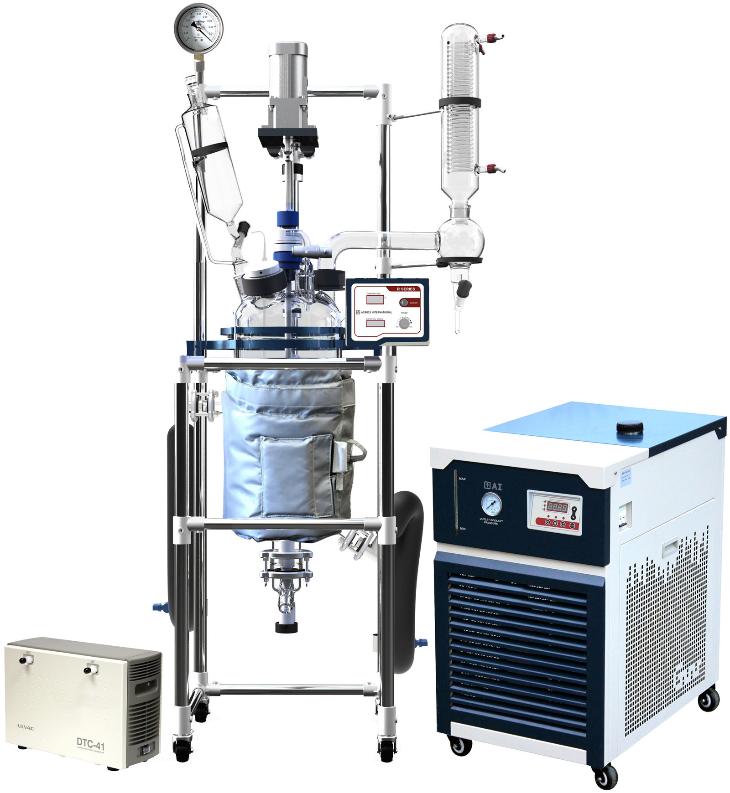

Ai 10L Single or Dual Jacketed Glass Reactor w/ Chiller & Pump

Ai R-series single/dual jacketed glass reactors are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.

Features

• Now includes a FREE high quality thermo insulation jacket (a $549 value) with open/close viewing window and top/bottom adjustable drawstrings, specially designed and made for Ai glass jacketed reactors. These jackets will extend chiller life, allow you to go down to a lower temperature, and also cut your utility bill.
• Dual jacketed model allows you to draw vacuum from the outer jacket, thus protects your recirculating fluid temperature and gives you best control over your work. It also help prevents frost to form on the outside of the vessel, allowing you to see clearly into your material.

• Solvent-resistant PTFE on all sealing components ensures long time durability and operation.
• All glassware is hand-made from food grade high borosilicate glass that is heat/cold/corrosion-resistant.
• Adjustable stirring rate provides great torque or high speed.
• Patented PTFE stirring rod bearing for reliable and quiet operation.
• Optional multi-layer stirring blades for optimal reaction results.
• Wide range of temperature operations, from -80°C to 200°C.
• Large condenser cooling surface for exceptional condensation performance.
• Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials.
• Easily visual operation with digital speed and temperature displays.
• Heavy duty stainless steel supporting framework with lockable casters for mobility and stability. (whole support and glass vessel shipped pre-assembled)
• One year warranty and lifetime US-based parts, service, and support.

Your safety is important to us! Please use caution when operating. Users of glass reaction equipment must take all necessary precautions to avoid contact with rotating parts, particularly entanglement of loose clothing, hair, necklaces, or other jewelry. Under these circumstances, the winding action of the rotating parts can draw the user(s) into the apparatus, resulting in breakage of glassware, burns, and/or chemical exposure. Extra caution must also be taken when operating with air-reactive materials, especially under vacuum. A leak can draw air into the apparatus and cause a violent reaction to occur.

Specifications





R10-C30-DTC41 Standard Package

Part description	Quantity	Part image
Ai C30-30 -30°C recirculating chiller & fittings	1 set

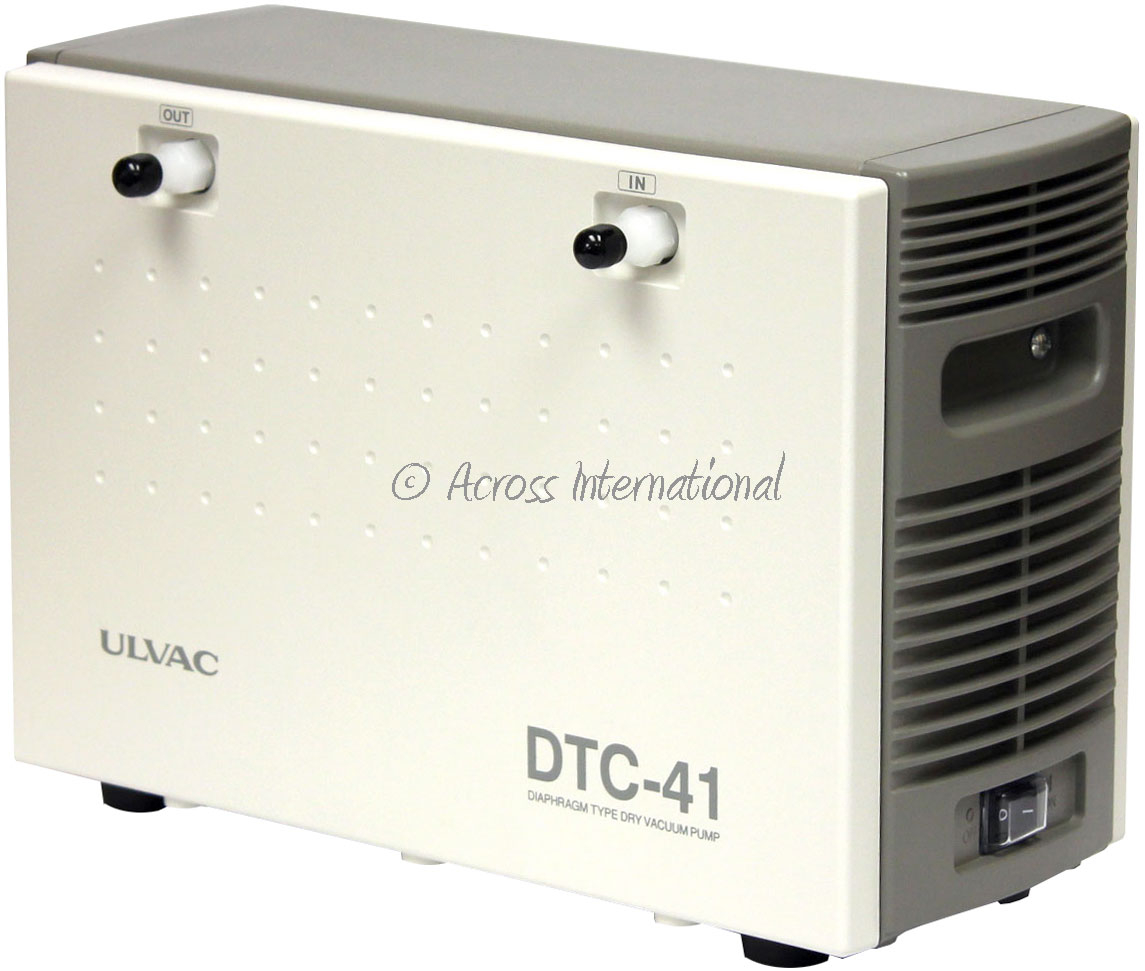

ULVAC DTC-41 1.6 cfm dual-head chemical-resistant diaphragm pump	1 set
Jacketed glass vessel, lid, clamps and heavy duty stainless steel stand with casters (shipped pre-assembled)	1 set
Glass vessel insulation jacket with openable viewing window	1 pc
Vertical condenser with dual cooling coils, 2 chilling fluid ports and 1 vacuum port, glass	1 pc
Glass condenser dispenser with drain port and PTFE open/close valve	1 set
Glass material feeding funnel, lid, and PTFE open/close valve	1 set
1" glass bottom drain port with PTFE open/close valve	1 set
Glass vacuum valve	1 set
Stirring motor controller with material temperature display	1 pc
Stirring motor and motor support	1 set
Mechanical vacuum gauge with two 3/8" hose barb ports	1 pc
Temperature probe with PTFE seal	1 pc
PTFE stirring blades, stainless steel rod with PTFE liner	1 pc
Insulated hose with drain port & open/close valve x 2  Stainless steel hose barb adapter x 2	4 pcs
PTFE sealing tape	1 pc
PTFE stirring rod positioner/bearing kit	1 set
Condenser dispenser connection kit	1 set
Large opening material feeding port kit	1 set
Drain port sealing clamp	1 set
Rubber-wrapped condenser dispenser support and condenser bracket	3 pcs
Chilling fluid connector x 2, vacuum connector x 1	3 sets
Allen key and backup inner hex screws	1 set
User's manual	1 pc
