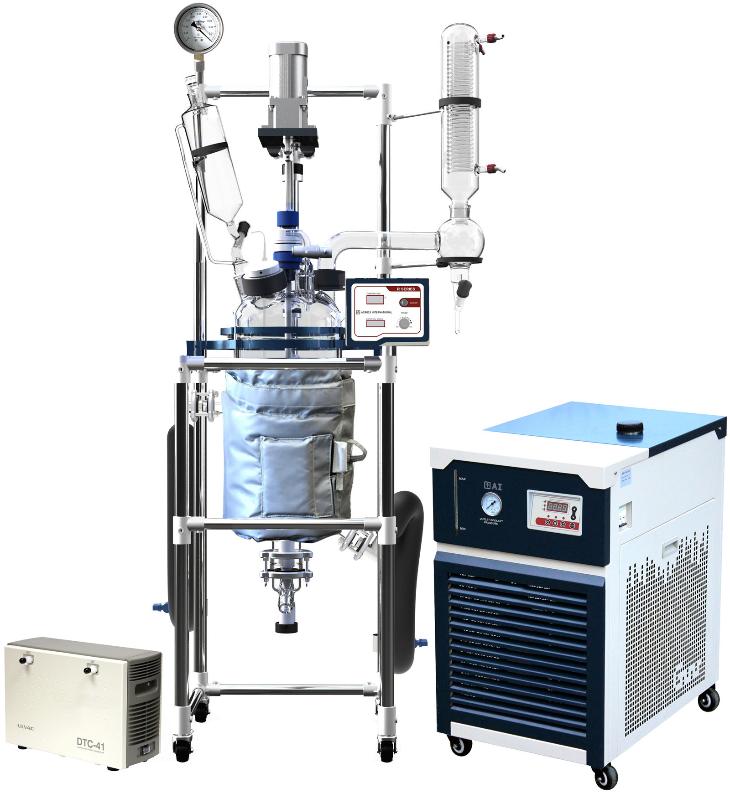

Ai 10L Single or Dual Jacketed Glass Reactor w/ Chiller & Pump

https://across-international.odoo.com/web/image/product.template/488/image_1920?unique=64eaa06

SKU# R10-C30-DTC41

A$ 14,690.00 A$ 14,690.00 14690.0 AUD

A$ 14,690.00

Excl. GST
  • Glass reactor vessel

This combination does not exist.


SKU # : R10-C30-DTC41

Terms and Conditions


Ai R-series single/dual jacketed glass reactors are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.

Features

  • Now includes a FREE high quality thermo insulation jacket (a $549 value) with open/close viewing window and top/bottom adjustable drawstrings, specially designed and made for Ai glass jacketed reactors. These jackets will extend chiller life, allow you to go down to a lower temperature, and also cut your utility bill.
  • Dual jacketed model allows you to draw vacuum from the outer jacket, thus protects your recirculating fluid temperature and gives you best control over your work. It also help prevents frost to form on the outside of the vessel, allowing you to see clearly into your material.
  • Solvent-resistant PTFE on all sealing components ensures long time durability and operation.
  • All glassware is hand-made from food grade high borosilicate glass that is heat/cold/corrosion-resistant.
  • Adjustable stirring rate provides great torque or high speed.
  • Patented PTFE stirring rod bearing for reliable and quiet operation.
  • Optional multi-layer stirring blades for optimal reaction results.
  • Wide range of temperature operations, from -80°C to 200°C.
  • Large condenser cooling surface for exceptional condensation performance.
  • Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials.
  • Easily visual operation with digital speed and temperature displays.
  • Heavy duty stainless steel supporting framework with lockable casters for mobility and stability. (whole support and glass vessel shipped pre-assembled)
  • One year warranty and lifetime US-based parts, service, and support.

Your safety is important to us! Please use caution when operating. Users of glass reaction equipment must take all necessary precautions to avoid contact with rotating parts, particularly entanglement of loose clothing, hair, necklaces, or other jewelry. Under these circumstances, the winding action of the rotating parts can draw the user(s) into the apparatus, resulting in breakage of glassware, burns, and/or chemical exposure. Extra caution must also be taken when operating with air-reactive materials, especially under vacuum. A leak can draw air into the apparatus and cause a violent reaction to occur.

Specifications

 Model R10 R20 R50 R100
 Electrical requirements 220-240V 50/60Hz, 1-Phase
 Power
 90W 140W 250W
 Reaction glass vessel capacity
 10L 20L 50L  100L
 Cooling/heating jacket capacity 3L 6L 16L 30L
 Glass materialHigh borosilicate glass 3.3
 Rotation controllerDigital controller with variable frequency drive
Rotation speed: 50 to 500 rpm
 Maximum jacket pressure4.4 psi or 0.03 MPa
 Drain valveFlush seal design with large opening and flat flange clamp
 AgitatorAnchor design, type-304 stainless steel reinforced PTFE structure
 FunnelPressure equalizing
 Vacuum gaugeMechanical
 Glass vessel temperature range -80°C to 200°C
 Vacuum level< 700 torrs
 Vacuum sealingGlass or PTFE
 Drain port ground clearance 380 mm 330 mm 320 mm 340 mm

 Unit dimensions (WxDxH, mm)

 460 x 660 x 1980 510 x 690 x 2030 660 x 840 x 2160 710 x 1070 x 2410
 Shipping dimensions (WxDxH, mm) 610 x 1700 x 660 610 x 1910 x 790 640 x 2110 x 1070 660 x 2240 x 1140
 Shipping weight 109 kg 119 kg 150 kg 177 kg
 Download Product brochure
 Compliance UL (optional), CSA, CE (optional)
 Click here for specs for C30-30 -30°C/-22°F recirculating chiller
 Click here for specs for ULVAC DTC-41 1.6 cfm dual-head diaphragm pump
Download Ai jacketed reactor brochure








R10-C30-DTC41 Standard Package

 Part description

 Quantity

Part image

 Ai C30-30 -30°C recirculating chiller & fittings
1 set
 ULVAC DTC-41 1.6 cfm dual-head chemical-resistant diaphragm pump 1 set
 Jacketed glass vessel, lid, clamps and heavy duty stainless steel stand with casters (shipped pre-assembled)
1 set
 Glass vessel insulation jacket with openable viewing window1 pc

 Vertical condenser with dual cooling coils, 2 chilling fluid ports and 1 vacuum port, glass

1 pc
 Glass condenser dispenser with drain port and PTFE open/close valve
1 set
 Glass material feeding funnel, lid, and PTFE open/close valve
1 set
 1" glass bottom drain port with PTFE open/close valve
1 set
 Glass vacuum valve
1 set
 Stirring motor controller with material temperature display
1 pc
 Stirring motor and motor support
1 set
 Mechanical vacuum gauge with two 3/8" hose barb ports
1 pc
 Temperature probe with PTFE seal
1 pc
 PTFE stirring blades, stainless steel rod with PTFE liner
1 pc
 Insulated hose with drain port & open/close valve x 2
 Stainless steel hose barb adapter x 2

4 pcs

 PTFE sealing tape1 pc
 PTFE stirring rod positioner/bearing kit
1 set
 Condenser dispenser connection kit1 set
 Large opening material feeding port kit1 set
 Drain port sealing clamp 1 set
 Rubber-wrapped condenser dispenser support and condenser bracket3 pcs
 Chilling fluid connector x 2, vacuum connector x 1
3 sets
 Allen key and backup inner hex screws1 set
 User's manual1 pc
