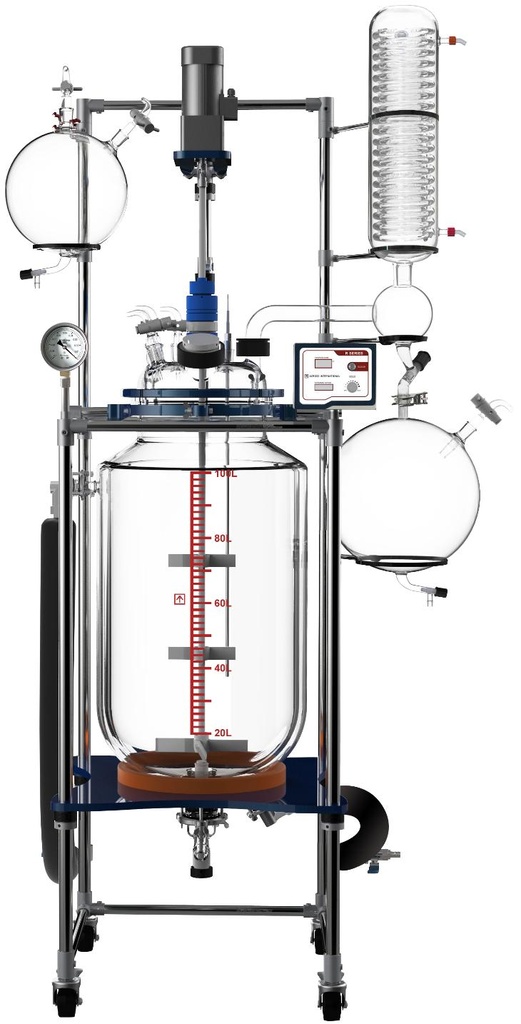

Ai 100L Single Jacketed Glass Reactor

Ai R100 series jacketed glass reactors are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.

Features

• UL 61010-1, CSA C22.2 and CE certified (optional)

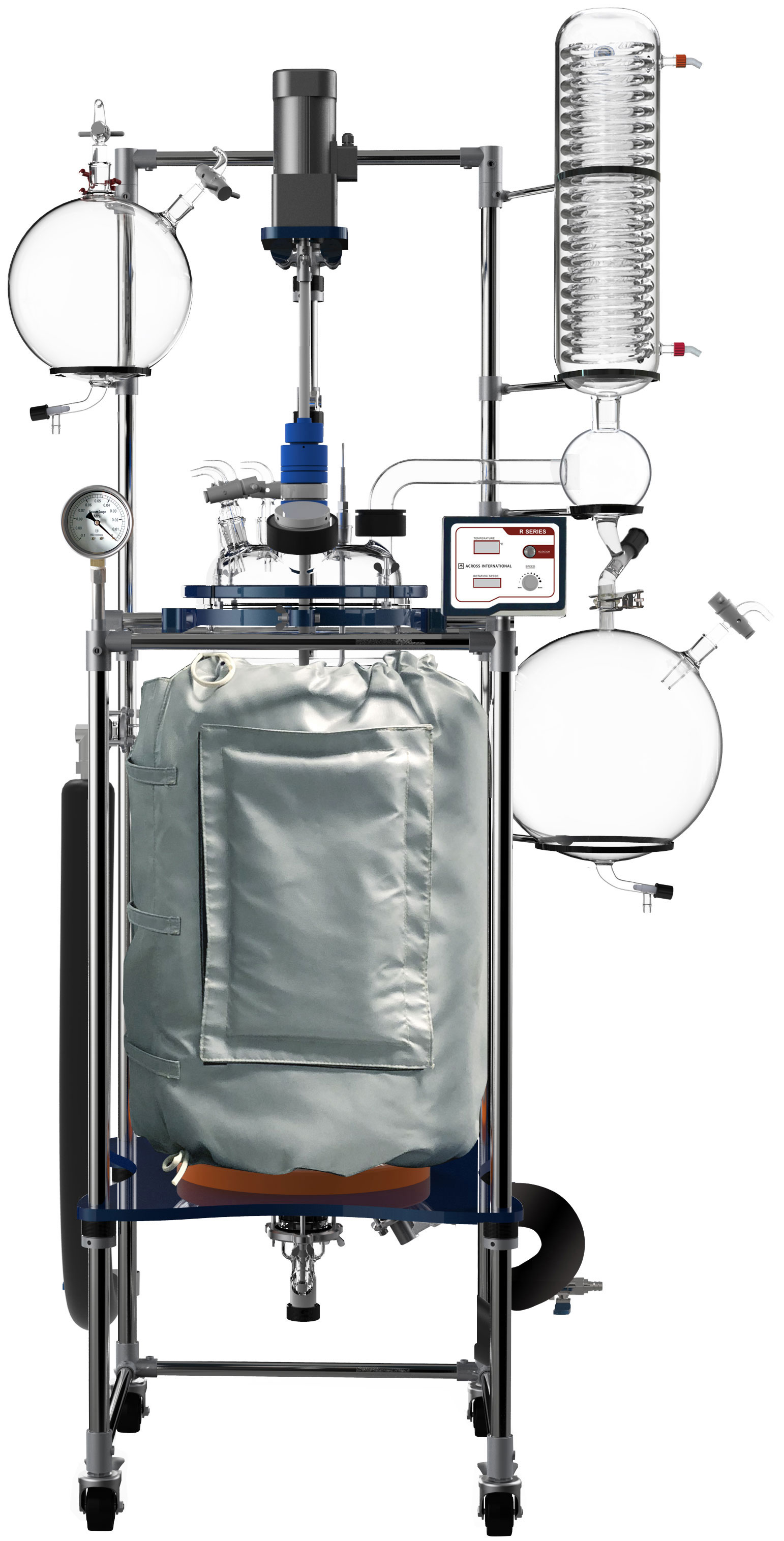

• Now includes a FREE high quality thermo insulation jacket (a $1190 value) with open/close viewing window and top/bottom adjustable drawstrings, specially designed and made for Ai glass jacketed reactors. These jackets will extend chiller life, allow you to go down to a lower temperature, and also cut your utility bill.
• Solvent-resistant PTFE on all sealing components ensures long time durability and operation.
• Adjustable stirring rate provides great torque or high speed.
• Patented PTFE stirring rod bearing for reliable and quiet operation.
• Optional multi-layer stirring blades for optimal reaction results.
• Large condenser cooling surface for exceptional condensation performance.
• Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials.
• Easily visual operation with digital speed and temperature displays.
• Heavy duty stainless steel supporting framework with lockable casters for mobility and stability. (whole support and glass vessel shipped pre-assembled)

Optional 750W and 1,500W stirring motor, high power controller and stronger motor support upgrade

• 750W
• Price: $2,990, 3 weeks lead time
• Specifications: 220-240V, 50/60Hz, 1~phase, 1,390 rpm, 5.15 N.m torque, 58 dBA noise, IP55 protection, bi-directional, in-door use only
• Components: 750W motor and high power controller

• 1,500W
• Price: $4,590, 4 weeks lead time
• Specifications: 220-240V, 50/60Hz, 1~phase, 1,390 rpm, 10.23 N.m torque, 61 dBA noise, IP55 protection, bi-directional, in-door use only
• Components: 1,500W motor, high power controller and stronger support


Your safety is important to us! Please use caution when operating. Users of glass reaction equipment must take all necessary precautions to avoid contact with rotating parts, particularly entanglement of loose clothing, hair, necklaces, or other jewelry. Under these circumstances, the winding action of the rotating parts can draw the user(s) into the apparatus, resulting in breakage of glassware, burns, and/or chemical exposure. Extra caution must also be taken when operating with air-reactive materials, especially under vacuum. A leak can draw air into the apparatus and cause a violent reaction to occur.

Specifications

Model	R10	R20	R50	R100
Electrical requirements	220-240V 50/60Hz, 1-Phase
Power	90W		140W	250W
Reaction glass vessel capacity	10L	20L	50L	100L
Cooling/heating jacket capacity	3L	6L	16L	30L
Glass material	High borosilicate glass 3.3
Rotation controller	Digital controller with variable frequency drive Rotation speed: 50 to 500 rpm
Maximum jacket pressure	4.4 psi or 0.03 MPa
Drain valve	Flush seal design with large opening and flat flange clamp
Agitator	Anchor design, type-304 stainless steel reinforced PTFE structure
Funnel	Pressure equalizing
Vacuum gauge	Mechanical
Glass vessel temperature range	-80°C to 200°C
Vacuum level	< 700 torrs
Vacuum sealing	Glass or PTFE
Drain port ground clearance	380 mm	330 mm	320 mm	340 mm
Unit dimensions (WxDxH, mm)	460 x 660 x 1980	510 x 690 x 2030	660 x 840 x 2160	710 x 1070 x 2410
Shipping dimensions (WxDxH, mm)	610 x 1700 x 660	610 x 1910 x 790	640 x 2110 x 1070	660 x 2240 x 1140
Shipping weight	109 kg	119 kg	150 kg	177 kg
Download	Product brochure
Compliance	UL (optional), CSA, CE (optional)



    Standard

Standard package with all optional parts

Part description	Quantity	Part image
Jacketed glass vessel, lid, clamps and heavy duty stainless steel stand with casters (shipped pre-assembled)	1 set
Glass vessel insulation jacket with openable viewing window	1 pc
Vertical condenser with dual cooling coils, 2 chilling fluid ports and 1 vacuum port, glass	1 pc
Glass condenser dispenser with drain port and PTFE open/close valve	1 set
Glass feeding funnel with PTFE open/close valve	1 set
Glass receiving flask with PTFE open/close valve	1 set
1" Glass drain port with PTFE open/close valve	1 set
Glass vacuum valve	6 sets
Stirring motor controller with material temperature display	1 pc
Stirring motor and motor support	1 set
Mechanical vacuum gauge with two 3/8" hose barb ports	1 pc
Temperature probe with PTFE seal	1 pc
PTFE stirring blades, stainless steel rod with PTFE liner	1 pc
Insulated hose with drain port & open/close valve x 2  Stainless steel hose barb adapter x 2	4 pcs
PTFE sealing tape	1 pc
PTFE stirring rod positioner/bearing kit	1 set
Condenser dispenser connection kit	1 set
Large opening material feeding port kit	1 set
Bottom drain port sealing clamp	1 set
Rubber-wrapped condenser dispenser support and condenser bracket	3 pcs
Chilling fluid connector x 2, vacuum connector x 1	3 sets
Allen key and backup inner hex screws	1 set
User's manual	1 pc
