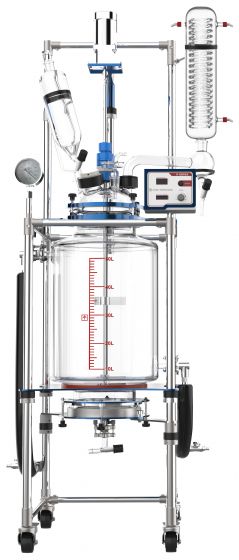

The Ai jacketed filter glass reactors are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment, jacketed filter reactors can be used for single or multi-step reactions and filtrations in the same vessel, production and process scale peptide synthesis. Filter base eliminates material transfers and significantly reduces material losses.
Each Ai reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.

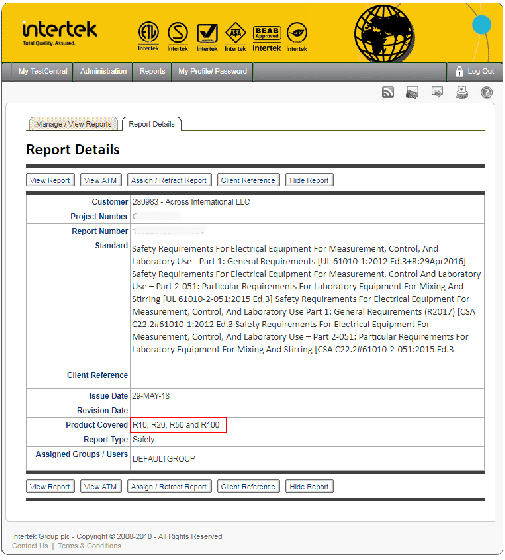

ETL tested to UL and CSA standards, CE (optional)
Filter reactors for single or multi-step reactions and filtrations in the same vessel, they also eliminate material transfers and reduce losses.

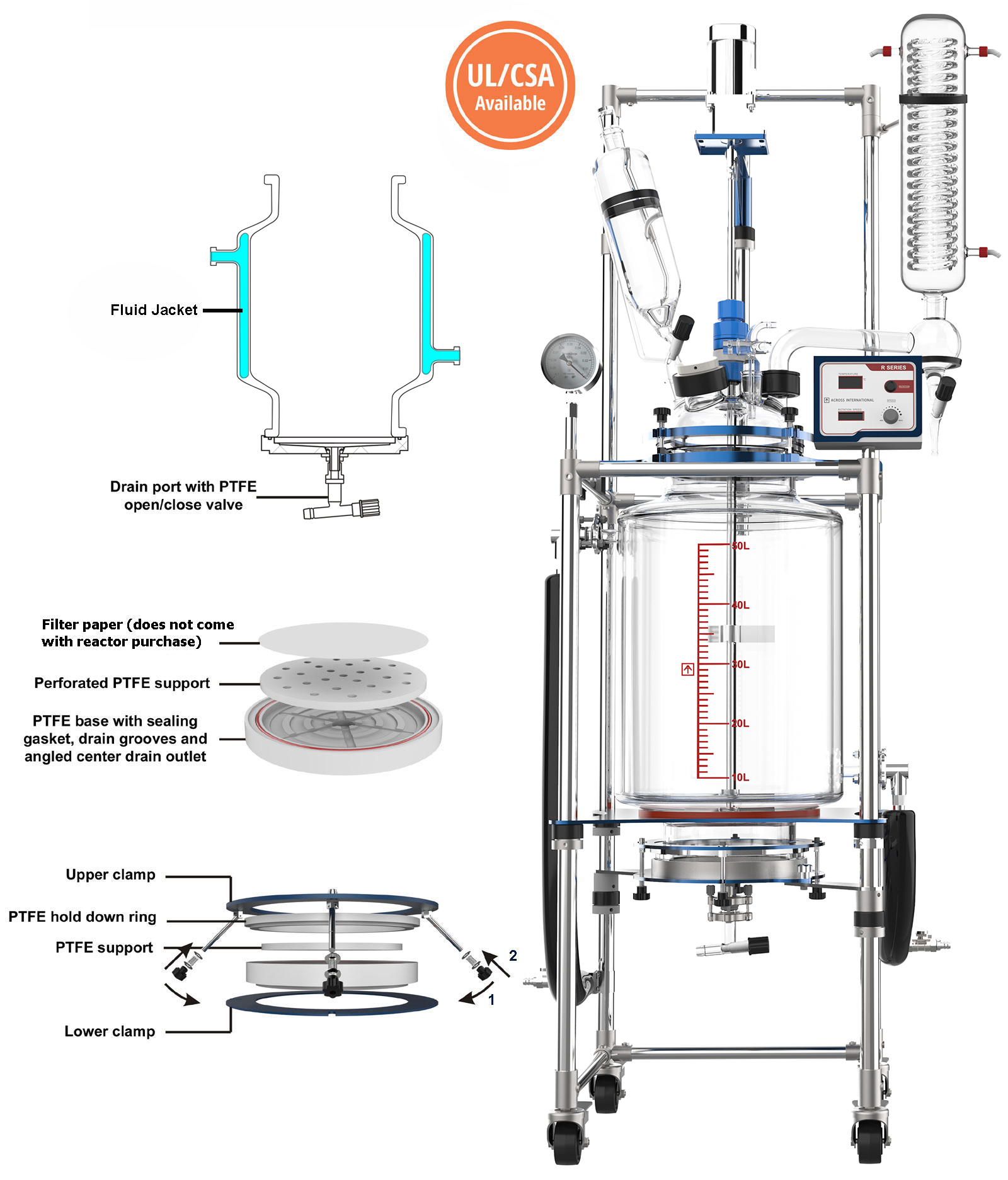

Modular filter assembly can be easily detached for cleaning and filter paper replacement.
Center downward drain port with angled drain grooves allows easy material drainage.
All PTFE filter components ensure clean and long lifespan operations.
Solvent-resistant PTFE on all sealing components ensures long time durability and operation.
All glassware is hand-made from food grade high borosilicate glass that is heat/cold/corrosion-resistant.
Adjustable stirring rate provides great torque or high speed.
Patented PTFE stirring rod bearing for reliable and quiet operation.
Optional multi-layer stirring blades for optimal reaction results.
Wide range of temperature operations, from -110F to 400F.
Large condenser cooling surface for exceptional condensation performance.
Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials.
Easily visual operation with digital speed and temperature displays.
Heavy duty stainless steel supporting framework with lockable casters for mobility and stability. (whole support and glass vessel shipped pre-assembled)
One year warranty and lifetime US-based parts, service, and support.
Your safety is important to us! Please use caution when operating. Users of glass reaction equipment must take all necessary precautions to avoid contact with rotating parts, particularly entanglement of loose clothing, hair, necklaces, or other jewelry. Under these circumstances, the winding action of the rotating parts can draw the user(s) into the apparatus, resulting in breakage of glassware, burns, and/or chemical exposure. Extra caution must also be taken when operating with air-reactive materials, especially under vacuum. A leak can draw air into the apparatus and cause a violent reaction to occur.
220-240V 50/60Hz, 1-Phase
Reaction glass vessel capacity
2.6 gallons (10L)
5.3 gallons (20L)
13 gallons (50L)
26 gallons (100L)
Cooling/heating jacket capacity
0.8 gallon (3L)
1.6 gallons (6L)
4.2 gallons (16L)
8 gallons (30L)
OD of filter plate: 9 inches Size of holes in the perforated PTFE support: 8 mm
High borosilicate glass 3.3
Digital controller with variable frequency drive Rotation speed: 50 to 500 rpm
Maximum jacket pressure
4.4 psi or 0.03 MPa
ID of the bottom drain port flange: 14 mm
Style: impeller Material: 304 stainless steel with PTFE liner
