Ai C30 series recirculating chillers are the true thermostatic control laboratory chiller, these closed laboratory chillers are ideal for applications such as cooling rotary evaporators, analytical instrumentation, laser etching, ICP, vacuum systems, plasma etching and jacketed reactors. This system can also be used as a replacement to tap water cooling in laboratory applications.
Ai C30 are compressor-based recirculating chillers that offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while microprocessor PID controller gives you the ideal solution when you need precise temperature control or cooling below ambient temperature.
IMPORTANT! -30°C ULTIMATE TEMPERATURES ARE TESTED UNDER EMPTY LOAD CONDITION (NO ROTARY EVAPORATORS OR JACKETED REACTORS ATTACHED).
C30 circulating chiller features
- UL 61010-1 and CSA C22.2 certified (optional)
- No dry ice or liquid nitrogen needed
- Advanced PID digital temp controller
- Built-in chilling fluid filter protects the recirculating pump and prevent blockage
- All steel construction for durability
- Cost saving as the water consumption is completely eliminated
- Built-in casters for mobility
- Plug and play, no assembly required
| Specification | C30-10-5L | C30-17-10L |
| Electrical requirements | 220–240 V, 50/60 Hz, 1-phase, 1,100 W | 220–240 V, 50/60 Hz, 1-phase, 1,200 W |
| Compressor | Make: GREE Power: 220–240 V, 50/60 Hz, 1-phase Quantity: 1 Refrigerant: R410A | Make: Panasonic Power: 220–240 V, 50/60 Hz, 1-phase Quantity: 1 Refrigerant: R410A |
| Cooling capacity (ambient: 25°C) | 0°C: 1,250 W −10°C: 800 W −20°C: 300 W −30°C: 150 W | 0°C: 1,750 W −10°C: 1,100 W −20°C: 700 W −30°C: 300 W |
| Reservoir | Capacity: 10 L Material: Type 304 stainless steel Connections: 2 × 1/2 in (13 mm) hose barbs | Capacity: 17 L Material: Type 304 stainless steel Connections: 2 × 3/8 in hose barbs |
| Recirculating pump | Output: 100 W Flow rate: 20 L/min (5.3 gal/min) Maximum head: 6 m (20 ft) Pressure: 5.8 psi / 39.989 kPa | Type: Centrifugal Output: 100 W Flow rate: 20 L/min Maximum head: 6 m Pressure: 5.8 psi |
| Radiator | — | — |
| Coolant outlet pressure | Displayed on the built-in mechanical pressure gauge | Displayed on the built-in mechanical pressure gauge |
| Temperature controller | Operating range: ambient to −30°C Accuracy: ±2°C Type: Digital microprocessor, PID controlled Display unit: °C | Operating range: ambient to −30°C Accuracy: ±2°C Type: Digital microprocessor, PID controlled Display unit: °C |
| Temperature sensor | Pt100 | Pt100 |
| Housing | Powder-coated Type 42 stainless steel | Powder-coated Type 42 stainless steel |
| Recommended coolant | At 10°C or higher: purified water Below 10°C: contact Across International | At 10°C or higher: distilled water Between 10°C and −30°C: 50% ethylene glycol + 50% distilled water |
| Built-in swivel casters | 4 | 4 |
| Safety | Compressor over-temperature protection Short-circuit and ground protection Over-current protection | Compressor over-temperature protection Short-circuit and ground protection Over-current protection |
| Unit dimensions (W × D × H) | 670 × 430 × 690 mm | 670 × 460 × 780 mm |
| Shipping dimensions (W × D × H) | 810 × 560 × 910 mm | 810 × 580 × 1,020 mm |
| Unit weight | 73 kg | 80 kg |
| Shipping weight | — | — |
| Recommended for | Ai SolventVap 5 L rotary evaporators | Ai SolventVap 10 L rotary evaporators |
| Warranty | — | — |
| Compliance | — | — |

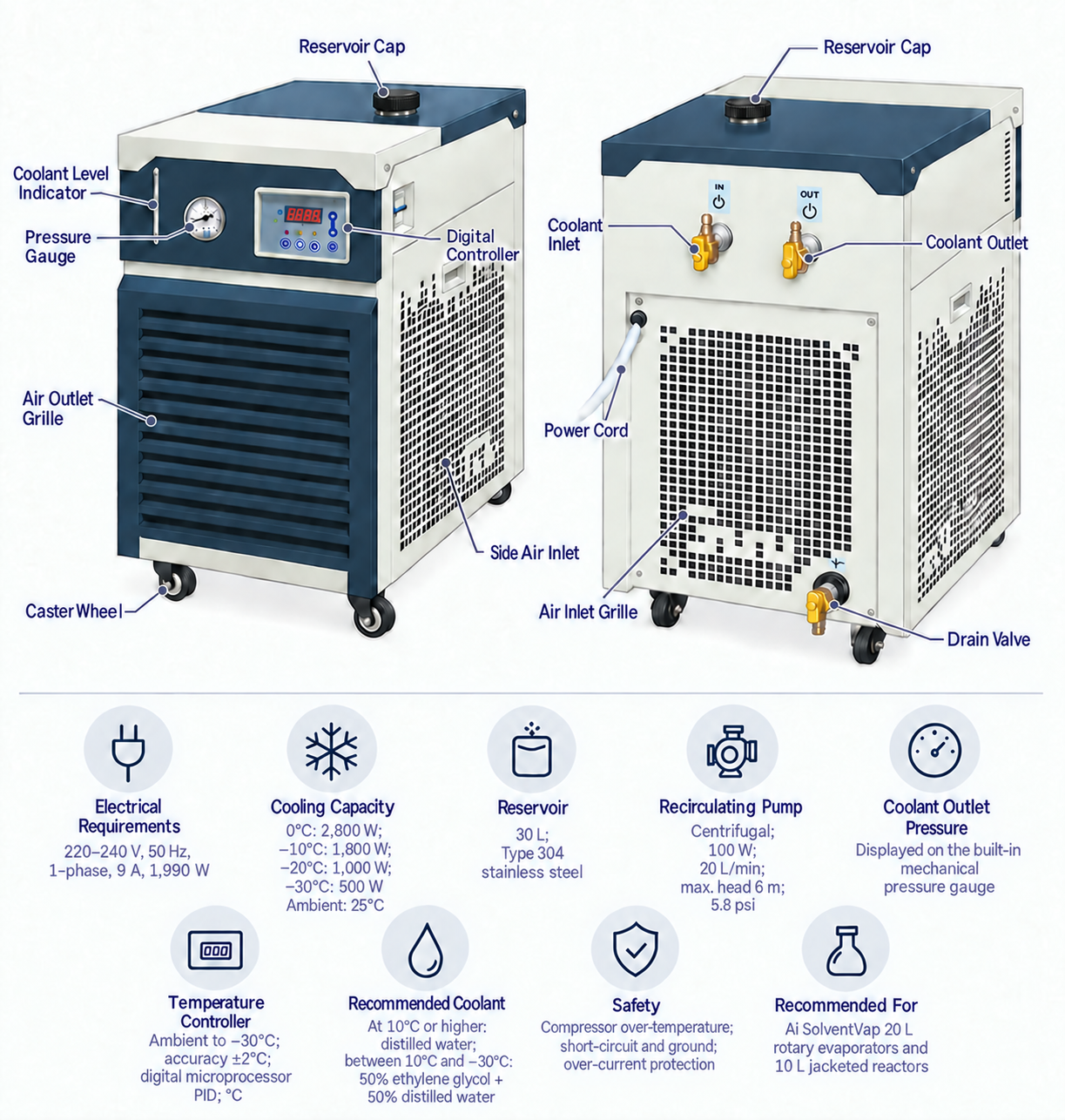

| Specification | C30-30-20L | C30-40-50L |
| Electrical requirements | 220–240 V, 50 Hz, 1-phase, 9 A, 1,990 W | 380–415 V, 50 Hz, 3-phase, 5.5 A, 3,960 W |
| Compressor | Make: Panasonic Power: 208–230 V, 50 Hz, 1-phase Quantity: 1 Refrigerant: R410A | Make: KK Power: 380–415 V, 50 Hz, 3-phase Quantity: 1 Refrigerant: R404A (3.2 kg) |
| Cooling capacity (ambient: 25°C) | 0°C: 2,800 W −10°C: 1,800 W −20°C: 1,000 W −30°C: 500 W | 0°C: 5,000 W −10°C: 3,000 W −20°C: 1,800 W −25°C: 1,000 W |
| Reservoir | Capacity: 30 L Internal dimensions: 580 × 380 × 180 mm (W × D × H) Material: Type 304 stainless steel Connections: 2 × 3/8 in hose barbs | Capacity: 40 L Internal dimensions: 440 × 440 × 240 mm Material: Type 304 stainless steel Chilling-fluid connection: 3/4 in NPT Drain port: 1/2 in NPT Overflow port: 3/8 in hose barb |
| Recirculating pump | Type: Centrifugal Output: 100 W Flow rate: 20 L/min Maximum head: 6 m Pressure: 5.8 psi | Type: Centrifugal Model: 25PLBR30-10 Flow rate: 30 L/min Power: 280 W Pressure: 1 bar |
| Radiator | — | Fan motor Make: Boyoung Model: YWF4E-400 Power: 380–415 V, 50 Hz, 3-phase, 300 W Speed: 1,550 rpm Airflow: 4,240 m³/h Maintenance: Clean fins with a fin comb every 3 months |
| Coolant outlet pressure | Displayed on the built-in mechanical pressure gauge | Displayed on the built-in mechanical pressure gauge |
| Temperature controller | Operating range: ambient to −30°C Accuracy: ±2°C Type: Digital microprocessor, PID controlled Display unit: °C | Operating range: −30°C to ambient −5°C Accuracy: ±2°C Type: Digital microprocessor, PID controlled Display unit: °C |
| Temperature sensor | Pt100 | Pt100 |
| Housing | Powder-coated Type 42 stainless steel | Powder-coated Type 42 stainless steel |
| Recommended coolant | At 10°C or higher: distilled water Between 10°C and −30°C: 50% ethylene glycol + 50% distilled water | At 10°C or higher: distilled water Between 10°C and −30°C: 50% ethylene glycol + 50% distilled water |
| Built-in swivel casters | 4 | 4 |
| Safety | Compressor over-temperature protection Short-circuit and ground protection Over-current protection | Compressor overheat protection Short-circuit and ground protection Over-current protection Over-voltage protection |
| Unit dimensions (W × D × H) | 760 × 500 × 860 mm | 1,020 × 640 × 1,040 mm |
| Shipping dimensions (W × D × H) | 970 × 640 × 1,140 mm | 1,170 × 760 × 1,300 mm |
| Unit weight | 100 kg | 166 kg |
| Shipping weight | — | 218 kg |
| Recommended for | Ai SolventVap 20 L rotary evaporators and 10 L jacketed reactors | Ai SolventVap 50 L rotary evaporators and 20 L jacketed reactors |
| Warranty | 1 year | 1 year |
| Compliance | CSA C22.2 No. 61010-1:2012, Ed. 3 | CSA C22.2 No. 61010-1:2012, Ed. 3 |
