Ai 2L Single Jacketed Glass Reactor Systems

 Ai R2 2L Compact Benchtop Glass Reactor

The Ai R2 2L Single Glass Reactor is a compact, reliable, and versatile benchtop reaction system designed for laboratory-scale synthesis, research, formulation, and process development.

Featuring a 2L high-borosilicate glass jacketed vessel, the R2 provides excellent chemical resistance and clear visibility of the reaction process. Its compact footprint makes it particularly suitable for laboratories where bench space is limited, while still providing the essential functions of a full jacketed reactor system.

The reactor features adjustable mechanical stirring, a constant-pressure addition funnel, and an efficient glass condenser, allowing controlled mixing, reagent addition, reflux, and solvent recovery. When connected to a suitable heating/cooling circulator and vacuum pump, the R2 can provide a controlled temperature and vacuum environment for a wide range of small-scale laboratory processes.

Built with durable borosilicate glass, chemical-resistant PTFE components, and a stainless-steel reinforced PTFE agitator, the R2 is designed for dependable day-to-day laboratory operation and easy process observation.

Features

• Compact 2L benchtop design – provides full jacketed reactor functionality while occupying minimal laboratory space.

• Reliable laboratory performance – designed for routine synthesis, R&D, formulation, and small-batch processing.

• High-borosilicate glass reactor vessel – offers excellent chemical resistance, thermal performance, and clear process visibility.

• Jacketed vessel design – connects to an external heating or cooling circulator for controlled reaction temperatures.

• Adjustable mechanical stirring – provides flexible mixing speeds for different reaction conditions and material viscosities.

• PTFE agitator with stainless-steel reinforcement – combines excellent chemical resistance with mechanical durability.

• Constant-pressure addition funnel – allows reagents and liquids to be introduced gradually at a controlled rate.

• Efficient glass condenser – large cooling surface supports effective reflux, condensation, and solvent recovery.

• Vacuum-capable operation – suitable for reduced-pressure applications when paired with an appropriate vacuum pump.

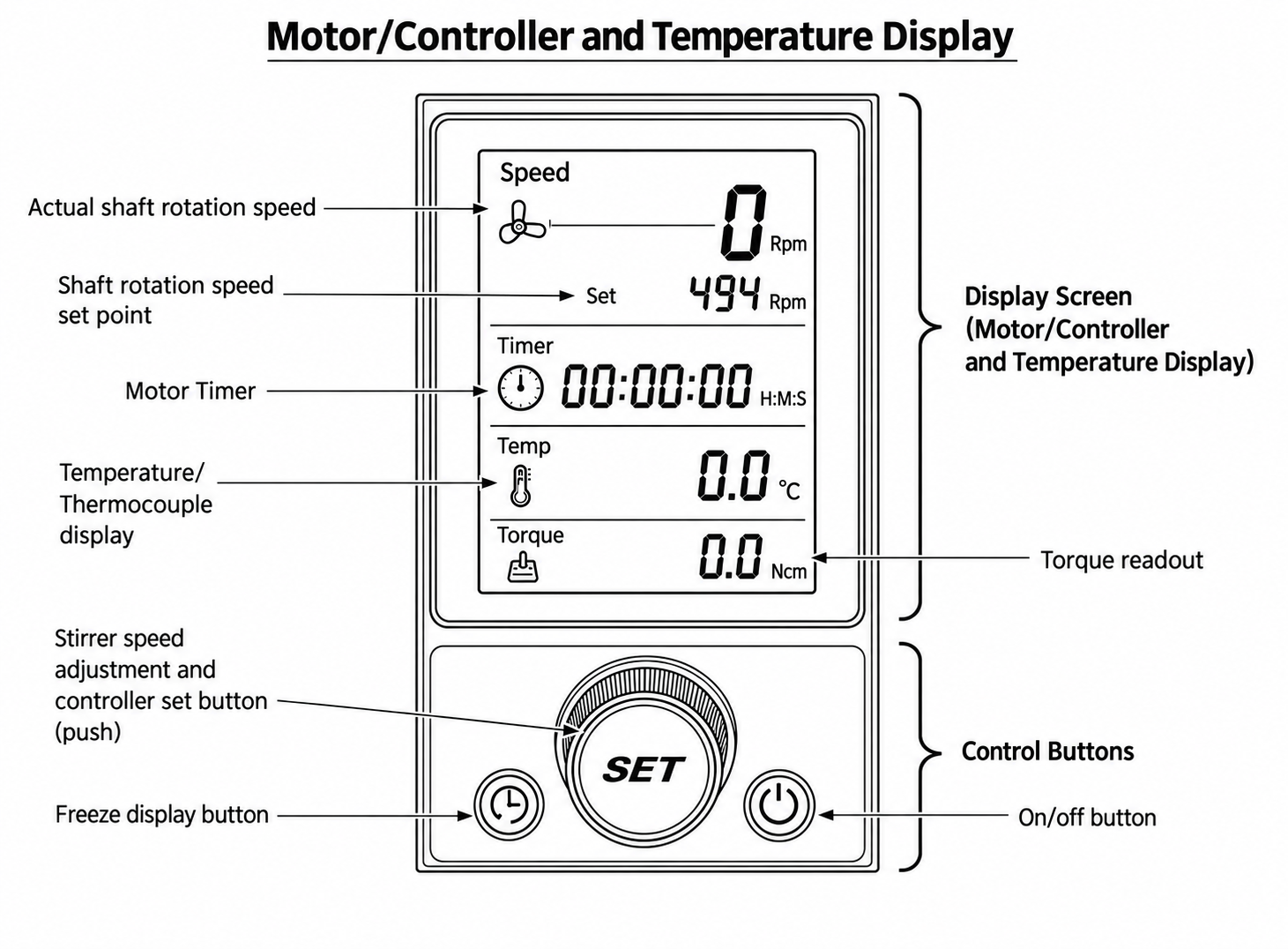

• Digital speed and temperature display – provides convenient real-time monitoring during operation.

• Chemical-resistant PTFE sealing components – designed for durability and compatibility with a wide range of laboratory chemicals and solvents.

• Easy to operate and maintain – a straightforward reactor configuration well suited to everyday laboratory use.

• AU-based service and support – backed by a one-year warranty with local parts, technical assistance, and after-sales support.

Typical Applications

Ideal for chemical synthesis, pharmaceutical research, material development, formulation, crystallisation, extraction, reflux, solvent recovery, mixing, and general laboratory R&D.

The Ai R2 is particularly suited to universities, research laboratories, start-ups, and industrial R&D facilities looking for a compact and dependable 2L glass reactor for small-scale reaction work.

Your safety is important to us! Please use caution when operating. Users of glass reaction equipment must take all necessary precautions to avoid contact with rotating parts, particularly the entanglement of loose clothing, hair, necklaces, or other jewelry. Under these circumstances, the winding action of the rotating parts can draw the user(s) into the apparatus, resulting in the breakage of glassware, burns, and/or chemical exposure. Extra caution must also be taken when operating with air-reactive materials, especially under vacuum. A leak can draw air into the apparatus and cause a violent reaction to occur.
