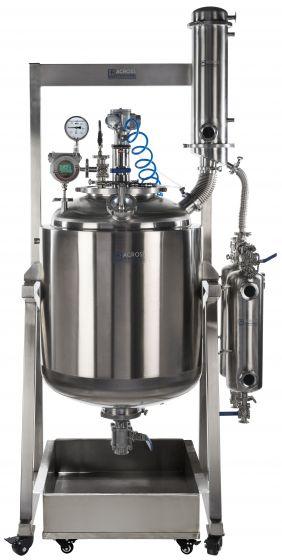

Ai Dual-Jacketed 200L 316L-Grade Stainless Steel Reactor

A$ 34,990.00 A$ 34,990.00 34990.0 AUD

A$ 34,990.00

Excl. GST
Add to cart

Terms and Conditions

Please contact our friendly sales team for urgent orders.
Contact Us

SKU # : SR200

Ai 316L Grade Stainless Steel Reactor Features

  • Dual jacketed. Sealed outer insulation jacket provides best temperature performance inside chamber
  • All wetted parts on main vessel and lid built with pharmaceutical grade 316L SST
  • Shell and tube heat exchanger with 70 tubes for the best condensing results

  • ElectroPolished internal chamber

  • Detachable condenser and collection tanks
  • Dual collection tanks with big sight glass allows you to drain without breaking vacuum
  • High drain port clearance for easy draining or added filtration
  • Large ports (top 12" bottom 6") allows easy chamber cleaning
  • Top placed vacuum port on condenser provides better flow and condensing results
  • No messy cable, with space saving integrated stirring motor controller
  • Heavy-duty stainless-steel frame with swivel casters
  • Built-in flashlight gives you a clear view inside the chamber
  • Positive/negative pressure gauge
  • Matte finish stainless steel
  • Customizable lid for various application
  • Tons of tri clamps adapters available, e.g. tri clamp to hose barb/KF25/NPT
  • Choice of bolted or pin clamp for various pressure applications
  • Flexible bellow condenser connection reduces shipping damage
  • Electric motor and controller model is ETL certified to UL and CSA standards
  • Peer reviewed model (pneumatic motor and controller) is approved to be used with Acetone, Ethanol, Heptane, Hexane, Isopropyl Alcohol, Methanol, and Pentane.





CAUTION!

  • Never fill circulated heaters or chillers with water, always use Ai or manufacturer's recommended thermal fluid
  • Always leave ample fluid space in heater reservoir to allow fluid heat expansion
  • Always keep system vacuum passage or drain valve open when heating up circulation jackets
  • Always make sure your vacuum pumps and diffusion pump fluid is clean and within limits


Specification SR200
Electric stirring motor 220–240 V, 50/60 Hz, single phase, 200 W, 1/4 HP
Maximum rotation speed: 450 rpm (±8%)
Starting torque: 3.0 N·m
Rated torque: 1.54 N·m
Built-in gearbox ratio: 3:1 to 180:1
Controller: Delta, UL listed
Pneumatic stirring motor Power: 1/4 HP
Maximum rotation speed: 450 rpm (±8%)
Compressed air pressure: 30–80 psi (0.2–0.55 MPa)
Working temperature: −10°C to +70°C
For continuous operation: set speed to 80% of maximum rpm
Pneumatic motor lubrication Motor lubricant: Daphne Eponex EP-No. 1
Check, replenish or replace every 500 hours
Air lubrication Type: JIS K2213-1 (ISO VG32)
Recommended products: Shell Vitrea Oil 32, JOMO Turbine 32, COSMO Turbine 32
Lubrication rate: 2–3 drops per minute
Pneumatic motor operating precautions Disconnect the compressed air supply when not in use, unattended or overnight.
Do not run the motor unloaded.
Set the air adjuster to minimum for the initial run. Check that the motor operates correctly before increasing airflow.
Stop the motor and disconnect the air supply before inspection. Do not inspect while the motor is running.
Keep the exhaust port clear of debris and blockages.
Check the air lubricant and drain water from the air filter every 2–3 days.
Port configuration Lid: 150 mm tri-clamp (nominal 6″)
Center motor port: 75 mm tri-clamp (nominal 3″)
Drain port: 150 mm tri-clamp (nominal 6″)
Drain port on/off valve: 50 mm tri-clamp (nominal 2″)
Vacuum port: 40 mm tri-clamp (nominal 1.5″)
Condenser recirculating fluid port: 15 mm female NPT (nominal 1/2″)
Vessel jacket recirculating fluid port: 25 mm female NPT (nominal 1″)
50 L / 100 L collection tank — standard lid 150 mm tri-clamp lid (nominal 6″), with 4 × 40 mm tri-clamp ports (nominal 1.5″)
50 L / 100 L collection tank — additional lid 150 mm tri-clamp lid (nominal 6″), with:
2 × 15 mm FNPT ports with dip tubes (nominal 1/2″)
1 × 15 mm FNPT port (nominal 1/2″)
1 × 5 mm FNPT port (nominal 1/4″)
1 × 50 mm tri-clamp port (nominal 2″)
50 L / 100 L collection tank — other ports Top of tank: 2 × 40 mm tri-clamp ports with sight glasses (nominal 1.5″)
Drain port: 1 × 40 mm tri-clamp port (nominal 1.5″)
Main vessel Volume: 200 L
Material: 316L stainless steel
Interior finish: Electropolished
Agitator Structure: Three-blade, dual-layer propeller (standard)
Style: Quick-change
Material: 316L stainless steel
Detachable length: 710 mm
Center fluid jacket Volume: 35 L
Material: 304 stainless steel
Outer insulation jacket Sealed
Material: 304 stainless steel
Collection tank Option 1: 2 × 10 L, 316L stainless steel, with manifold
Option 2: 1 × 50 L, 304 stainless steel, with dolly; 395 mm diameter × 595 mm height; 760 mm height with dolly
Option 3: 1 × 100 L, 304 stainless steel, with dolly; 395 mm diameter × 1,090 mm height; 1,255 mm height with dolly
Material All wetted parts on the main reactor body: 316L stainless steel
Remaining reactor components: 304 stainless steel
Main condenser Style: Shell-and-tube heat exchanger
Number of tubes: 70
Condensing area: 0.89 m²
Pressure Ultimate vacuum: 1 Torr
Temperature range −55°C to +250°C (−67°F to +482°F)
Temperature sensor/display Standard: BOOST.TTA.0101, −200°C to +480°C, 50.5 clamp
Explosion-proof: BOOST.TTA.0102, −200°C to +480°C, 50.5 clamp
Sealing gasket Food-grade Viton
Main mounting frame Heavy-duty 50 × 50 mm 304 stainless steel frame, mounted on four casters
Drain port ground clearance Drain port: 495 mm
Drain valve: 355 mm
Unit / shipping weight 259 kg / 404 kg
Unit / shipping dimensions, W × D × H 1,090 × 860 × 2,290 mm
Compliance RCM
ETL tested to UL and CSA standards
C1D1 peer review by PSI (optional)
