Name: Ai -30°C 10L Capacity 20L/Min Digital Recirculating Chiller
SKU: C30-10-5L
Price: 5790.0 AUD
Availability: InStock

Ai C30 series recirculating chillers are the true thermostatic control laboratory chiller, these closed laboratory chillers are ideal for applications such as cooling rotary evaporators, analytical instrumentation, laser etching, ICP, vacuum systems, plasma etching and jacketed reactors. This system can also be used as a replacement to tap water cooling in laboratory applications.

Ai C30 are compressor-based recirculating chillers that offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while microprocessor PID controller gives you the ideal solution when you need precise temperature control or cooling below ambient temperature.

C30 circulating chiller features

No dry ice or liquid nitrogen needed
Advanced PID digital temp controller
Built-in chilling fluid filter protects the recirculating pump and prevent blockage
All steel construction for durability
Cost saving as the water consumption is completely eliminated
Built-in casters for mobility
Plug and play, no assembly required

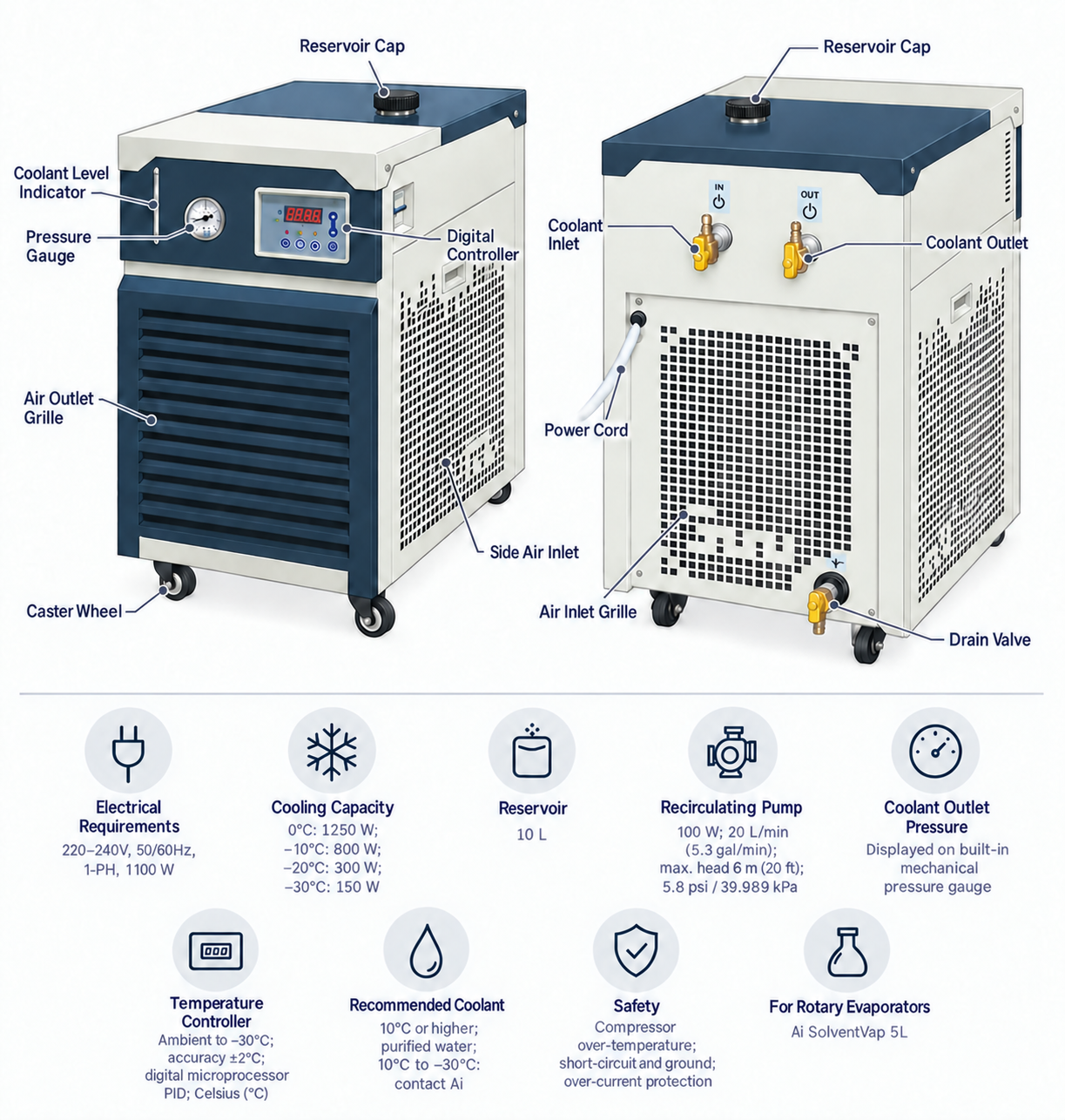

Specification	C30-10-5L	C30-17-10L
Electrical requirements	220–240 V, 50/60 Hz, 1-phase, 1,100 W	220–240 V, 50/60 Hz, 1-phase, 1,200 W
Compressor	Make: GREE Power: 220–240 V, 50/60 Hz, 1-phase Quantity: 1 Refrigerant: R410A	Make: Panasonic Power: 220–240 V, 50/60 Hz, 1-phase Quantity: 1 Refrigerant: R410A
Cooling capacity (ambient: 25°C)	0°C: 1,250 W −10°C: 800 W −20°C: 300 W −30°C: 150 W	0°C: 1,750 W −10°C: 1,100 W −20°C: 700 W −30°C: 300 W
Reservoir	Capacity: 10 L Material: Type 304 stainless steel Connections: 2 × 1/2 in (13 mm) hose barbs	Capacity: 17 L Material: Type 304 stainless steel Connections: 2 × 3/8 in hose barbs
Recirculating pump	Output: 100 W Flow rate: 20 L/min (5.3 gal/min) Maximum head: 6 m (20 ft) Pressure: 5.8 psi / 39.989 kPa	Type: Centrifugal Output: 100 W Flow rate: 20 L/min Maximum head: 6 m Pressure: 5.8 psi
Radiator	—	—
Coolant outlet pressure	Displayed on the built-in mechanical pressure gauge	Displayed on the built-in mechanical pressure gauge
Temperature controller	Operating range: ambient to −30°C Accuracy: ±2°C Type: Digital microprocessor, PID controlled Display unit: °C	Operating range: ambient to −30°C Accuracy: ±2°C Type: Digital microprocessor, PID controlled Display unit: °C
Temperature sensor	Pt100	Pt100
Housing	Powder-coated Type 42 stainless steel	Powder-coated Type 42 stainless steel
Recommended coolant	At 10°C or higher: purified water Below 10°C: contact Across International	At 10°C or higher: distilled water Between 10°C and −30°C: 50% ethylene glycol + 50% distilled water
Built-in swivel casters	4	4
Safety	Compressor over-temperature protection Short-circuit and ground protection Over-current protection	Compressor over-temperature protection Short-circuit and ground protection Over-current protection
Unit dimensions (W × D × H)	670 × 430 × 690 mm	670 × 460 × 780 mm
Shipping dimensions (W × D × H)	810 × 560 × 910 mm	810 × 580 × 1,020 mm
Unit weight	73 kg	80 kg
Shipping weight	—	—
Recommended for	Ai SolventVap 5 L rotary evaporators	Ai SolventVap 10 L rotary evaporators
Warranty	—	—
Compliance	—	—

Specification	C30-30-20L	C30-40-50L
Electrical requirements	220–240 V, 50 Hz, 1-phase, 9 A, 1,990 W	380–415 V, 50 Hz, 3-phase, 5.5 A, 3,960 W
Compressor	Make: Panasonic Power: 208–230 V, 50 Hz, 1-phase Quantity: 1 Refrigerant: R410A	Make: KK Power: 380–415 V, 50 Hz, 3-phase Quantity: 1 Refrigerant: R404A (3.2 kg)
Cooling capacity (ambient: 25°C)	0°C: 2,800 W −10°C: 1,800 W −20°C: 1,000 W −30°C: 500 W	0°C: 5,000 W −10°C: 3,000 W −20°C: 1,800 W −25°C: 1,000 W
Reservoir	Capacity: 30 L Internal dimensions: 580 × 380 × 180 mm (W × D × H) Material: Type 304 stainless steel Connections: 2 × 3/8 in hose barbs	Capacity: 40 L Internal dimensions: 440 × 440 × 240 mm Material: Type 304 stainless steel Chilling-fluid connection: 3/4 in NPT Drain port: 1/2 in NPT Overflow port: 3/8 in hose barb
Recirculating pump	Type: Centrifugal Output: 100 W Flow rate: 20 L/min Maximum head: 6 m Pressure: 5.8 psi	Type: Centrifugal Model: 25PLBR30-10 Flow rate: 30 L/min Power: 280 W Pressure: 1 bar
Radiator	—	Fan motor Make: Boyoung Model: YWF4E-400 Power: 380–415 V, 50 Hz, 3-phase, 300 W Speed: 1,550 rpm Airflow: 4,240 m³/h Maintenance: Clean fins with a fin comb every 3 months
Coolant outlet pressure	Displayed on the built-in mechanical pressure gauge	Displayed on the built-in mechanical pressure gauge
Temperature controller	Operating range: ambient to −30°C Accuracy: ±2°C Type: Digital microprocessor, PID controlled Display unit: °C	Operating range: −30°C to ambient −5°C Accuracy: ±2°C Type: Digital microprocessor, PID controlled Display unit: °C
Temperature sensor	Pt100	Pt100
Housing	Powder-coated Type 42 stainless steel	Powder-coated Type 42 stainless steel
Recommended coolant	At 10°C or higher: distilled water Between 10°C and −30°C: 50% ethylene glycol + 50% distilled water	At 10°C or higher: distilled water Between 10°C and −30°C: 50% ethylene glycol + 50% distilled water
Built-in swivel casters	4	4
Safety	Compressor over-temperature protection Short-circuit and ground protection Over-current protection	Compressor overheat protection Short-circuit and ground protection Over-current protection Over-voltage protection
Unit dimensions (W × D × H)	760 × 500 × 860 mm	1,020 × 640 × 1,040 mm
Shipping dimensions (W × D × H)	970 × 640 × 1,140 mm	1,170 × 760 × 1,300 mm
Unit weight	100 kg	166 kg
Shipping weight	—	218 kg
Recommended for	Ai SolventVap 20 L rotary evaporators and 10 L jacketed reactors	Ai SolventVap 50 L rotary evaporators and 20 L jacketed reactors
Warranty	1 year	1 year
Compliance	CSA C22.2 No. 61010-1:2012, Ed. 3	CSA C22.2 No. 61010-1:2012, Ed. 3
