100mm Diameter ID Dry Pressing Die Set



A$ 2,890.00 A$ 2,797.65 2797.65 AUD

A$ 2,890.00

Excl. GST

    This combination does not exist.

    SKU # : SDS100

    Terms and Conditions

    A set of 100mm diameter (ID) hardened steel dry pressing die set for pellet presses, ready for you to make 100mm diameter cylinder-shape pellets.


    • Maximum Pressure:      250 metric tons
    • Rockwell Hardness:       Rc 62
    • Diameter (ID):              100 mm
    • Height:                         300 mm (assembled with handle and without sample)
    • Sleeve Height:              120 mm
    • Sleeve Diameter (OD):  150 mm
    • Weight:                        28 kg
    • Tolerance:                    0.01-0.02 mm (10-20 micron)
    • Die Material:                 Cr12 hardened carbon mold steel
    • Max sample fill height:   Not to exceed 1/3 of the sleeve height

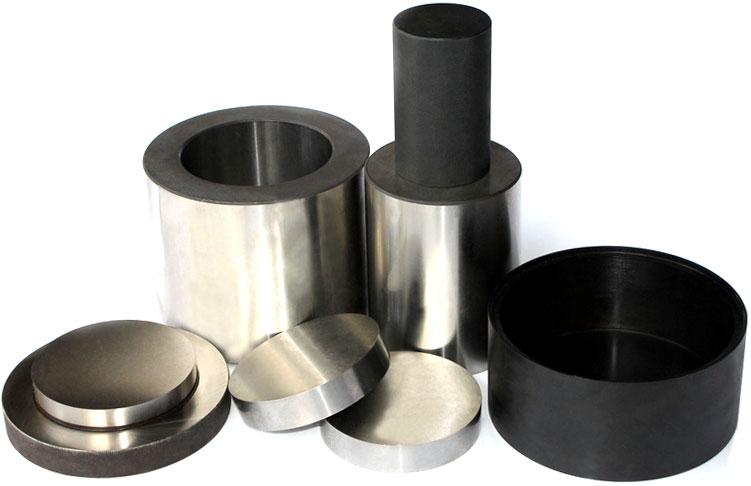

    Die set includes

    • Two 100mm diameter cylinder-shape core dies made of highly polished hardened steel
    • One steel sleeve
    • One steel support plate
    • One push rod with detachable handle
    • One pellet ejector


    • Always wear protection goggles and gear during operation
    • Clean the die set throughout with absolute ethyl alcohol and keep them in a dry box with silica gel after use to avoid rusting on the surface.
    • Never fill the die more than 1/3 its sleeve height with your sample and do not apply pressure beyond 250 tons. Across International is not responsible for any damage caused by misuse.
