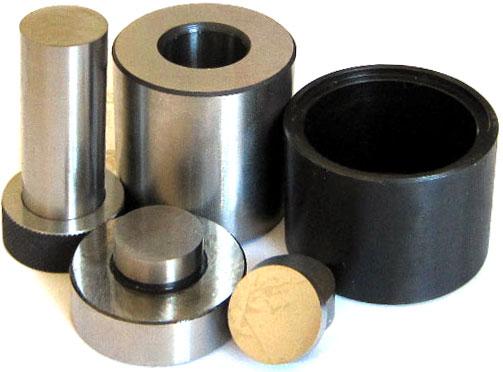

20mm Diameter ID Dry Pressing Die Set



A$ 659.00 A$ 659.00 659.0 AUD

A$ 659.00

Excl. GST

    This combination does not exist.

    SKU # : SDS20

    Terms and Conditions

    A set of 20mm diameter (ID) hardened steel dry pressing die set for pellet presses, ready for you to make 20mm diameter cylinder-shape pellets.




    • Maximum Pressure:      25 metric tons
    • Rockwell Hardness:       Rc 62
    • Diameter (ID):              20 mm
    • Height:                         94 mm (assembled without sample)
    • Sleeve Height:              46 mm
    • Sleeve Diameter (OD):  46 mm
    • Tolerance:                   0.01-0.02 mm (10-20 micron)
    • Material:
      • Core die & push rod:          W18Cr4V hardened carbon tool steel
      • Sleeve, ejector & support:  Cr12 hardened carbon tool steel
    • Max sample fill height:  Not to exceed 1/3 of the sleeve height

    Die set includes

    • Two 20mm ID cylinder-shape core dies
    • One steel sleeve
    • One steel support plate
    • One push rod
    • One pellet ejector


    • Always wear protection goggles during operation
    • Clean the die set throughout with absolute ethyl alcohol and keep them in a dry box with silica gel after use to avoid rusting on the surface.
    • Never fill the die more than 1/3 its sleeve height with your sample and do not apply pressure beyond 25 tons. Across International is not responsible for any damage caused by misuse.
