30mm Diameter ID Dry Pressing Die Set

https://www.acrossinternational.com.au/web/image/product.template/329/image_1920?unique=fd17ccb

SKU# SDS30

A$ 1,099.00 A$ 1,099.00 1099.0 AUD

A$ 1,099.00

Excl. GST

    This combination does not exist.


    SKU # : SDS30

    Terms and Conditions


    A set of 30mm diameter (ID) hardened steel dry pressing die set for pellet presses, ready for you to make 30mm diameter cylinder-shape pellets.


    Specifications

    • Maximum Pressure:      40 tons
    • Rockwell Hardness:       Rc 62
    • Diameter (ID):              30 mm
    • Height:                        110 mm (assembled without sample)
    • Sleeve Height:              60 mm
    • Sleeve Diameter (OD):  48 mm
    • Max sample fill height:  Not to exceed 1/3 of the sleeve height
    • Material:
      • Core die & push rod:          W18Cr4V hardened carbon tool steel
      • Sleeve, ejector & support:  Cr12 hardened carbon tool steel
    • Tolerance:                   0.01-0.02 mm (10-20 micron)
    • Packing weight and diameter: 150x90x90 mm 2kg

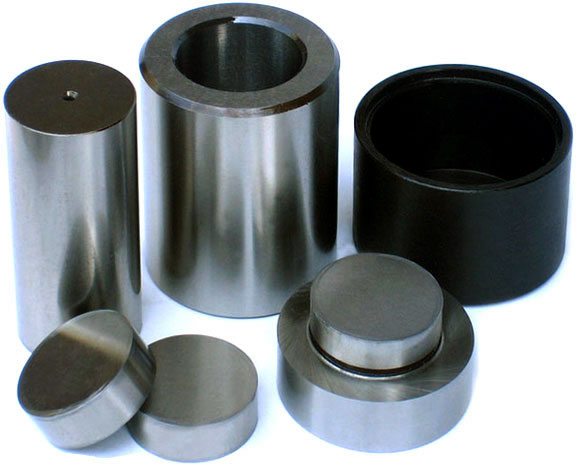

    Die set includes

    • Two 30mm diameter cylinder-shape core dies
    • One sleeve
    • One support base
    • One push rod
    • One pellet ejector

    Important

    • Always wear protection goggles during operation
    • Clean the die set throughout with absolute ethyl alcohol and keep them in a dry box with silica gel after use to avoid rusting on the surface.
    • Never fill the die more than 1/3 its sleeve height with your sample and do not apply pressure beyond 40 tons. Across International is not responsible for any damage caused by misuse.
