40mm ID Round Easy-Retrieve Dry Pressing Die Set

Specifications

• Maximum Pressure:                     45 metric tons

• Rockwell Hardness:                      Rc 62
• Diameter (ID):                             40 mm
• Height:                                       120 mm (assembled without sample)
• Sleeve Height:                             59 mm
• Sleeve Diameter (OD):                 79 mm

• Trapezoidal Sleeve OD (top):        40 mm
• Trapezoidal Sleeve OD (bottom):  52 mm

• Weight:                                      7.5 lb
• Tolerance:                                  0.01-0.02 mm (10-20 micron)
• Material:                                     Cr12 hardened carbon mold steel

• Max sample fill height:                 Not to exceed 2/3 of the sleeve height

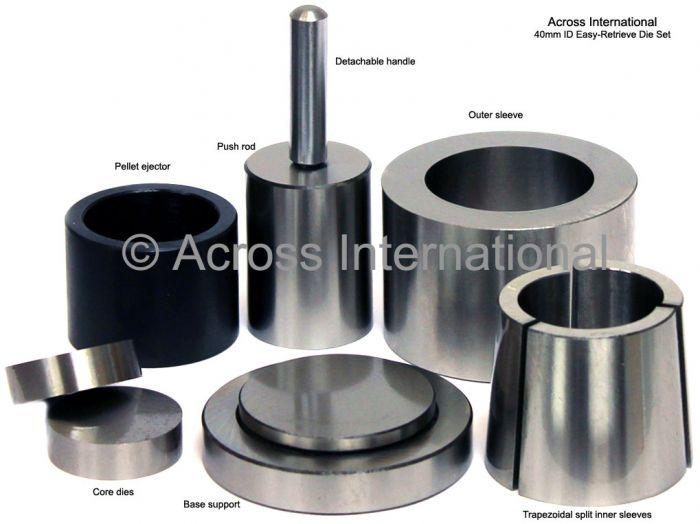

Die set includes

• Two 40mm diameter cylinder-shape core dies made of highly polished hardened steel
• One outer sleeve with trapezoidal inner wall
• Three trapezoidal inner sleeves
• One base suppor
• One push rod
• One pellet ejector

Important

• Always wear protection goggles during operation
• Clean the die set throughout with absolute ethyl alcohol and keep them in a dry box with silica gel after use to avoid rusting on the surface.
• Never fill the die more than 2/3 its sleeve height with your sample and do not apply pressure beyond 30 tons. Across International is not responsible for any damage caused by misuse.
