50mm Diameter ID Dry Pressing Die Set



A$ 1,299.00 A$ 1,299.00 1299.0 AUD

A$ 1,299.00

Excl. GST

    This combination does not exist.

    SKU # : SDS50

    Terms and Conditions

    A set of 50mm diameter (ID) hardened steel dry pressing die set for pellet presses, ready for you to make 50mm diameter cylinder-shape pellets.


    • Maximum Pressure:       100 metric tons
    • Rockwell Hardness:        Rc 62
    • Diameter (ID):               50 mm
    • Height:                         135 mm (assembled without sample)
    • Sleeve Height:               70 mm
    • Sleeve Diameter (OD):   78 mm
    • Core die thickness:        15mm
    • Tolerance:                    0.01-0.02 mm (10-20 micron)
    • Material:                       Cr12 hardened carbon tool steel
    • Max sample fill height:   Not to exceed 1/3 of the sleeve height

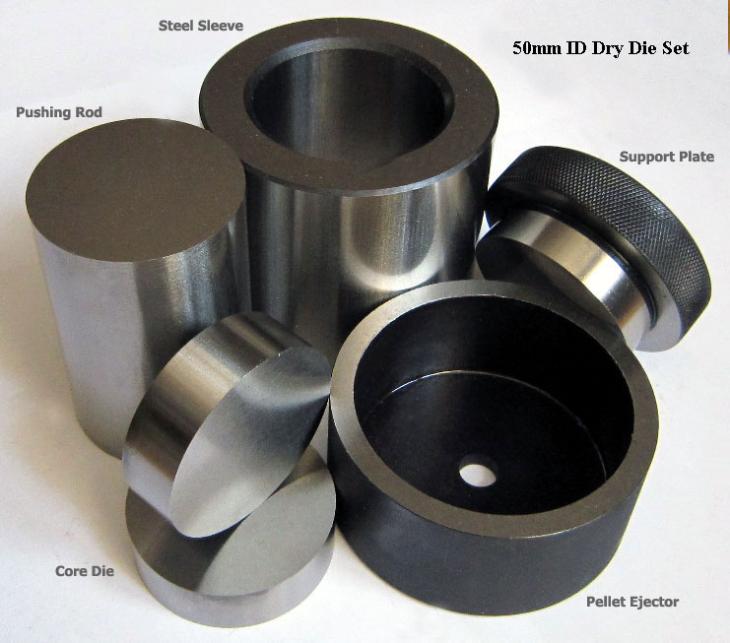

    Die set includes

    • Two 50mm ID cylinder-shape core dies made of highly polished hardened steel
    • One steel sleeve
    • One steel support plate
    • One push rod
    • One pellet ejector


    • Always wear protection goggles and gear during operation
    • Clean the die set throughout with absolute ethyl alcohol and keep them in a dry box with silica gel after use to avoid rusting on the surface.
    • Never fill the die more than 1/3 its sleeve height with your sample and do not apply pressure beyond 100 tons. Across International is not responsible for any damage caused by misuse.
