A set of 6mm diameter (ID) hardened steel dry vacuum pressing die set for pellet presses, ready for you to make 6mm diameter cylinder-shape pellets in a vacuum condition.

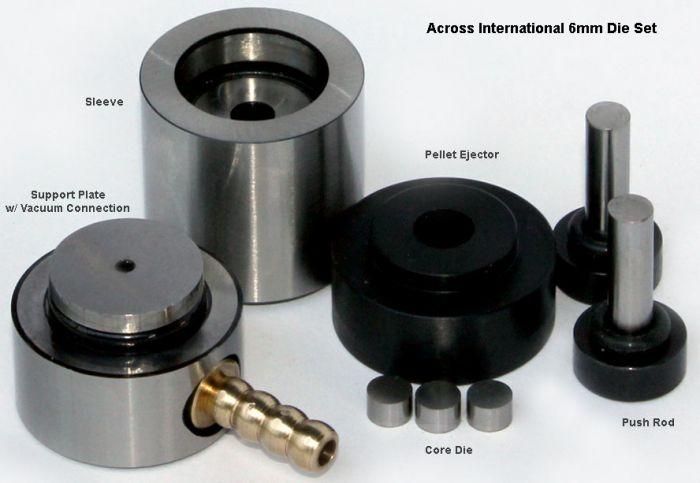

Die set includes
Three 6mm ID core dies made of highly polished hardened steel
One sleeve
One base with 1/4" hose barb vacuum connection
Two push rods
Silicon sealing o-rings
One pellet ejector
One transparent protection shield
Important
Always wear protection goggles and gear during operation
Clean the die set throughout with absolute ethyl alcohol and keep them in a dry box with silica gel after use to avoid rusting on the surface.
Never fill the die more than 1/3 its sleeve height with your sample and do not apply pressure beyond 4 tons. Across International is not responsible for any damage caused by misuse.
Specifications
Maximum Pressure: 4 tons
Rockwell Hardness: Rc 62
Diameter (ID): 6 mm
Height: 60 mm (assembled without sample)
Sleeve Height: 30 mm
Sleeve Diameter (OD): 30 mm
Tolerance: 0.01-0.02 mm (10-20 micron)
Material: W18Cr4V hardened carbon tool steel
Max sample fill height: Not to exceed 1/3 of the sleeve height
Die set includes
Three 6mm ID core dies made of highly polished hardened steel
One sleeve
One base with 1/4" hose barb vacuum connection
Two push rods
Silicon sealing o-rings
One pellet ejector
One transparent protection shield
Important
Always wear protection goggles and gear during operation
Clean the die set throughout with absolute ethyl alcohol and keep them in a dry box with silica gel after use to avoid rusting on the surface.
Never fill the die more than 1/3 its sleeve height with your sample and do not apply pressure beyond 4 tons. Across International is not responsible for any damage caused by misuse.
