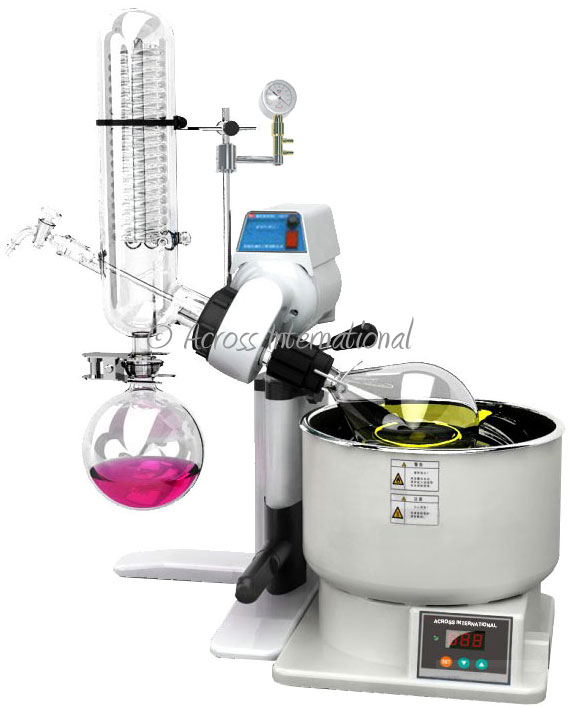

Ai SolventVap 2L (evaporating flask capacity) series rotary evaporators come with a modular heating bath, vertical glassware, and digital temperature/rotation control. Its optimized bath volume allows for rapid heat-up times. The condenser unit has specially designed glass tubes that utilize surface area extremely efficiently. That's why our SolventVap evaporators consistently deliver reliable and reproducible process results that are usually reserved for more costly systems. Another important aspect of the SolventVap is the safety features, which includes dry-run protection, water bath over-temperature shut-off protection, and fuse protection.
New electric evaporator flask lift, nonexposed water bath heater, and plexiglass bath cover, standard
Solvent-resistant PTFE and Viton gaskets ensuring long time operation.
Specialized motor with extremely compact, intermeshed worm and worm gear provides precise driving for very quiet, vibration-free operation.
Modular design (individual rotary and water bath modules) for easy future upgrades.
Easy multi-level manual lift with secure lock for the evaporating flask.
Easy, straight-forward visual operation with digital speed and temperature display.
PID temperature controller ensures accurate temperature control is maintained.
Your safety is important to us! Please use caution when operating. Users of glass reaction equipment must take all necessary precautions to avoid contact with rotating parts, particularly entanglement of loose clothing, hair, necklaces, or other jewelry. Under these circumstances, the winding action of the rotating parts can draw the user(s) into the apparatus, resulting in breakage of glassware, burns, and/or chemical exposure. Extra caution must also be taken when operating with air-reactive materials, especially under vacuum. A leak can draw air into the apparatus and cause a violent reaction to occur.
A rotary evaporator is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. The process of rotary evaporation is most often used to separate solvents with low boiling points, such a n-hexane or ethyl acetate, from compounds which are solid at room temperature and pressure. However, careful application also allows for the removal of a solvent from a sample containing a liquid compound, if there is minimal co-evaporation (azeotropic behavior) and a sufficient difference in boiling points at the chosen temperature and reduced pressure.
Example: The following table is a list of a variety of substances ordered by increasing vapor pressure (in absolute units).
Capacity: 0.5L, 1L or 2L Maximum load: Not to exceed 60% of the flask's capacity Rotation speed: 20 to 280 rpm Evaporating speed: 20 ml per minute Lifting: electric Max lifting distance: 4 inches (extendable to 10 inches)
Glassware: Vertical with dual-spiral glass tubing Chilling fluid connection: 3/8" hose barb x 2 Vacuum connection: 3/8" hose barb x 1 Condensing surface: 1,260 cm2 or 1.4 sq ft
5 to 95F
Temperature range: ambient to 95C Temperature controller: digital Capacity: 6.5 L Material: stainless steel Dimensions: 250 x 130 x 250 mm (WxDxH) Media: distilled water only Max. water level: not to exceed 1" from the top rim of the bath Number of heaters: one
Connection: 3/8" hose barb x 1 (on condenser) Sealing: PTFE + Viton gaskets Ultimate vacuum: < 3 torrs
Dry-run, over-temp shut-off, fuse protections
10 / 20 kg
560 x 320 x 660 mm / 660 x 530 x 480 mm (WxDxH)
One year warranty on unit except glassware and all sealing gaskets. Glassware may have minute blemishes that will not affect the function. If you believe there are imperfections on your glassware, please contact us. We check all our inventory and make sure no defective glassware is sent to our customers.
ETL tested to UL and CSA standards
Evaporator body with electric lift
Vertical condenser with 2 chilling water ports and 1 vacuum port, glass
2L pear shaped evaporating flask, glass (choose based on volume of material to load)
0.26G/1L round shaped receiving flask, glass
Glass vapor duct with seal
Material feeding tube with valve, glass
PTFE vacuum sealing kit
Condenser cap kit
Glass shaft cap and evaporator flask quick-release
Condenser support and bracket
Receiving flask ball joint clamp
3-prong 110V US power cord for evaporator
Mechanical vacuum gauge
