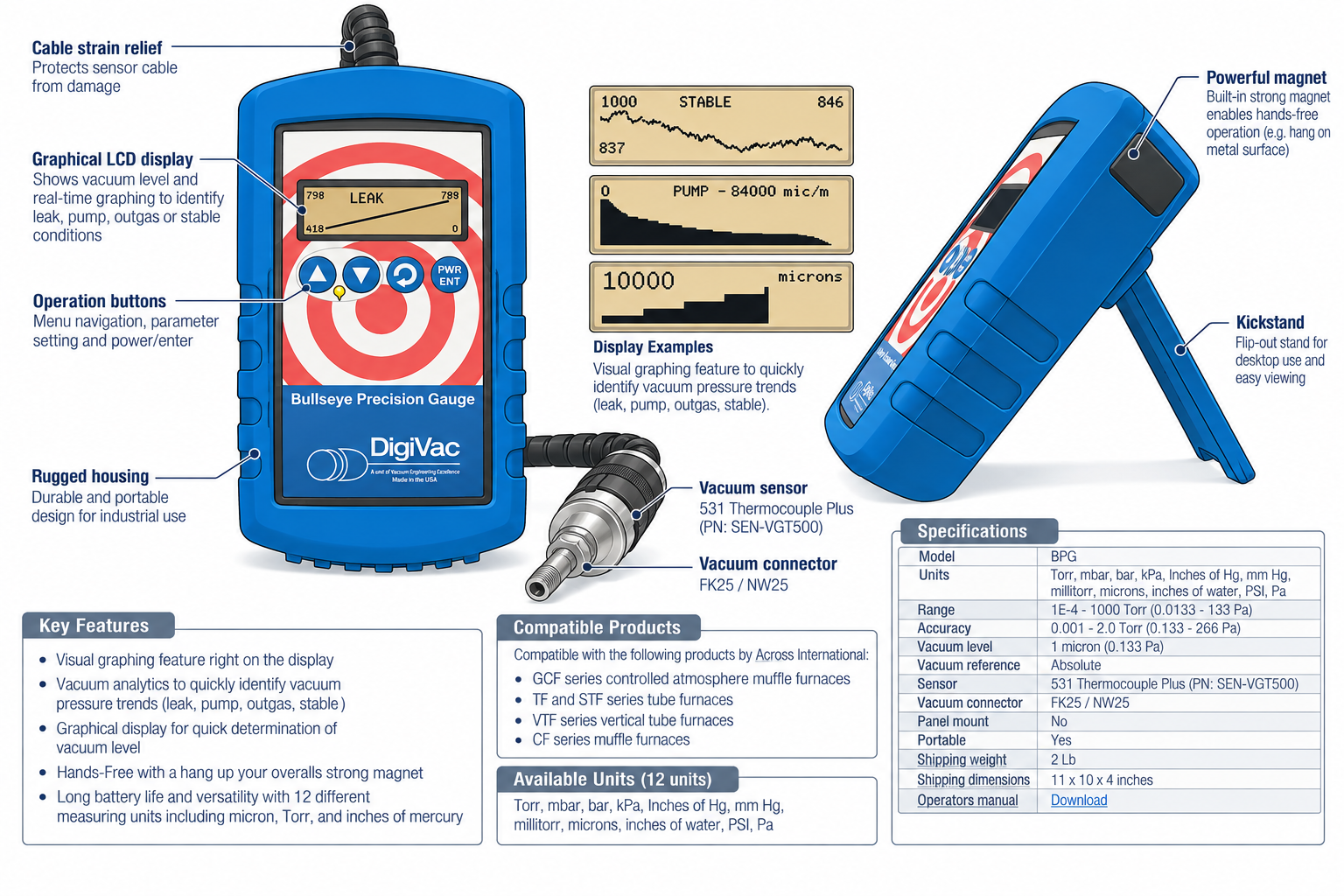

The DigiVac Bullseye precision vacuum gauge is rugged and portable vacuum gauge features visual graphing to pinpoint problems in real time (leak, pump, outgas, stable). Includes a powerful magnet and kickstand to enable hands-free operation.
Features
- Visual graphing feature right on the display
- Vacuum analytics to quickly identify vacuum pressure trends
- Graphical display for quick determination of vacuum level

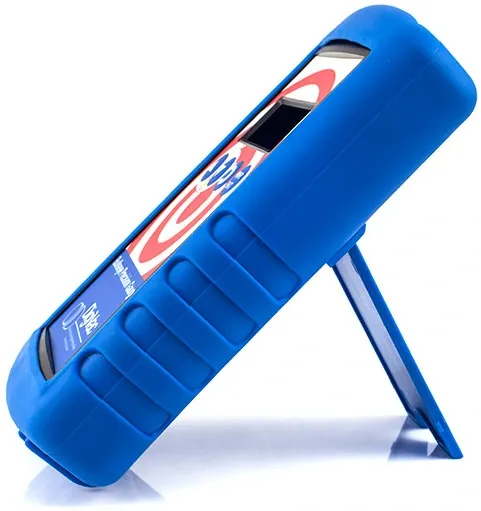

- Hands-Free with a hang up your overalls strong magnet
- Long battery life and versatility with 12 different measuring units including micron, Torr, and inches of mercury
- See detail specs on DigiVac's website
Specifications
| Model | BPG |
| Units | Torr, mbar, bar, kPa, Inches of Hg, mm Hg, millitorr, microns, inches of water, PSI, Pa |
| Range | 1E-4 - 1000 Torr (0.0133 - 133 Pa) |
| Accuracy | 0.001 - 2.0 Torr (0.133 - 266 Pa) |
| Vacuum level | 1 micron (0.133 Pa) |
| Vacuum reference | Absolute |

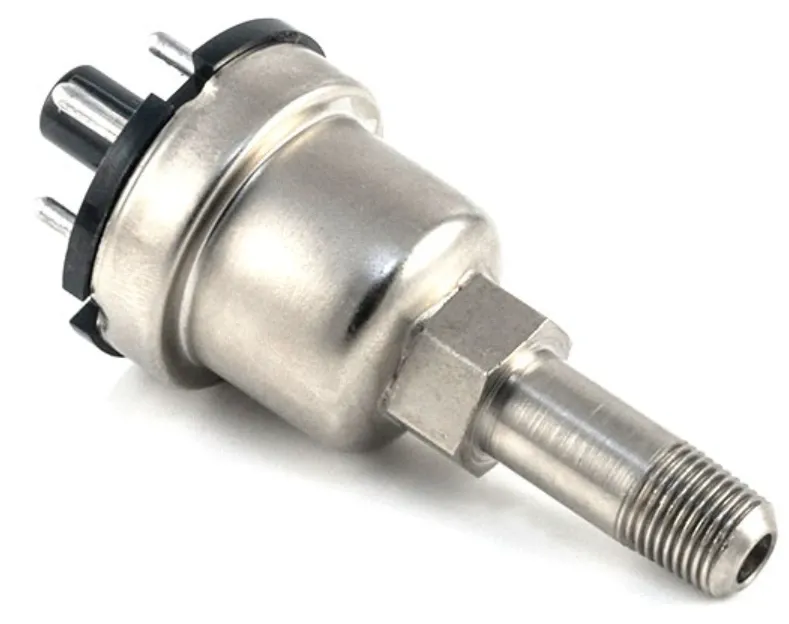

| Sensor | 531 Thermocouple Plus (PN: SEN-VGT500) |
| Vacuum connector | FK25/NW25 |
| Panel mount | No |
| Portable | Yes |
| Shipping weight | 2 Lb |
| Shipping dimensions | 11 x 10 x 4 inches |
| Operators manual | Download |
