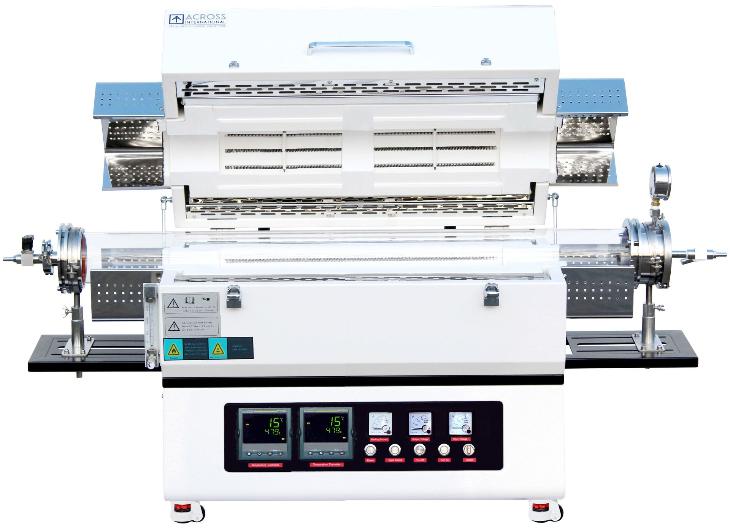

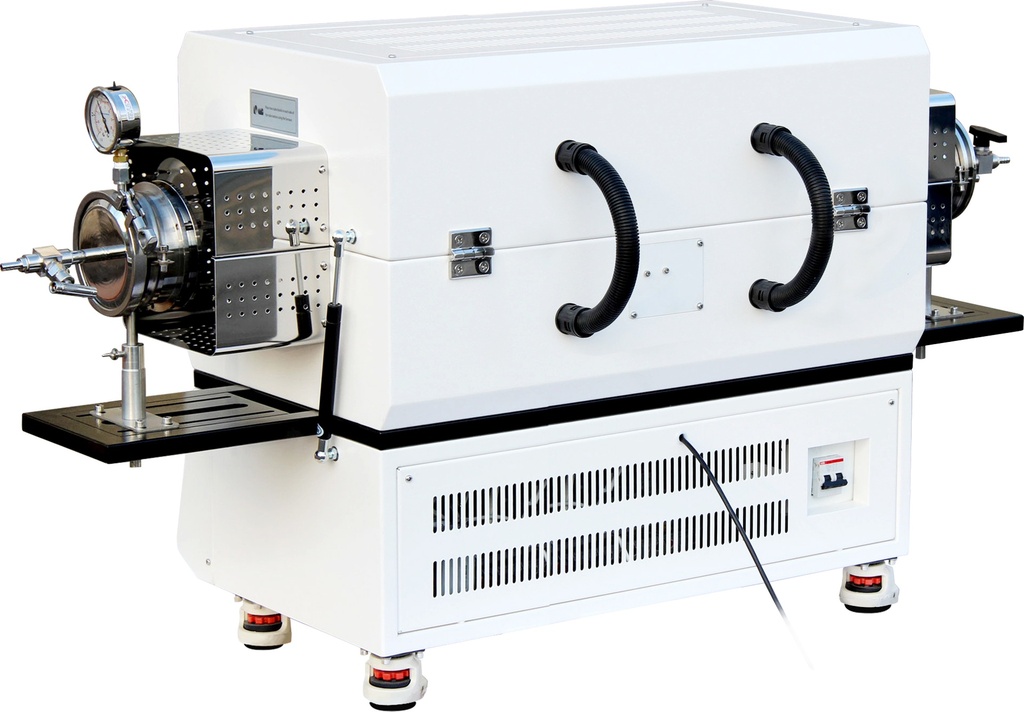

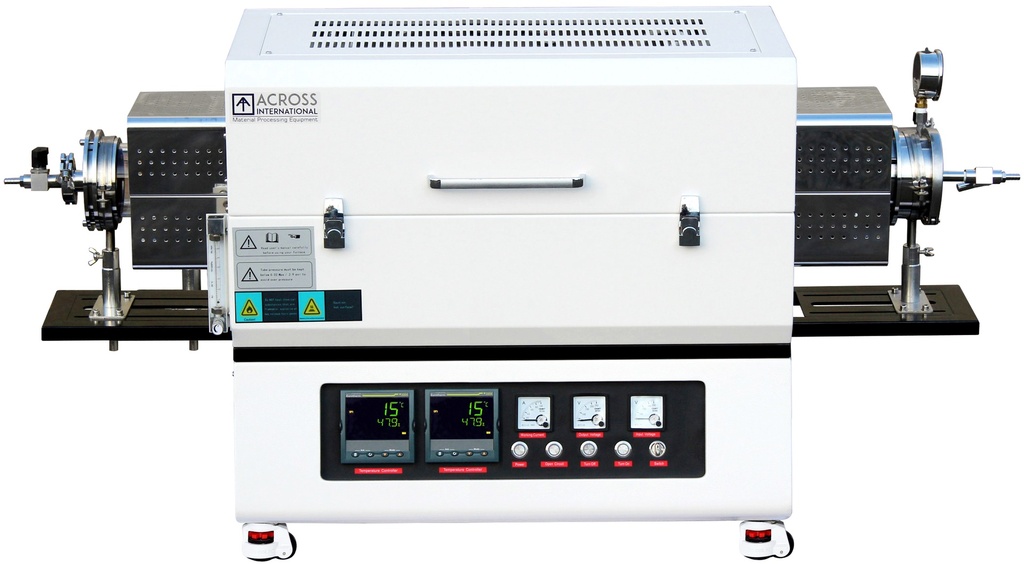

This TFM2 series tube furnace is made with some of the best components on the market. It has Sweden’s famous Kanthal coil wire as it’s heating element, embedded within Mitsubishi’s fiber insulation. A Japanese made Shimaden high precision temperature controller offers 40 programmable segments, and can come within an accuracy of +/-1 °C. Stainless steel vacuum sealing flanges ensure the tube is airtight. A double-layer steel housing with two cooling fans keeps the surface nice and cool, even when an application is ongoing.
A built-in computer interface, connection cable, adapter, and software, all included, allow you to set the parameters, control the temperature, and save your temperature curve right from your PC. This tube furnace is perfect for sintering all types of chemicals or materials. Safety features include thermocouple protection, temperature variation protection, furnace overheat protection, and power failure protection. All of our furnaces are CE certified.
Furnace overheat protection cuts off power when temperature is over the desired range.
Thermocouple protection cuts off power when the thermocouple is broken or malfunctioned.
Temperature variation protection cuts off power when the difference between actual temperature and target temperature is off the desired range. (refer to controller’s manual)
Power failure protection resume furnace operation right after the point of failure when power is back up.
Stainless steel flange support makes sure the tube and flanges are secure and in their absolute position, it also longer the life of the tube
Warning! NEVER fill furnace with explosive gases, including Hydrogen, Carbon Monoxide and Methane.
220-240V, 50/60 Hz, Single phase
High purity quartz
Min. working temperature
Max. working temperature
Max. constant working temperature
Constant working temperature under vacuum
Rated vacuum pressure
0.001 Pa / 0.0075 millitorr / 0.00001 mbar
Rated positive pressure
20 kPa / 150 torr / 3 psi
Mitsubishi (Japan) high quality 1500 grade fiber alumina
Heating element type
Zone1/Zone2: Kanthal (Sweden) coil wire
Shimaden fp93 (Japan) with 4 programs and 40 segments (i.e. 4 x 10 segments or 2 x 20 segments)
Max/recommended heating rate
Heating zone length
Zone1: 200 mm Zone2: 200 mm
Constant temp zone length
Zone1: 100 mm Zone2: 100 mm
Temperature controller precision
Vacuum level (cold)
Vacuum sealing flange kit
Stainless steel vacuum sealing flanges with one vacuum gauge, two valves and four thermal ceramic blocks.
Tube size (OD x length)
60mm x 1m
100mm x 1m
150mm x 1m
Furnace dimensions (LxWxH)
How to Program Across International Furnaces
TFM2 1200°C max dual-zone tube furnace
Stainless steel vacuum sealing flange set w/ pressure meter
Quartz tube (60/100mm: 2 pcs, 150mm: 1 pc)
1 or 2 pcs
Analog flow meter
Stainless steel hook
Alumina ceramic thermal block
High temperature Al2O3 alumina crucible
USB/RS485 computer interface kit
Furnace and Shimaden controller manual
