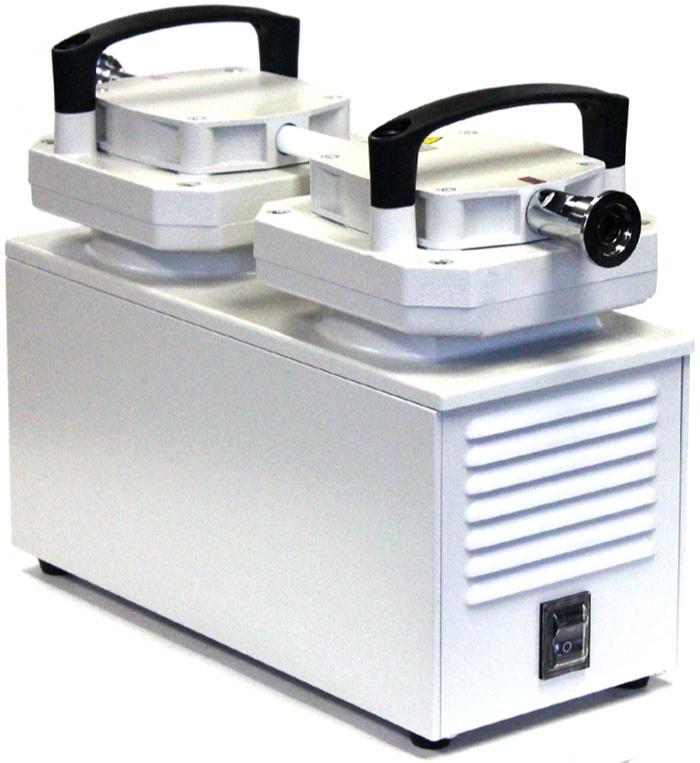

Ai exclusive, compact, lightweight, manufactured and imported directly from Japan, ULVAC UDP-6 is a high capacity full chemical-resistant 2-head pump that creates deep vacuum by reciprocate movement of rubber diaphragms. These pumps are oil-free, which means less maintenance and no more frequent and costly oil change, or cross contamination.
Applications
- UL/CSA listed
- Moisture & solvent evaporation
- Vacuum chucks, wafer and tip handling devices
- Vacuum tweezers, medical appliances
- Printing equipment
- Automatic packing machines
- Optical appliances
- Semiconductor industry
Specifications
| Model | ULVAC UDP-6 (DA-170DA/B) |
| Electrical requirements | 110V 50/60Hz or 220V 50/60Hz single phase 400 watts, 5.6 amp rated current |
| Pumping rate | 6 cfm |
| Ultimate vacuum level | 6 torr |
| Inlet/Outlet | KF25 flange |
| Adjustable vac./gas ballast | No |
| Unit/shipping dimensions (LxWxH) | 16 x 7 x 13" / 18 x 11 x 14.5" |
| Noise level | 68 dBA at Atmosphere pressure 62 dBA at ultimate pressure |
| Unit/shipping weight | 58 Lb / 63 Lb |
| Working environment | 32°F to 104°F (0°C to 40°C) |
| Compliance | UL, CSA |
.jpg)
History of ULVAC
Standard package
Part description | Quantity | Part image |
| ULVAC UDP-6 6 cfm oil-free diaphragm pump | 1 pc |
|
| KF25 wing nut flange quick clamp | 1 pc |
|
| KF25 flange centering ring | 1 pc |
|
| stardard 3-prong power cord | 1 pc |  |
| User's manual in a CD | 1 pc |
|
