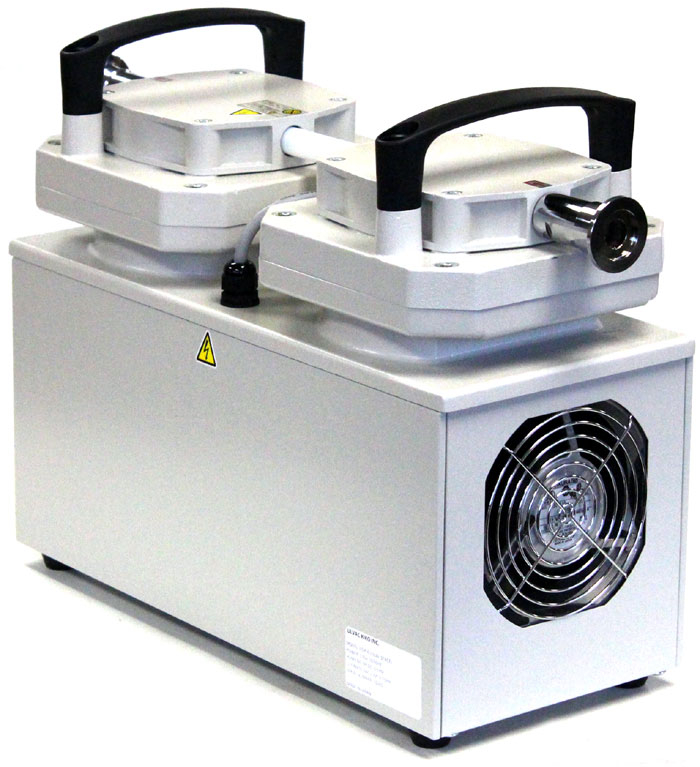

ULVAC UDP-6 6 cfm Full Chemical-Resistant 2-Head Diaphragm Pump

https://across-international.odoo.com/web/image/product.template/486/image_1920?unique=7b8cb28

SKU# UDP-6

A$ 7,690.00 A$ 7,690.00 7690.0 AUD

A$ 7,690.00

Excl. GST

    This combination does not exist.

    Contact Us

    SKU # : SKU# UDP-6

    Terms and Conditions


    Ai exclusive, compact, lightweight, manufactured and imported directly from Japan, ULVAC UDP-6 is a high capacity full chemical-resistant 2-head pump that creates deep vacuum by reciprocate movement of rubber diaphragms. These pumps are oil-free, which means less maintenance and no more frequent and costly oil change, or cross contamination.

    Applications

    • UL/CSA listed
    • Moisture & solvent evaporation
    • Vacuum chucks, wafer and tip handling devices
    • Vacuum tweezers, medical appliances
    • Printing equipment
    • Automatic packing machines
    • Optical appliances
    • Semiconductor industry




    Specifications

     Model ULVAC UDP-6 (DA-170DA/B)
     Electrical requirements
    		 220V 50/60Hz single phase
     400 watts, 5.6 amp rated current
     Pumping rate
    		 6 cfm
     Ultimate vacuum level
    		 6 torr
     Inlet/Outlet
    		 KF25 flange
     Adjustable vac./gas ballast No
     Unit/shipping dimensions (LxWxH)
    		 400 x 178 x 330 mm / 460 x 280 x 370 mm
     Noise level 68 dBA at Atmosphere pressure
     62 dBA at ultimate pressure
     Unit/shipping weight
    		 26 KG / 28.5
     Working environment 0°C to 40°C

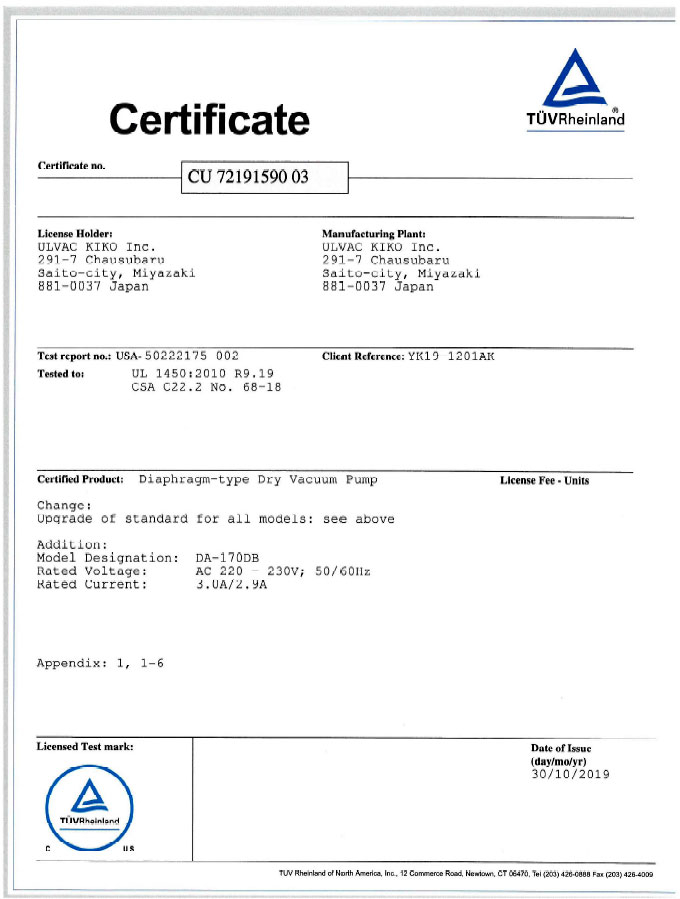

     Compliance UL, CSA









    Standard package



     Part description

     Quantity

    Part image

     ULVAC UDP-6 6 cfm oil-free diaphragm pump
    		1 pc

     KF25 wing nut flange quick clamp
    		1 pc

     KF25 flange centering ring
    		 1 pc

     stardard 3-prong power cord
    		1 pc
     User's manual in a CD
    		1 pc
