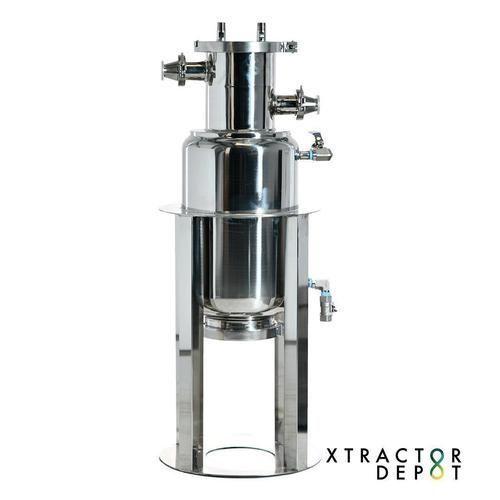

AI 10L Stainless Steel Cold Trap With KF25

AI 10L Stainless Steel Cold Trap With KF25

https://www.acrossinternational.com.au/web/image/product.template/756/image_1920?unique=2681ae7

SKU# SSCT.10

A$ 4,990.00 A$ 4,990.00 4990.0 AUD

A$ 4,990.00

Excl. GST

    This combination does not exist.

    Contact Us

    SKU # : SSCT.10

    Pump repairs and replacement are an expensive hassle. Take the guesswork out of pump protection with the XD Cryotrap. Features stainess steel construction and vacuum jacket, allowing for excellent thermal insulation. An industry-leading vapor path design allows for the rapid condensation of liquids and it comes set up for use with either dry ice or a chiller.



    Specifications

     Model Stainless Steel Cold Trap
     Internal volume 10 L
     Material Stainless steel
     Trap connections KF25 / KF50
     Sealing gasket material
    		 Made of FKM, gasket does not touch the fluid, FKM is rated to -26°C
     Compatible with Liquid Nitrogen
     Dry ice with alcohol
     Chiller with Dynalene
     Recommended chiller -80°C
     Weight and dimensions Cold trap/coil: 95 lbs, 14 x 14 x 36" (WxLxH)
     Palletized: 155 lbs, 40 x 45 x 41" (WxLxH), freight class: 250
     Included with purchase

        (1) Dry Ice Insert
        (1) Chilling Coil Insert
        (2) 6"FKM Flanged Gaskets
        (1) 6" Inline Sight Glass
        (2) 6" Single Pin Clamps
        (1) 6" Flat Cap w/ 1/2" MNPT
        (1) 1/2" Full Port Ball Valve
        (1) 1/2" MNPT x 1/2" Barb
        (3) KF 25 Quick Clamp w/ O- Ring Sealing
        (2) KF 40 Quick Clamp w/ O- Ring Sealing
        (2) KF25 to KF40 Adapter

     Download

     Product brochure
