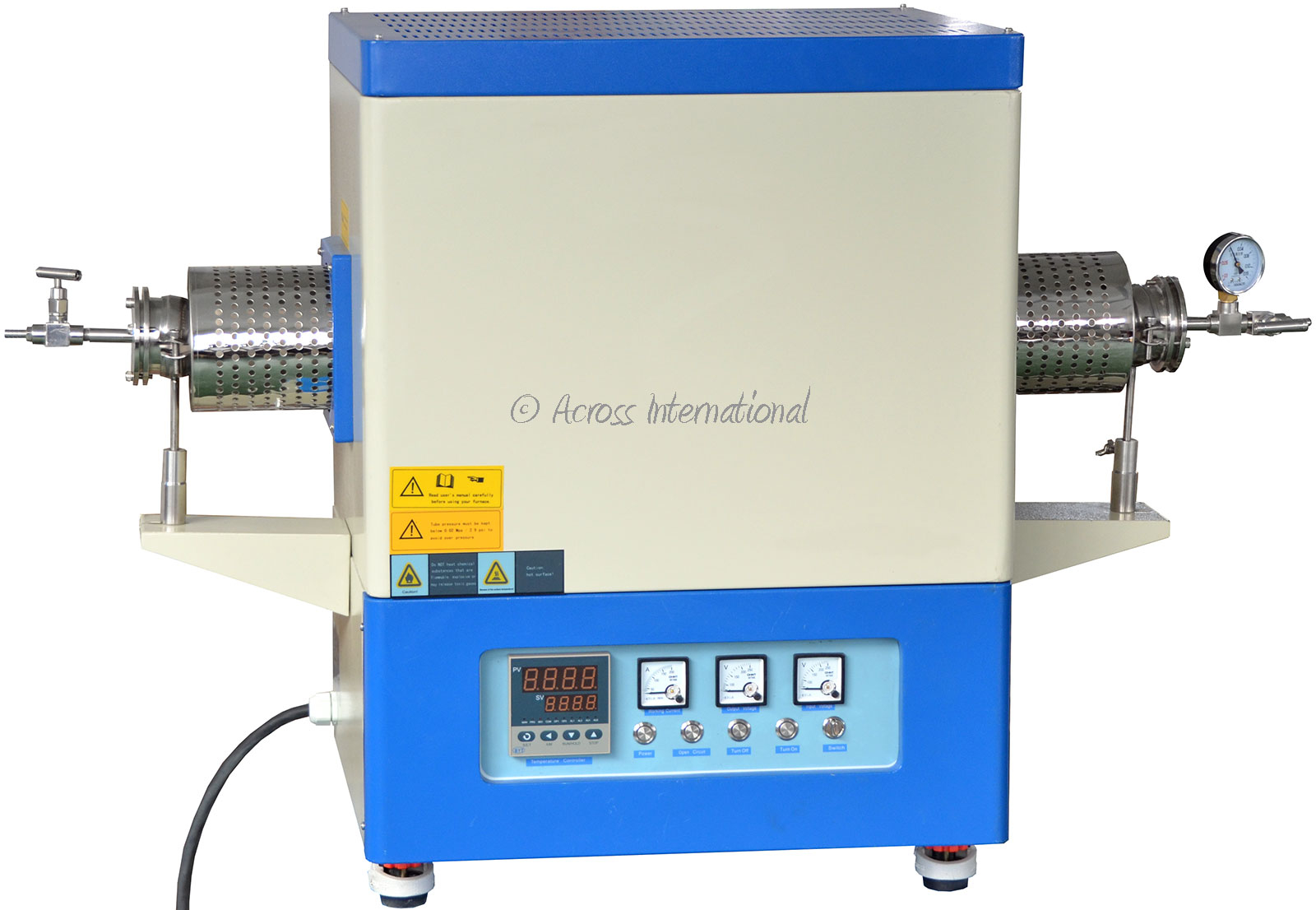

TF1400 series Chemical Vapor Deposition (CVD) tube furnaces feature a chamber with Mitsubishi (Japan) high quality alumina fiber insulation and SiC heating elements. A dual-wall steel internal housing helps minimize heat loss to exterior surface.
Furnace operation is controlled by Eurotherm 5x8-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.All our furnaces are CE compliant.
Features
Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.
Dual flanges support ensures better sealing and longer tube life.
Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)
Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
Built-in computer interface.
Long life type S thermocouple.
Safety
Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
Warning! NEVER fill furnace with explosive gases, including Hydrogen, Carbon Monoxide and Methane.
How to Program Across International Furnaces
Specifications
Tube Material
High purity (99%) Al2O3 alumina
Min/max./Constant Working Temperature
Ambient / 1400°C (2552°F) / 1300°C (2372°F)
Refractory Lining
Mitsubishi(Japan) high quality1600 grade fiber alumina
Heating Element
Silicon carbide (SiC)
Thermocouple Type
S
Temperature Controller
Eurotherm® 3204 with 5 patterns and 8 segments
Max Heating Rate
5°C (41°F)/min above 1200°C and 10°C (50°F)/min below 1200°C (2192°F)
Temperature Controller Precision
+/- 1°C (+/- 1.8°F)
Vacuum Sealing Flange Kit
Stainless steel vacuum sealing flanges with one mechanical vacuum gauge, two valves and four thermal ceramic blocks.
