SuperVac 5.6 cfm Corrosion-Resist 2-Stage Pump


A$ 2,390.00 A$ 2,313.62 2313.62 AUD

A$ 2,390.00

Excl. GST

    This combination does not exist.

    SKU # : SV5C

    Terms and Conditions


    Ai SuperVac-5C 5.6 cfm commercial grade vacuum pump now come standard with UL certified, this certification is required by many municipalities, and it also provides a higher standard of equipment safety and lifespan. These pumps are also corrosion resistant and 115V/230V 50/60Hz switchable, backed by our 2-year warranty.

    Ai SuperVac-5 dual-stage vacuum pump will take your vacuum down to 0.3 micron in minutes. These pumps are designed for reliable long time continuous operation. Comes standard with all necessary fittings and a high capacity exhaust oil mist filter which also returns trapped pump oil back to the pump and makes the pump quieter to run.

    Adjustable gas ballast is designed to allow purposefully pull a less deep and slower vacuum by opening the gas ballast, allowing dry air to go directly into the pump and diluting the vacuum pull, and it also helps keep moisture, solvent, and other contaminants from getting stuck in the pump, and instead passing through to the exhaust.

    It is important to note that pumps should always be ran in a well ventilated area.

    Free high capacity exhaust oil mist filter ($219 value), KF25 flexible stainless steel bellow (1 meter), clamps and centering rings set ($319 value) included.

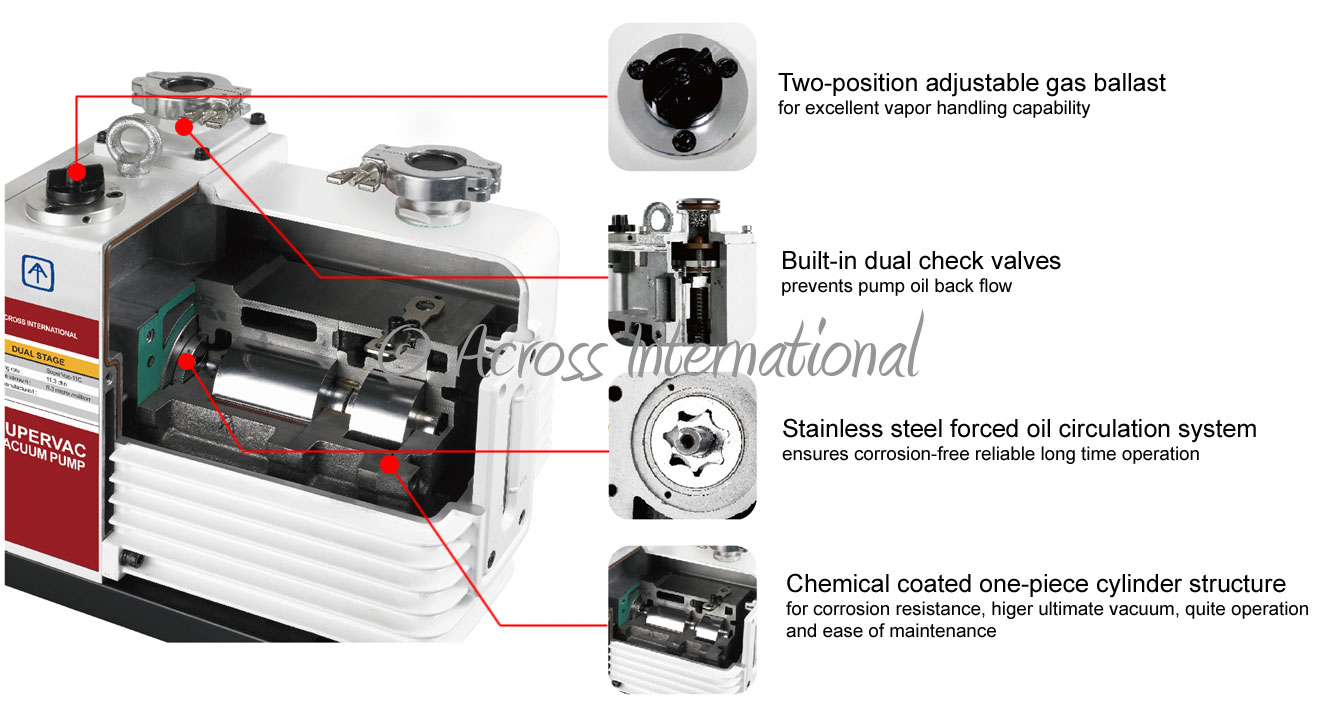

    • UL and CE certified
    • New corrosion-resistant design for durable operation in various environment
    • Adjustable gas ballast
    • Built-in oil back-flow prevention check valve
    • Internal forced oil cycling system
    • Integrated cylinder structure
    • Exhaust filter with easy-to-change replaceable filter element
    • Heavy duty structure and designed for reliable long time operation
    • Low noise
    • All necessary fittings and filter included for immediate use
    • 2-year warranty


     Electrical requirements
     110/230V switchable, 50/60Hz single phase, 370 watts
     Pumping rate
     5.6 cfm
     Ultimate vacuum without gas ballast
     0.3 micron/millitorr
     Ultimate vacuum with gas ballast
     6 micron/millitorr
     Inlet/outlet connection
     KF25/NW25 flange
     Oil volume
     1 liter / 1.06 quart
     Motor speed 1450 rpm (50Hz) or 1720 rpm (60Hz)
     Working temperature 5 to 40°C
     Unit dimensions (LxWxH)
     430 x 170 x 250 mm or 430 x 170 x 410 mm (with filter)
     Shipping dimensions (LxWxH) 580 x 220 x 330 mm
     Unit weight
     21 kg
     Shipping weight 25 kg
     Recommended oil Ultragrade 19
     Noise level < 56 dB
     Warranty Two years
     Download Product brochure
     Compliance CE



    Standard package

     Part description


    Part image

     Ai SuperVac 5.6 cfm vacuum pump with exhaust oil mist filter
    1 set


     Ai premium vacuum pump oil - 1 liter
    1 pc
     KF25 flexible stainless steel vacuum bellow (1 meter)
    1 pc

     KF25 wing nut flange quick clamp
     2 pcs

     KF25 flange centering ring
     2 pcs

     User's manual1 pc
