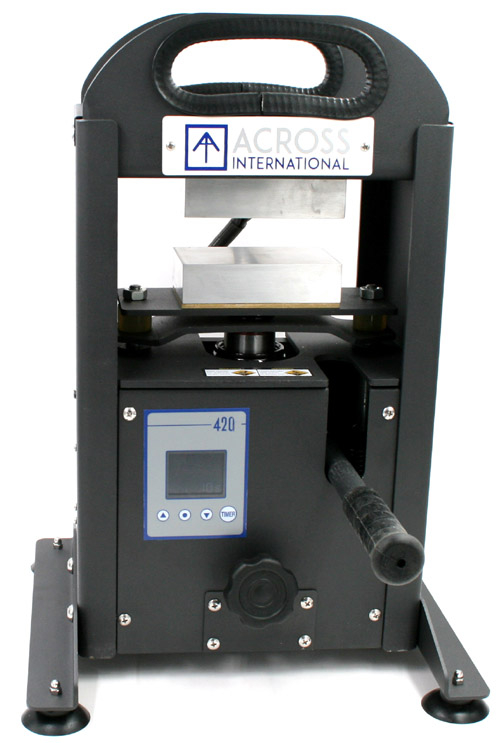

Ai 120x75mm 10T Hydraulic Heat Press Dual Heating Platens

https://across-international.odoo.com/web/image/product.template/468/image_1920?unique=fd17ccb

SKU# SwingPress10T-3809M

A$ 990.00 A$ 990.00 990.0 AUD

A$ 990.00

Excl. GST

    This combination does not exist.


    SKU # : SwingPress10T-3809M

    Terms and Conditions


    Ai 2021 new SwingPress 120x75mm heavy duty hydraulic heated press features dual built-in digital thermometers and heaters, allowing you to precisely control the temperature of your transfer. The digital timer will automatically begin a countdown as soon as the clamp is pressed shut, and provides an audible alarm once the predetermined amount of time has elapsed.

    Features

    - Solid aluminum heating platens for easy maintenance and even heating
    - Oil-filled pressure gauge gives you accurate pressure reading.

    - Digital timer and alarm
    - Dual heating platens for increased temperature stability
    - Dual LCD temperature controllers display in Fahrenheit or Celsius
    - Adjustable pressure with pressure release knob
    Excellent for creating solventless botanical extractions




    Specifications

     Electrical requirements
     220-240V 50/60Hz, single phase, 600 watts 2.5A
     Heated platen
     Dimensions: 120 x 75 mm
     Number of heated platens: two
     Material: soild aluminum
     Temperature controller
     Type: PID controlled digital controller with LCD panel
     Number of controller installed: two
     Display unit: Fahrenheit or Celsius
     Temperature range: ambient to 230°C
     Timer range: 1 to 999 seconds
     Body material Powder coated steel
     Safety Timer alarm
     Unit weight/shipping weight
     30 kg / 40 kg
     Unit dimensions (WxDxH)
     350 x 300 x 480 mm
     Shipping dimensions (WxDxH) 400 x 350 x 590 mm
     Recommended heat settings
     for botanical extractions
     Flowers: 180°F to 230°F
     Concentrates: 150°F to 200°F
     Warranty 90 days
