WAC-10 digital temperature controlled recirculating water chiller with built-in swivel casters, recommended for our IH series induction heaters (see models below). These chillers have built-in stainless steel tank, water pump and tubing for durability and rust-free operations. Water manifold included for immediate use.
Digital micro-chip controlled with LCD screen and fluid level display
415VAC 50/60Hz three-phase (3PH)
Nominal cooling capacity is according to: Inlet chilled fluid temperature: 12°C Outlet chilled fluid temperature: 7°C Inlet cooling air temperature: 30°C Outlet cooling air temperature: 35°C
415VAC 50/60Hz three-phase (3PH) 750W 3450 rpm. Max pressure 10 bar. Max liquid temperature: 70°C Pumping speed: 66L/minute
1270 x 710 x 1520 mm / 1400 x 890 x 1780 mm (DxWxH)
Over current, compressor delay start, water pump over load, built-in fuse, over-voltage and under- voltage, abnormal operations, phase protection and
Temperature range of chilled fluid: 5°C - 35°C. Temperature difference of chilled fluid between inlet and outlet: 3°C - 8°C. It is better to use the chiller while the ambient temperature is at or below 35°C
Recommended to use with these induction heaters (result may vary on different applications)
High frequency 30kW, 40kW, 60kW Mid frequency 35kW, 45kW, 70kW Low frequency 35kW, 45kW, 70kW

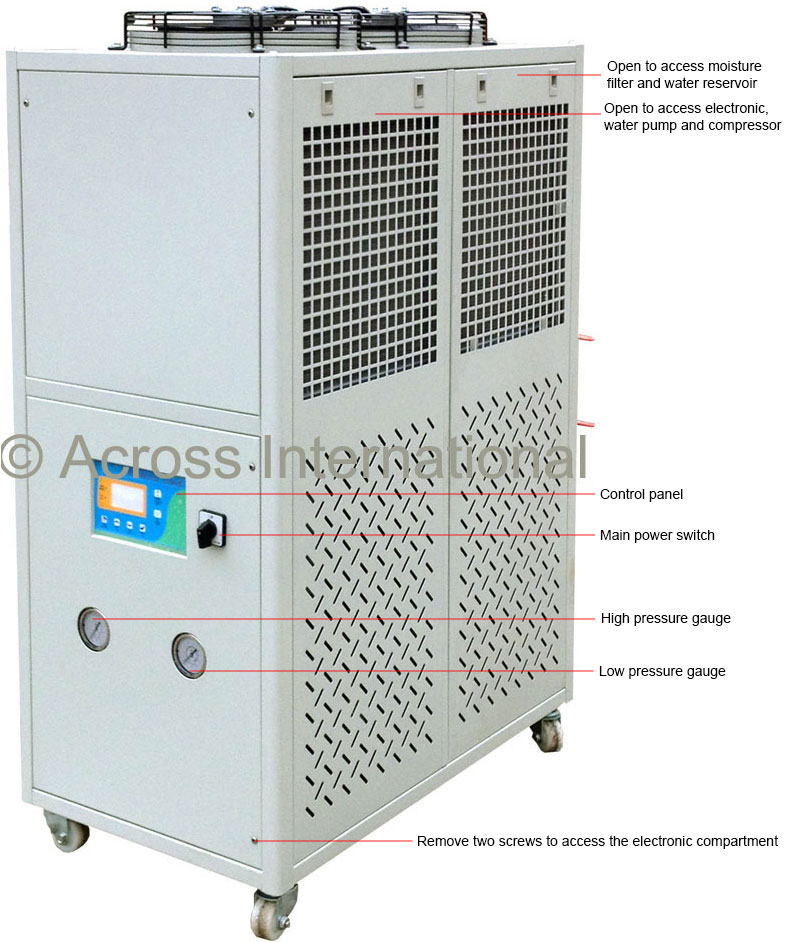

WAC-10 recirculating chiller
