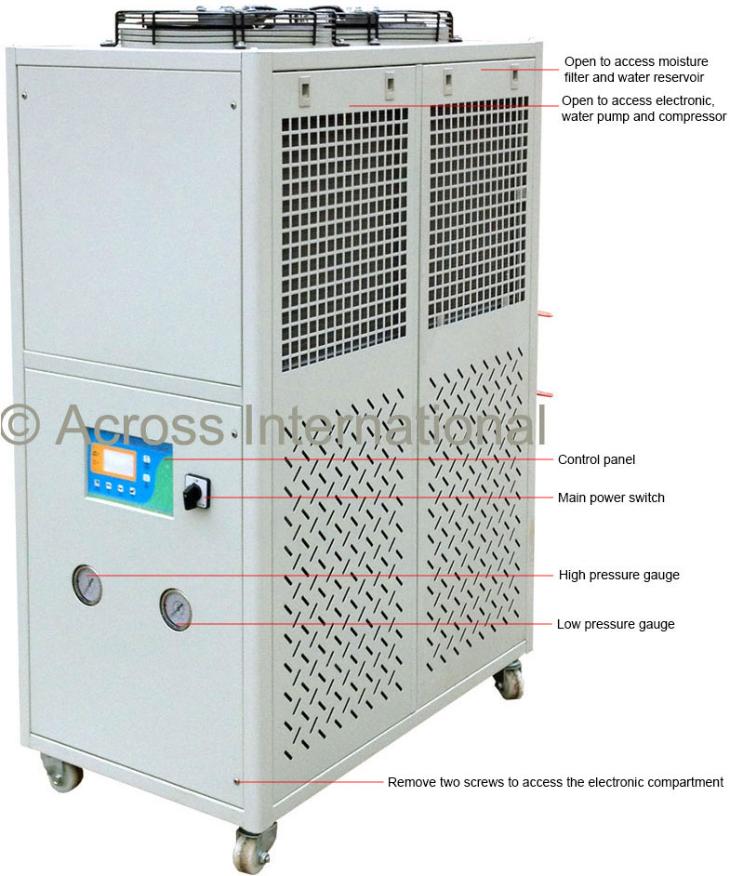

Ai 10°C to 25°C 117L/Min 280L Capacity Recirculating Chiller

https://across-international.odoo.com/web/image/product.template/404/image_1920?unique=ebf4b9c

SKU# WAC-15

A$ 23,490.00 A$ 23,490.00 23490.0 AUD

A$ 23,490.00

Excl. GST

    This combination does not exist.

    Contact Us

    SKU # : WAC-15

    Terms and Conditions


    WAC-15 digital temperature controlled recirculating water chiller with built-in swivel casters, recommended for our IH series induction heaters (see models below). These chillers have built-in stainless steel tank, water pump and tubing for durability and rust-free operations. Water manifold included for immediate use.



    Specifications

     Model
    		 WAC-15
     Controller Digital micro-chip controlled with LCD screen and fluid level display
     Input power 415VAC 50/60Hz three-phase (3PH)
     Nominal cooling capacity

     16700 kcal per hour
     Nominal cooling capacity is according to:
            Inlet chilled fluid temperature: 12°C
            Outlet chilled fluid temperature: 7°C
            Inlet cooling air temperature: 30°C
            Outlet cooling air temperature: 35°C

     Water pump
    		 415VAC 50/60Hz three-phase (3PH) 1 kW
     3450 rpm. Max pressure 10 bar. Max liquid temperature: 70°C
     Pumping speed: 117L per minute
     Reservoir capacity 280L
     Recommended coolant Distilled water
     Compressor

     415VAC 50/60Hz three-phase (3PH) 15P
     Thermally protected. PS: 22.6 bar
     TS max: 50°C, TS min: -35°C
     Lubricant: P.O.E. 160 PZ
     Refrigerant: R407C

     Temperature accuracy +/- 3 °C
     Condenser cooling air flow 706,000 cu ft per hour
     Chilled fluid flow 95 L/Min
     Inlet & outlet diameter 32mm or 1 1/4 inch (four inlets and four outlets)
     Unit/shipping weight 295 kg / 360 kg
     Unit/shipping dimensions 1400 x 840 x 1650 mm / 1650 x 1020 x 1910 mm (DxWxH)
     Safety Over current, compressor delay start, water pump
     over load, built-in fuse, over-voltage and under-
     voltage, abnormal operations, phase protection and
     Working environment Temperature range of chilled fluid: 5°C - 35°C. Temperature
     difference of chilled fluid between inlet and outlet: 3°C - 8°C.
     It is better to use the chiller while the ambient temperature is
     at or below 35°C
     Recommended to use with
     these induction heaters
     (result may vary on
     different applications)
    		 High frequency 40kW, 60kW, 100kW
     Mid frequency 45kW, 70kW, 110kW
     Low frequency 35kW, 70kW, 110kW
     CE compliant Yes

    Standard package

    Item
    		QuantityImage
     WAC-15 recirculating chiller
    		 1
     Water manifold
    		2
     User's manual
    		1
