Ai 10°C to 25°C 66L/Min 60L Capacity Recirculating Chiller

Ai 10°C to 25°C 66L/Min 60L Capacity Recirculating Chiller

https://www.acrossinternational.com.au/web/image/product.template/403/image_1920?unique=2681ae7

SKU# WAC-6

A$ 9,690.00 A$ 9,690.00 9690.0 AUD

A$ 9,690.00

Excl. GST

    This combination does not exist.

    Contact Us


    SKU # : WAC-6

    Terms and Conditions

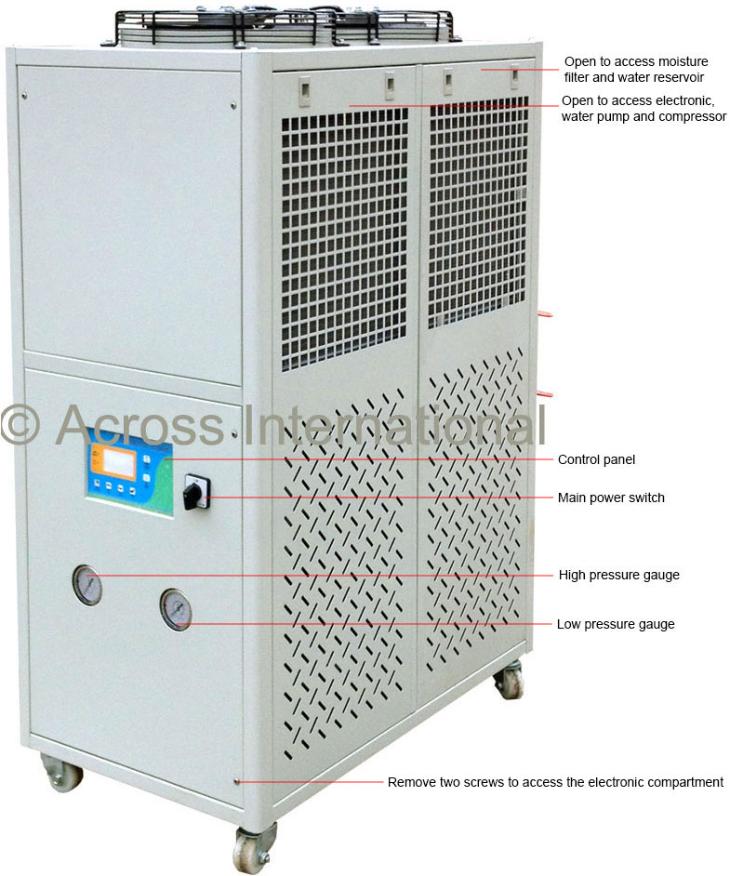

    WAC-6 digital temperature controlled recirculating water chiller with built-in swivel casters, recommended for our IH series induction heaters (see models below). These chillers have built-in stainless steel tank, water pump and tubing for durability and rust-free operations. Water manifold included for immediate use.




    Specifications

     Model
    		 WAC-6
     Controller Digital micro-chip controlled with LCD screen and fluid level display
     Input power 415VAC 50/60Hz three-phase (3PH) 5.5kW
     Nominal cooling capacity 14028 kcal per hour
     Nominal cooling capacity is according to:
            Inlet chilled fluid temperature: 12°C
            Outlet chilled fluid temperature: 7°C
            Inlet cooling air temperature: 30°C
            Outlet cooling air temperature: 35°C
     Water pump
    		 415VAC 50/60Hz three-phase (3PH) 750W
     3450 rpm. Max pressure 10 bar. Max liquid temperature: 70°C
     Pumping speed: 66L per minute
     Reservoir capacity 60L
     Recommended coolant Distilled water
     Compressor

     415VAC 50/60Hz three-phase (3PH) 10A Max
     Thermally protected. PS: 22.6 bar
     TS max: 50°C, TS min: -35°C
     Lubricant: P.O.E. 160 PZ
     Refrigerant: R407C-R134a-R404A-R507

     Temperature accuracy +/- 2 °C
     Condenser cooling air flow 212,000 cu ft per hour
     Chilled fluid flow 60L/min
     Inlet & outlet diameter 25mm/1 inch (four inlets and four outlets)
     Unit/shipping weight 200 kg / 260 kg
     Unit/shipping dimensions 1040 x 610 x 1370 mm / 1220 x 660 x 1520 mm (DxWxH)
     Safety Over current, compressor delay start, water pump
     over load, built-in fuse, over-voltage and under-
     voltage, abnormal operations, phase protection and
     Working environment Temperature range of chilled fluid: 5°C - 35°C. Temperature
     difference of chilled fluid between inlet and outlet: 3°C - 8°C.
     It is better to use the chiller while the ambient temperature is
     at or below 35°C
     Recommended to use with
     these induction heaters
     (result may vary on
     different applications)
    		 High frequency 20kW, 30kW, 40kW
     Mid frequency 35kW, 45kW
     Low frequency 35kW, 45kW
     CE compliant Yes


    Standard package

    Item
    		QuantityImage
     WAC-6 recirculating chiller
    		 1
     Water manifold
    		2
     User's manual
    		1
