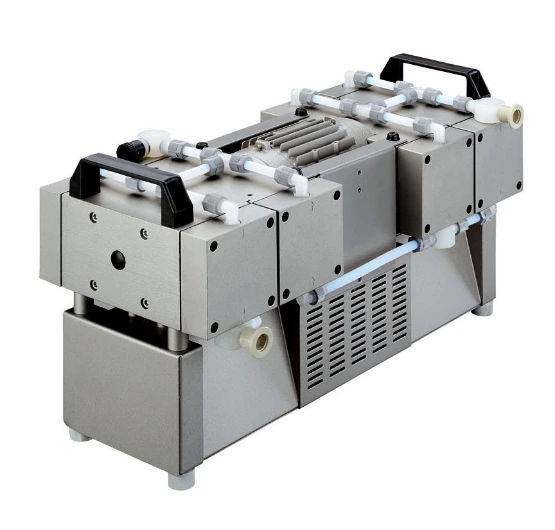

Welch 2163 6.1 cfm Full Chemical-Resistant 8-Head Diaphragm Pump

    A$ 7,890.00 A$ 7,890.00 7890.0 AUD

    A$ 7,890.00

    This combination does not exist.

    Add to Cart

    SKU# 2163


    Terms and Conditions

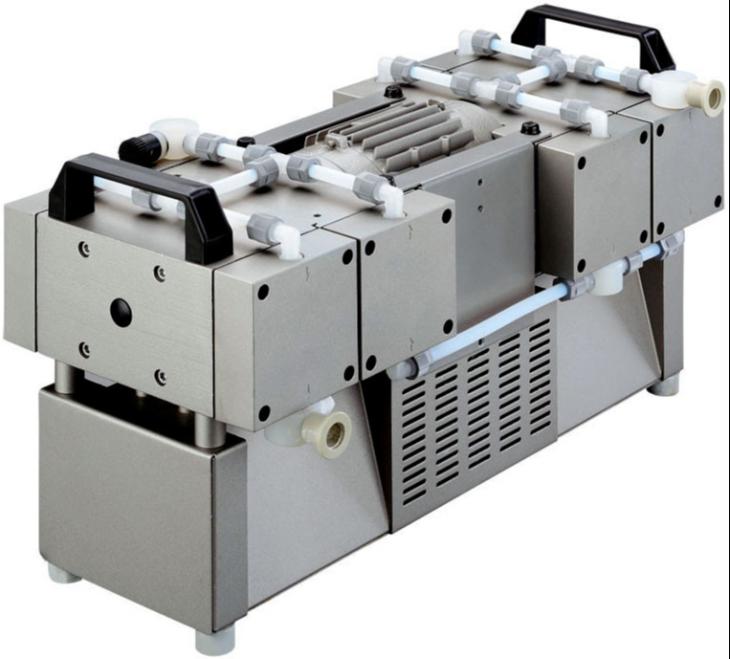

    The Welch 2163 is a high capacity full chemical-resistant, 8-head, oil-free dry diaphragm vacuum pump with all-aluminum contact surfaces and deep vacuum capability. Oil-Free, portable, full chemical-resistant, means less maintenance and no more frequent and costly oil change, or cross contamination.

    Ai is now the official dealer of Welch vacuum pumps. These pumps are made in Germany with one year warranty and technical support from Welch Vacuum.


    Specifications

     Electrical requirements
     110V or 220V, 50/60Hz single phase
     Pumping rate
     6.1 cfm / 174 L/min
     Gasket material All-PTFE
     Ultimate vacuum level
     6 torr / 8 mbar
     Maximum vacuum 29.9 in. Hg
     Inlet/Outlet
     KF16 flange
     Adjustable vac./gas ballast No
     Unit dimensions 540 x 240 x 310 mm (LxWxH)
     Shipping dimensions 710 x 410 x 510 mm (LxWxH)
     Shipping weight 41 kg
     Compliance CE

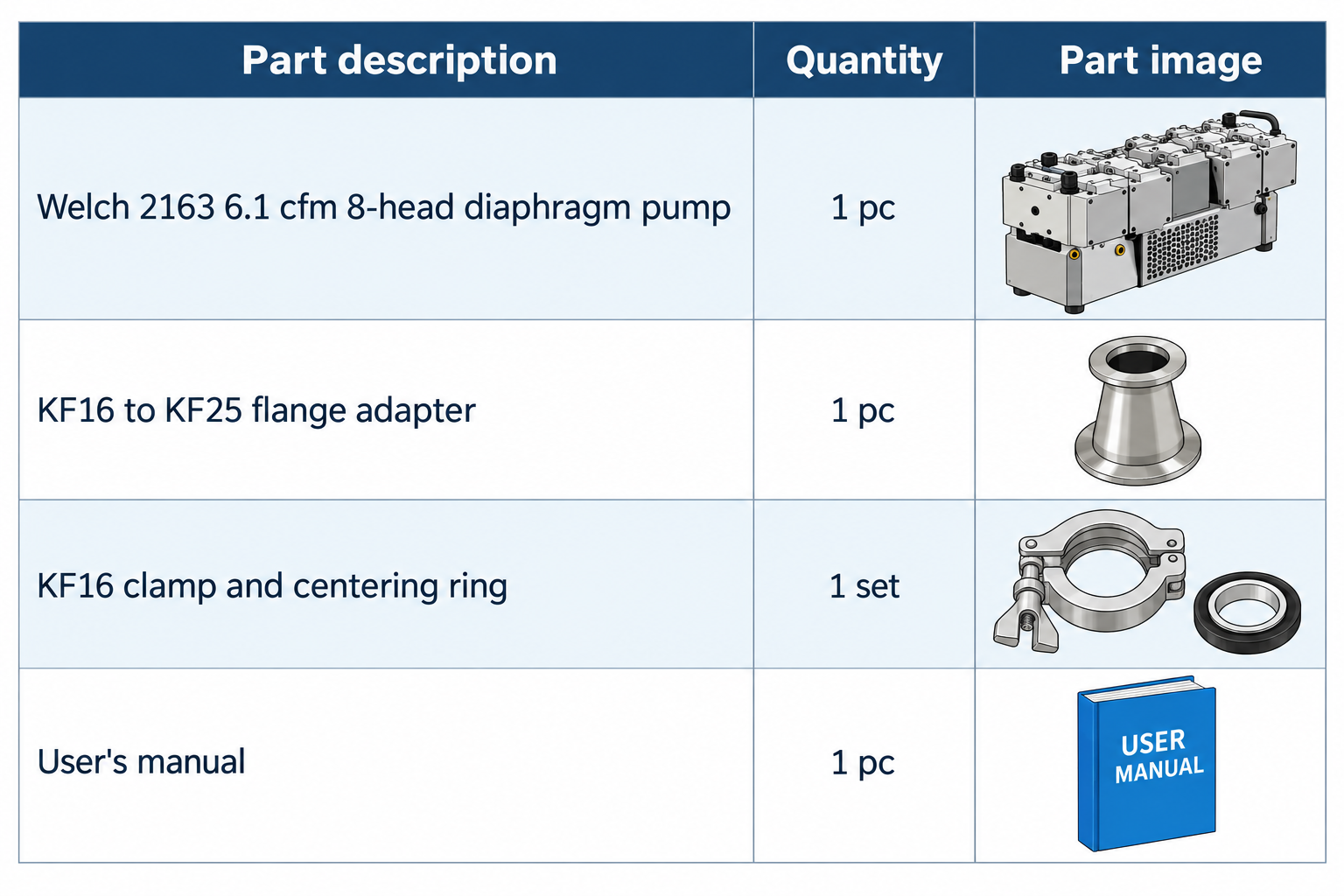

    Standard package

     Part description

     Quantity

    Part image

     Welch 2163 6.1 cfm 8-head diaphragm pump
    1 pc

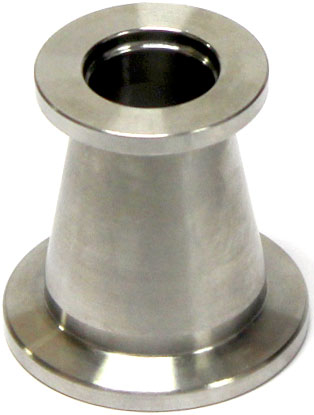

     KF16 to KF25 flange adapter1 pc

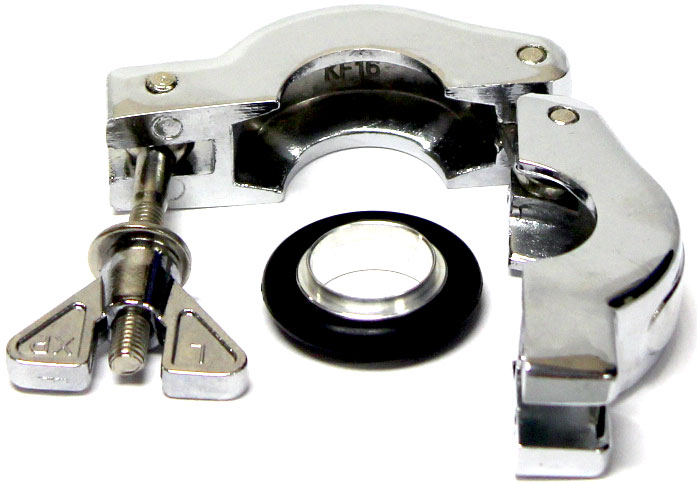

     KF16 clamp and centering ring
    1 set

     User's manual1 pc
