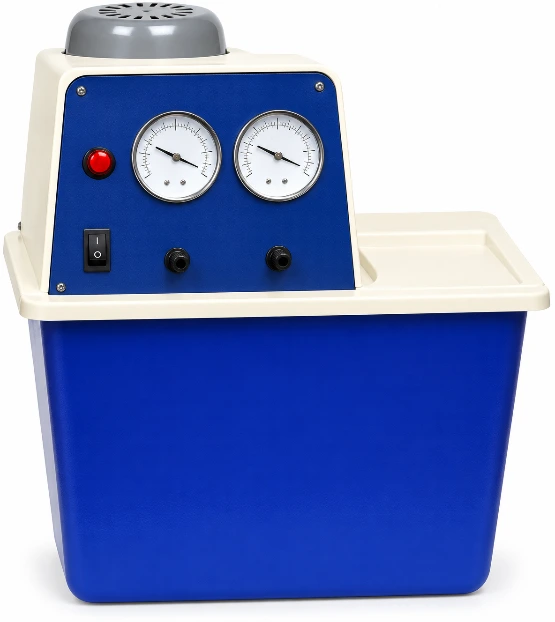

Ai WaterVac 0.7 cfm 2-Head Recirculating Water Vacuum Pump

https://www.acrossinternational.com.au/web/image/product.template/347/image_1920?unique=7b8cb28

SKU# WV07

A$ 1,090.00 A$ 1,090.00 1090.0 AUD

A$ 1,090.00

Excl. GST

    This combination does not exist.


    SKU # : WV07

    Terms and Conditions


    Ai WaterVac 0.7 cfm is an oil-free, portable, chemical resistant, 2-head recirculating water pump, with simplified maintenance, and no frequent and costly oil change. All major parts are made of PTFE, these economical vacuum pumps are perfect for tough lab applications.

    Features

    • Long life, corrosion resistant, reliable
    • All major valves and parts made of PTFE
    • Whisper quiet operation
    • Chemically resistant
    • No oil changes, no cold trap required for water/alcohol solutions
    • Virtually maintenance-free solution for laboratory environment
    • Smaller footprint than oil pump saves lab space
    • Designed to work with rotary evaporators

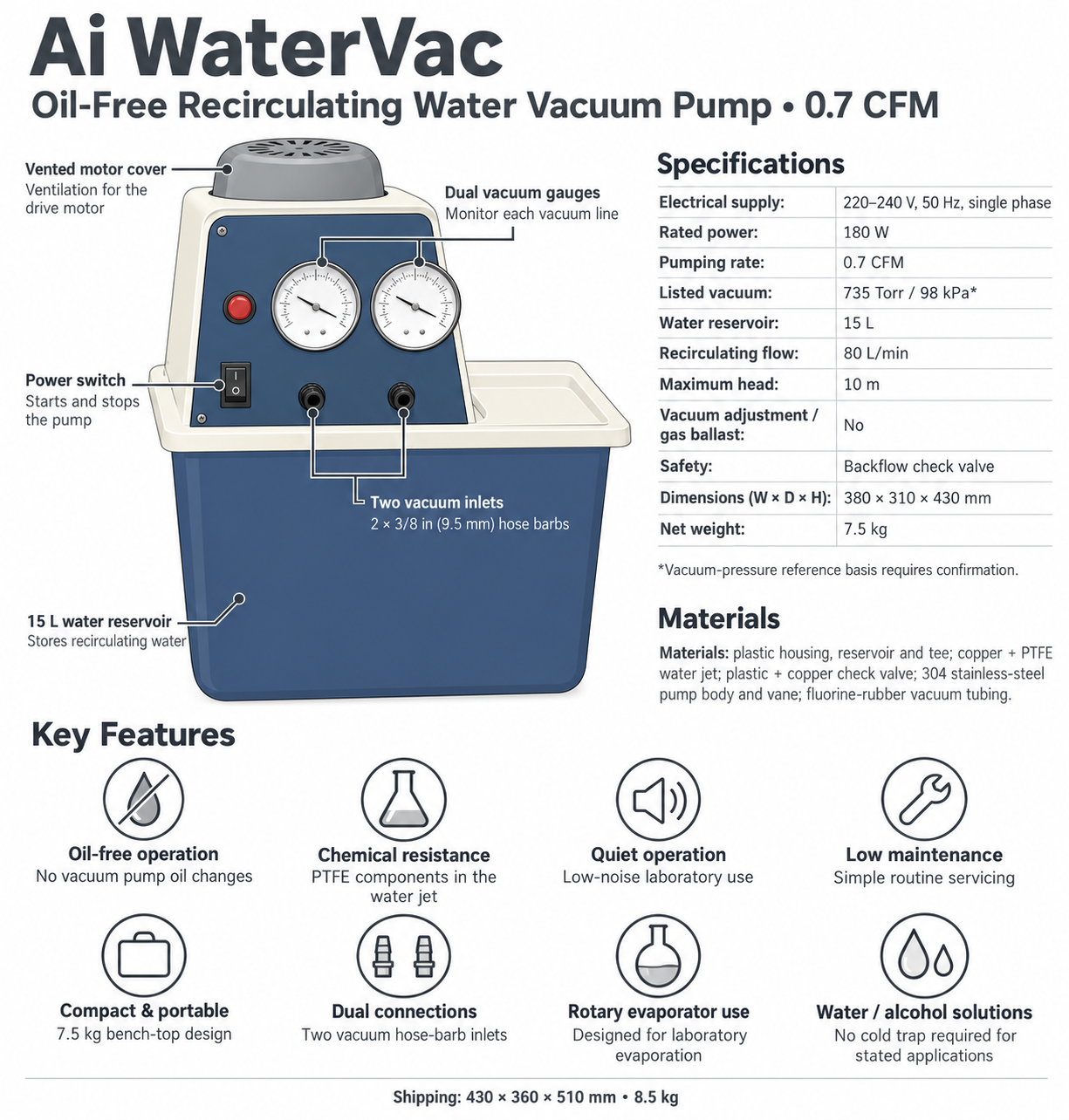

    Specifications

     Electrical requirements
     220-240 Volts 50Hz single phase, 180 watts
     Pumping rate
     0.7 cfm
     Ult. vacuum pressure
     735 torr / 97.9 kPa
     Vacuum inlet (vacuum connection)
     3/8" hose barb x 2
     Water reservoir Capacity: 15 liters
     Recirculating water

     Flow rate: 80 liters/min
     Max head: 10 meters

     Adjustable vac./gas ballast No
     Safety Back-flow check valve
     Material

     Housing, water reservoir, 3 way tee: plastic
     Water jet: copper + PTFE
     Check valve: plastic + copper
     Pump body, pump vane: type 304 stainless steel
     Vacuum tubing: fluorine rubber

     Pump dimensions (WxDxH)
     380 x 310 x 430 mm
     Shipping dimensions (LxWxH)
     430 x 360 x 510 mm
     Pump weight
     7.5 kg
     Shipping weight
     8.5 kg

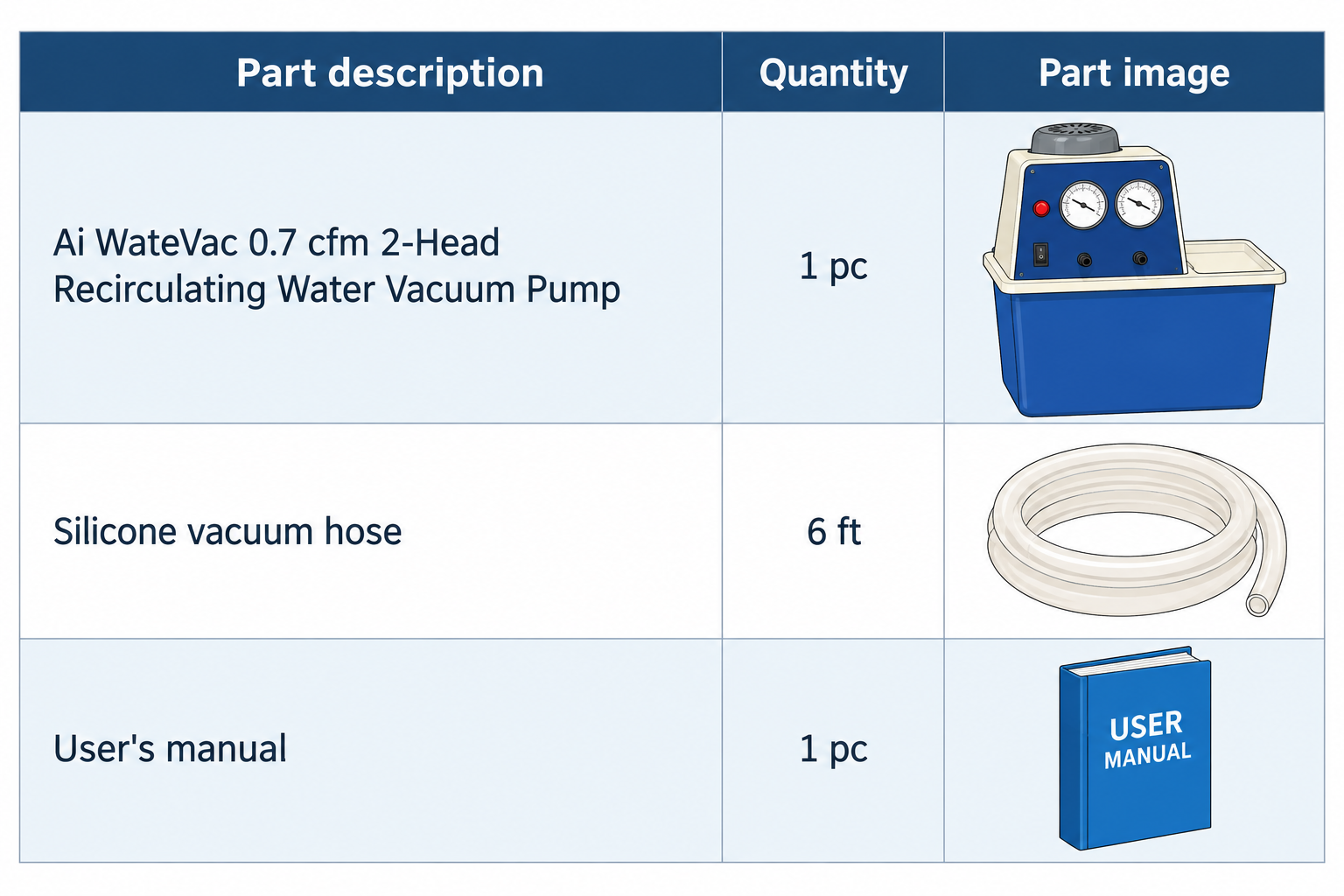

    Standard package

     Part description

     Quantity

     Ai WateVac 0.7 cfm 2-Head Recirculating Water Vacuum Pump
    1 pc
     Silicone vacuum hose
    6 ft
     User's manual
    1 pc
