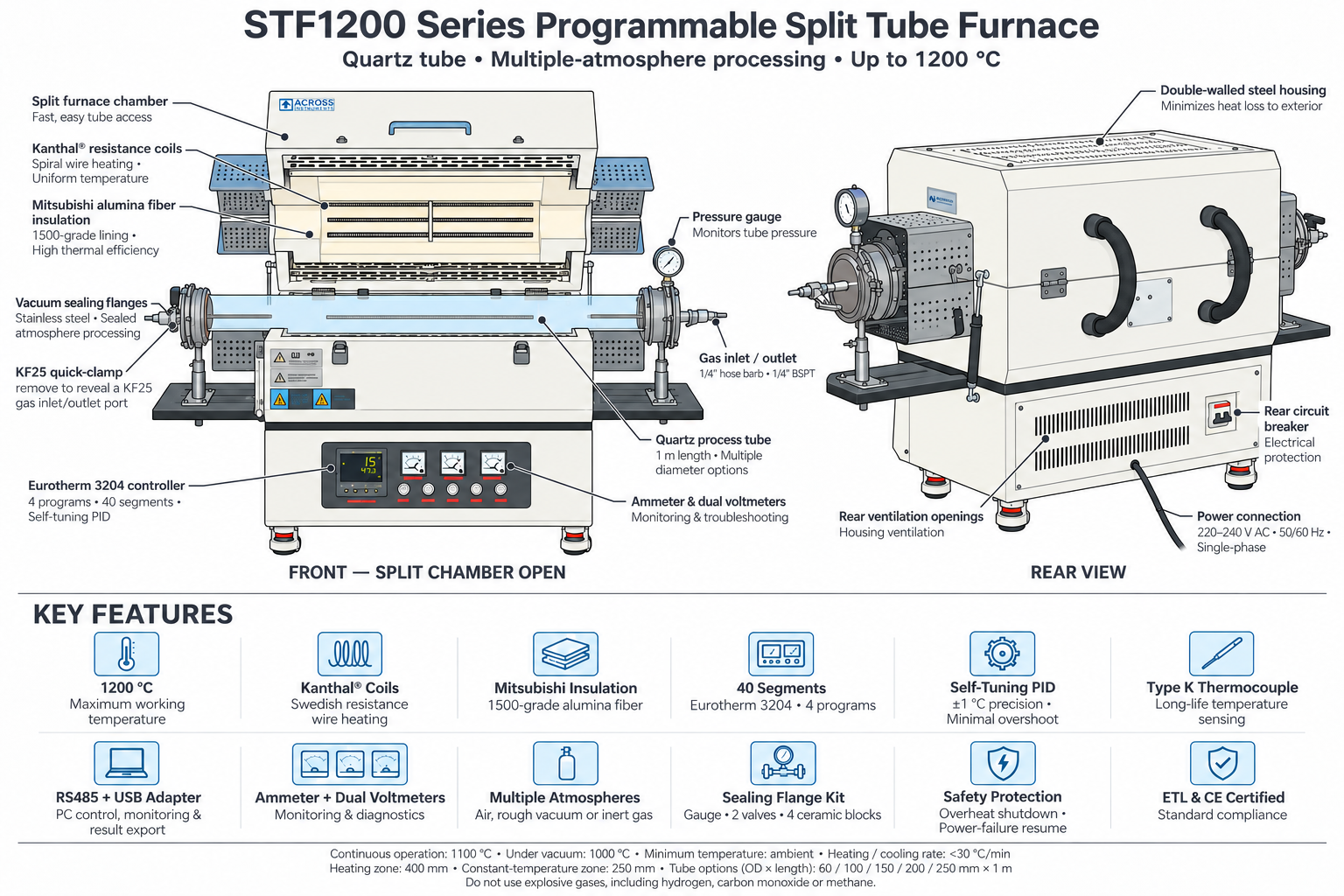

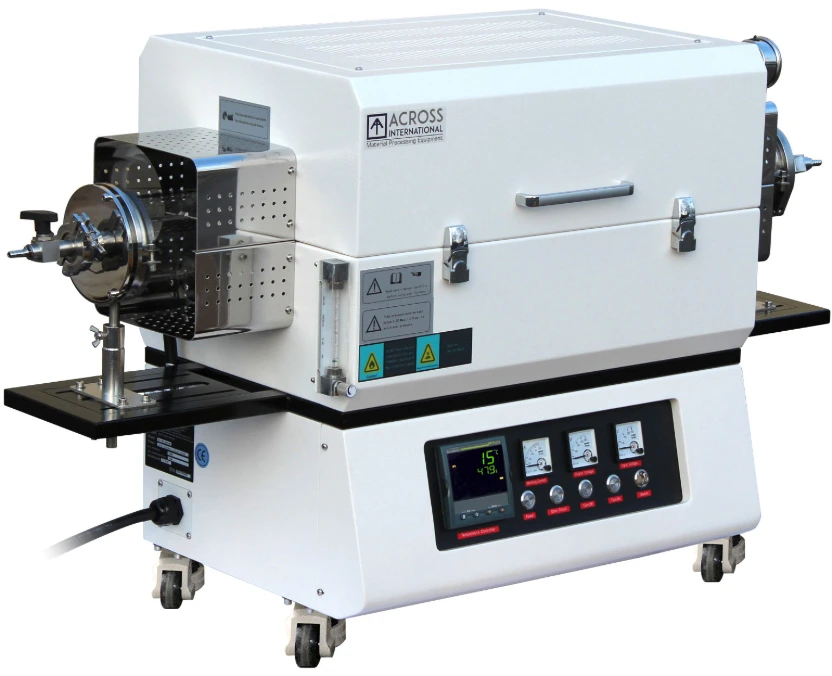

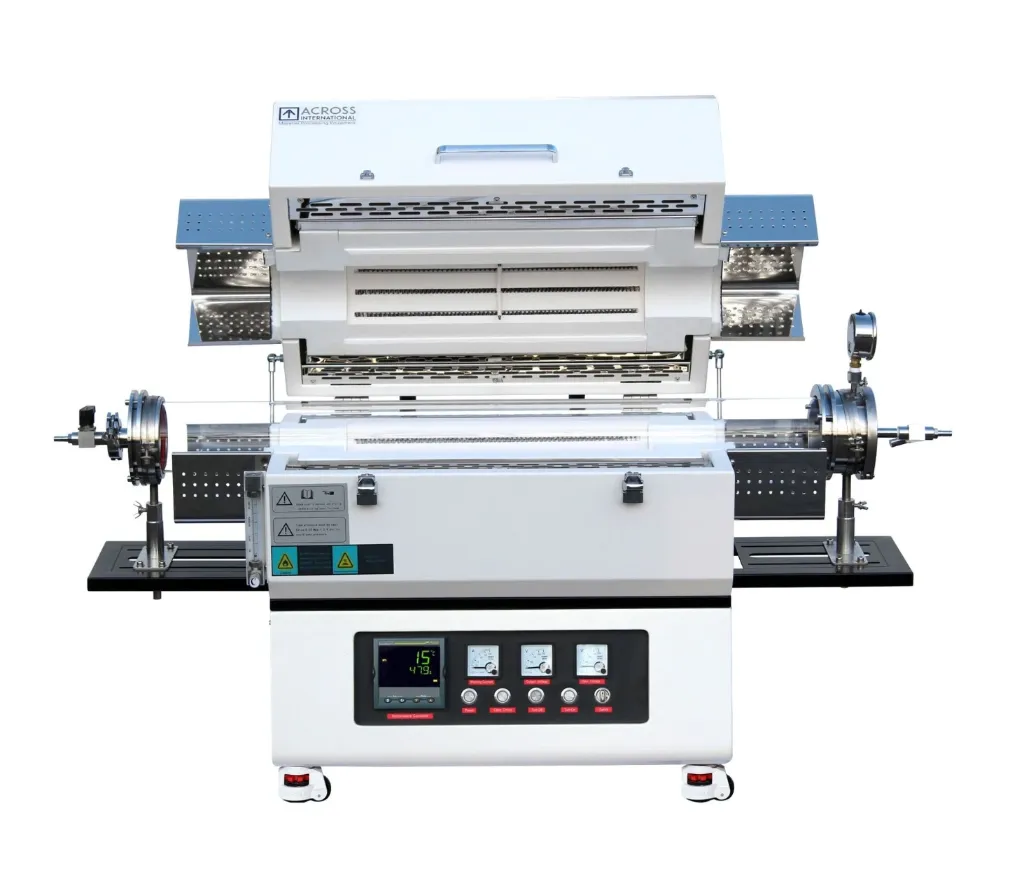

Ai STF1200 series split tube furnaces feature the famous Kanthal (Sweden) spiral wire coils embedded in Mitsubishi (Japan) high quality grade 1500 alumina fiber insulation. A double walled steel internal housing helps minimize heat loss to exterior surface.
Precise temperature control is provided by the Eurotherm 3204 programmable controller, offering 40 programmable segments and an advanced self-tuning PID algorithm that automatically optimizes heating performance while minimizing temperature overshoot. This combination delivers highly accurate and repeatable thermal processing for demanding laboratory and production environments.
Features
Compact, portable and lightweight design.

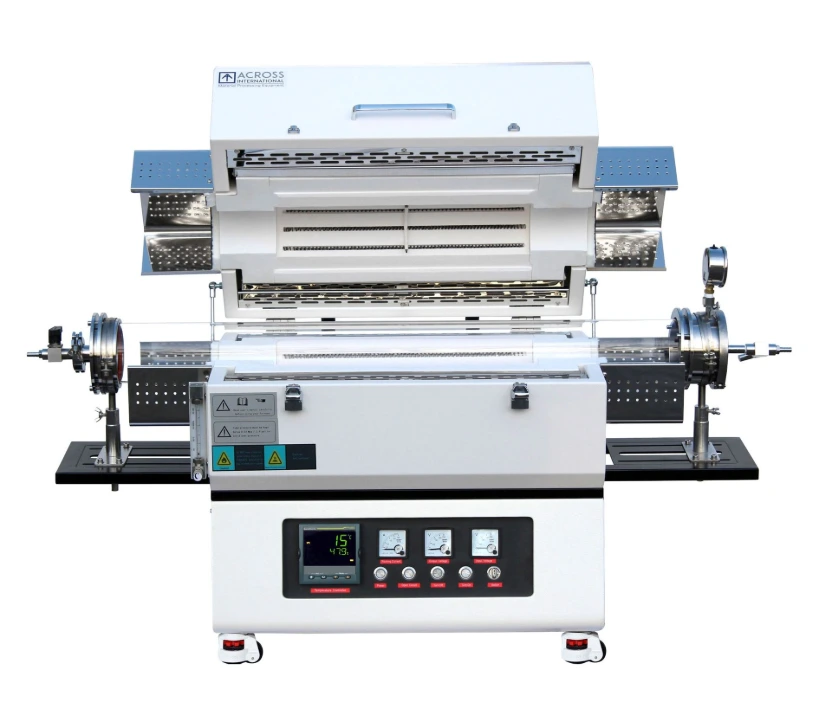

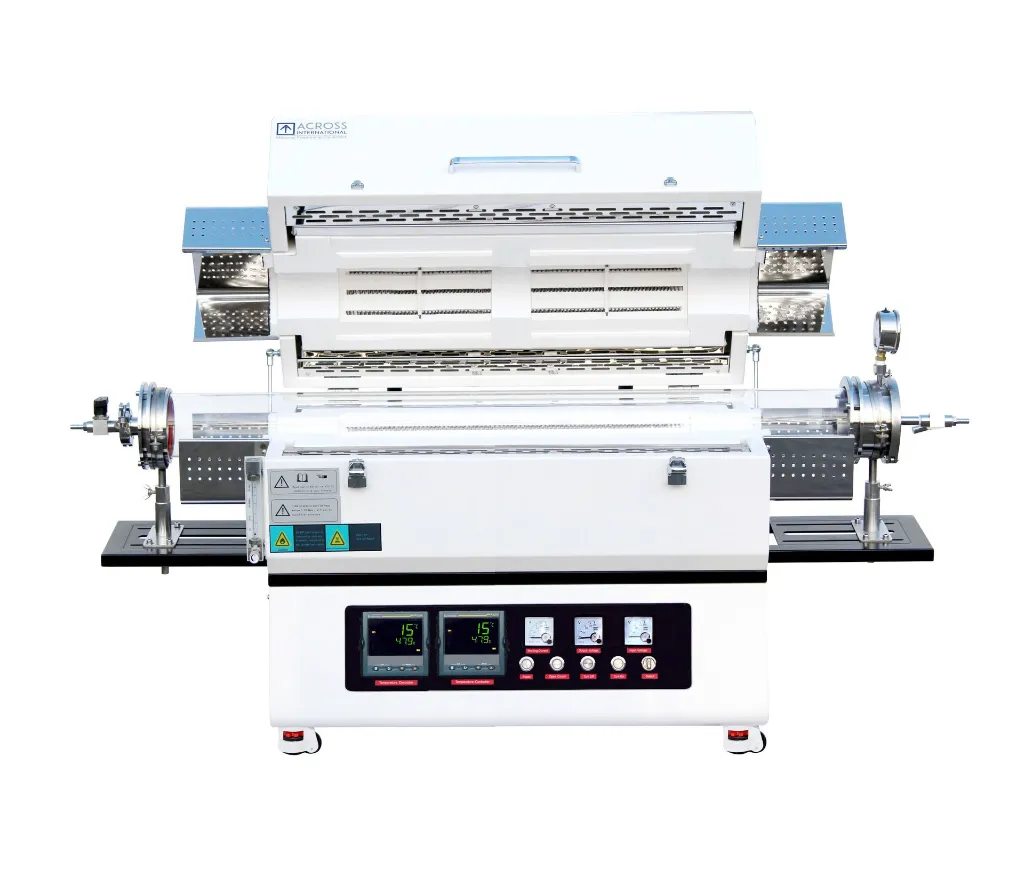

Split furnace chamber for fast and easy tube access.

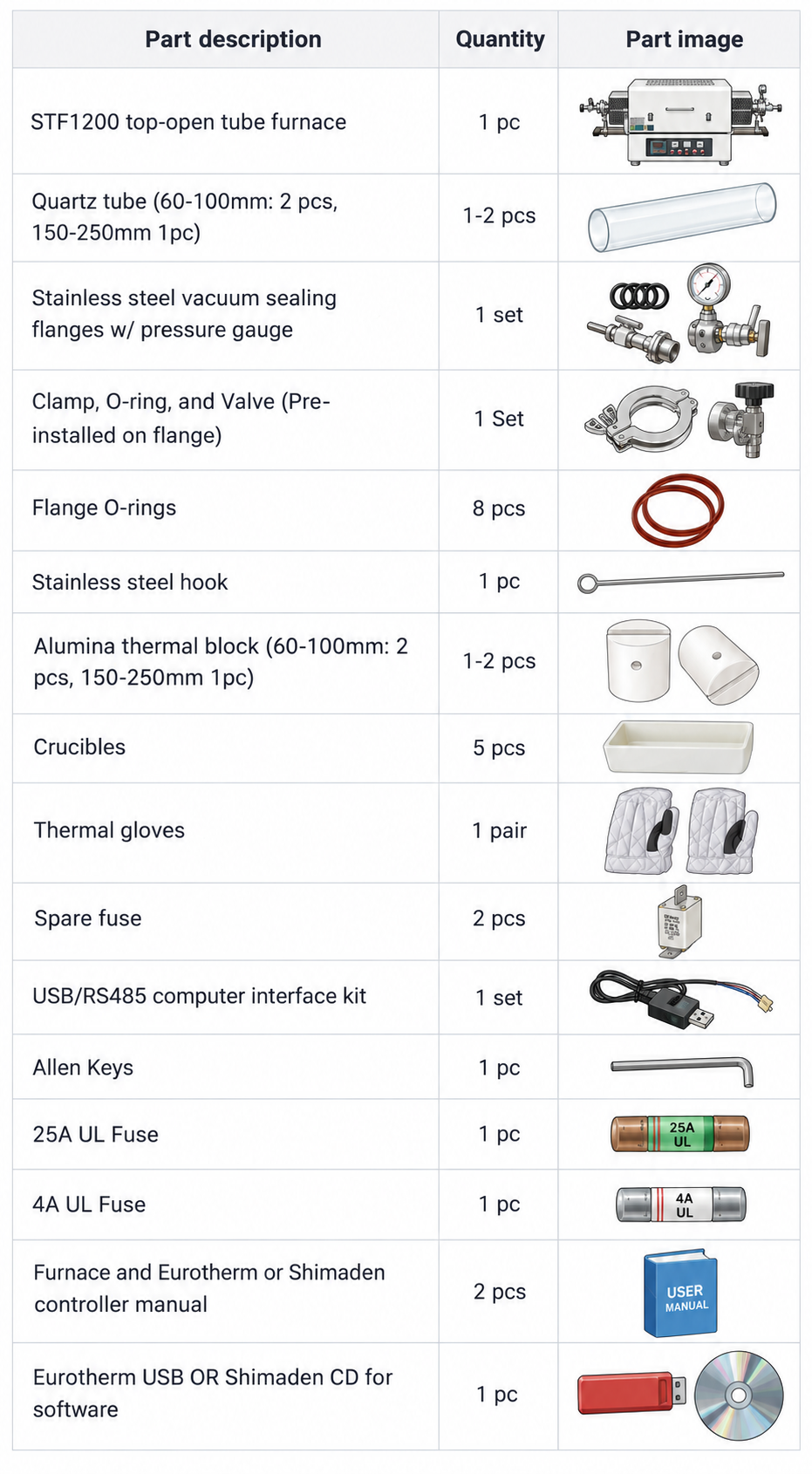

Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.
Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)
Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
Built-in computer interface.
Long life type K thermocouple.

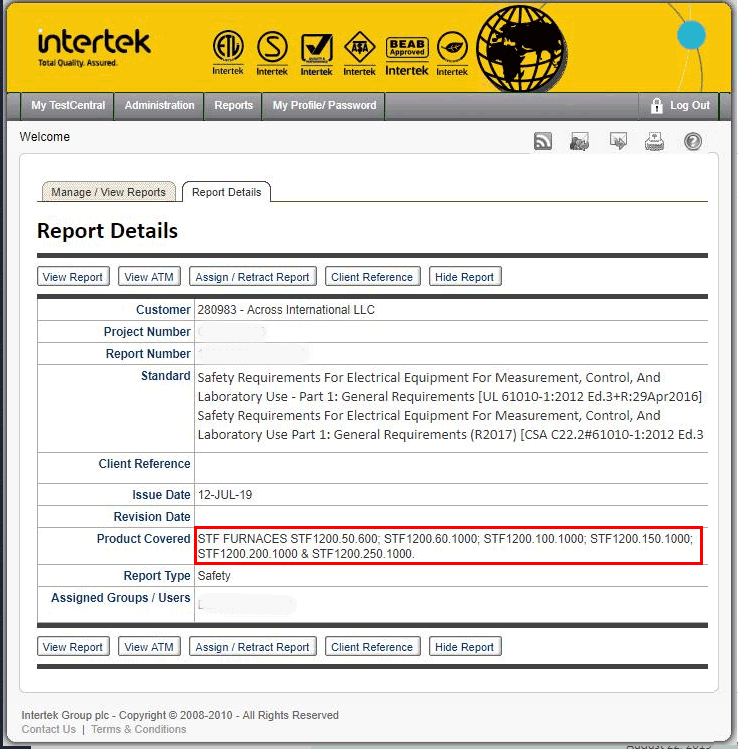

ETL and CE certified, standard
Safety
Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
Warning! NEVER fill furnace with explosive gases, including Hydrogen, Carbon Monoxide and Methane.
