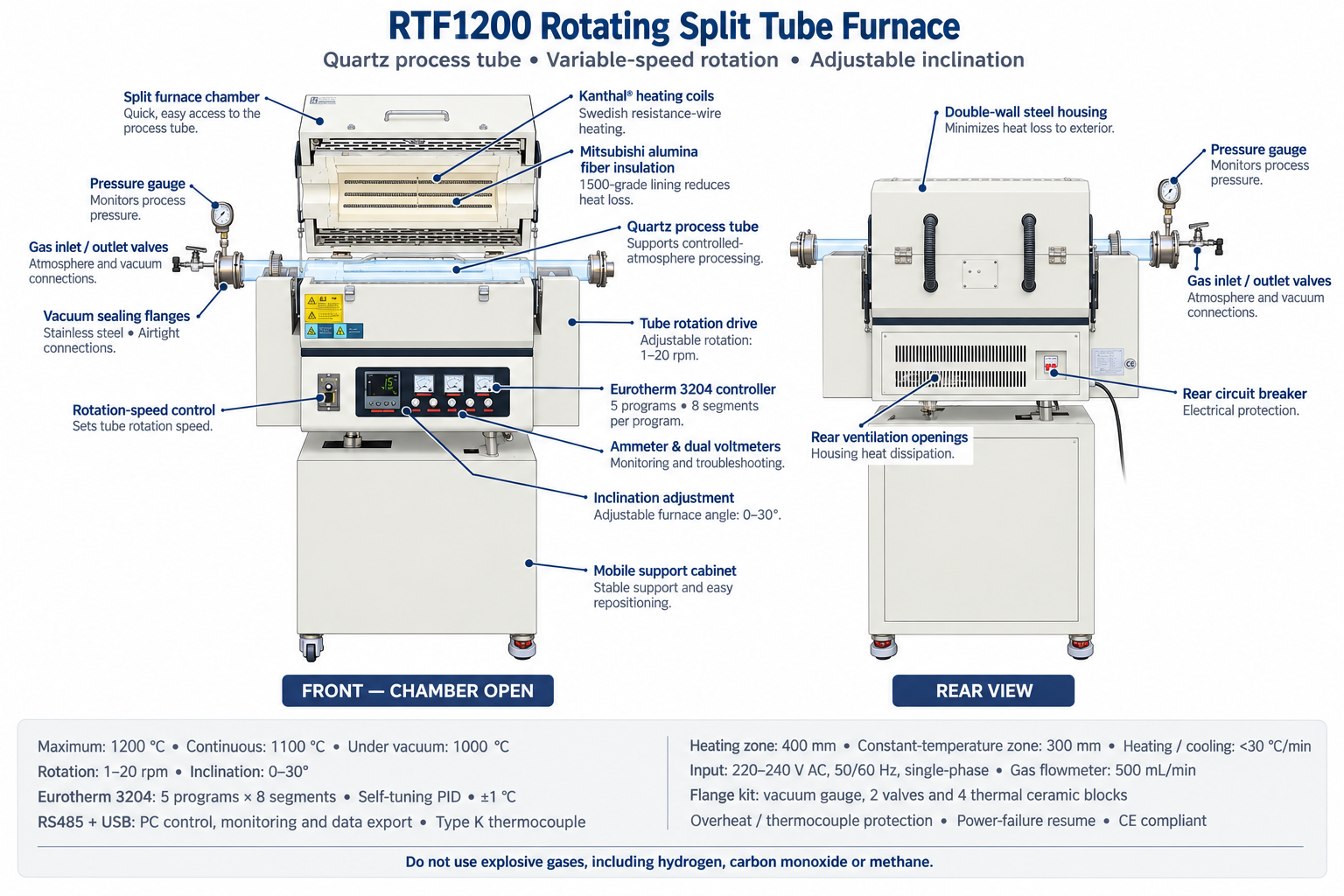

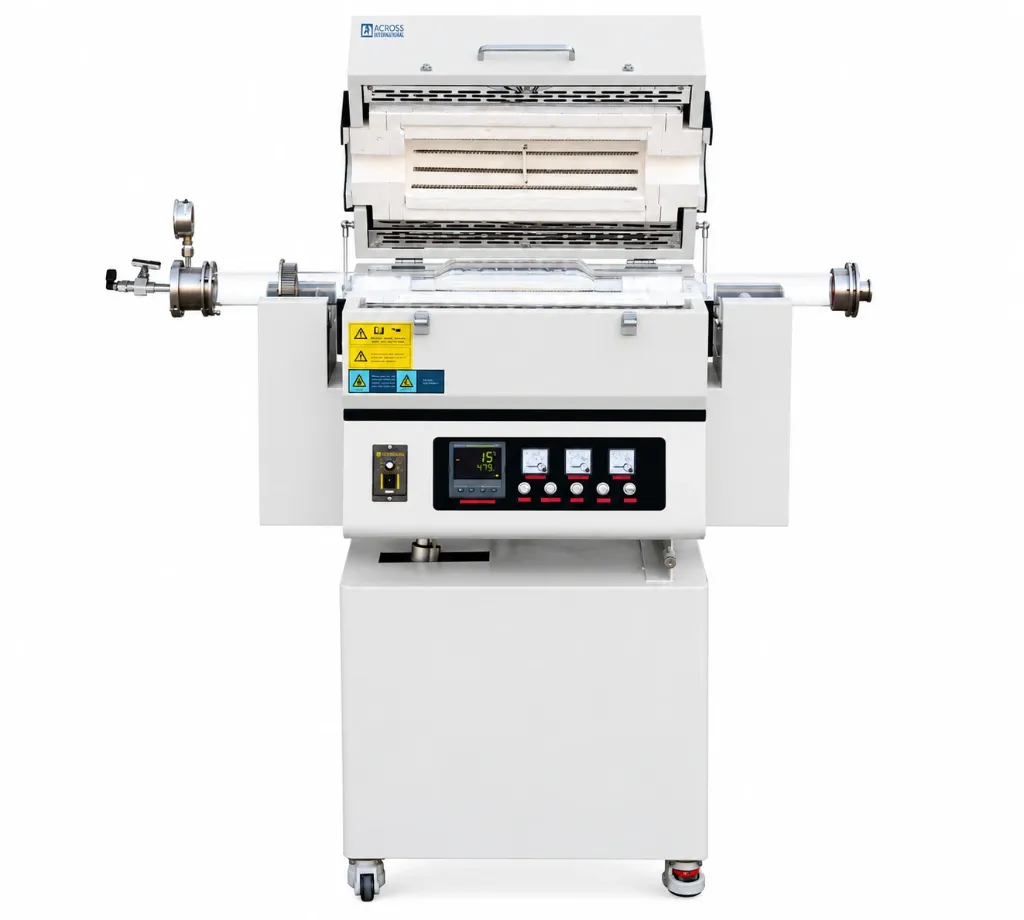

1200C 1-3 Zone Rotary & Tilting Top-Open Tube Furnace

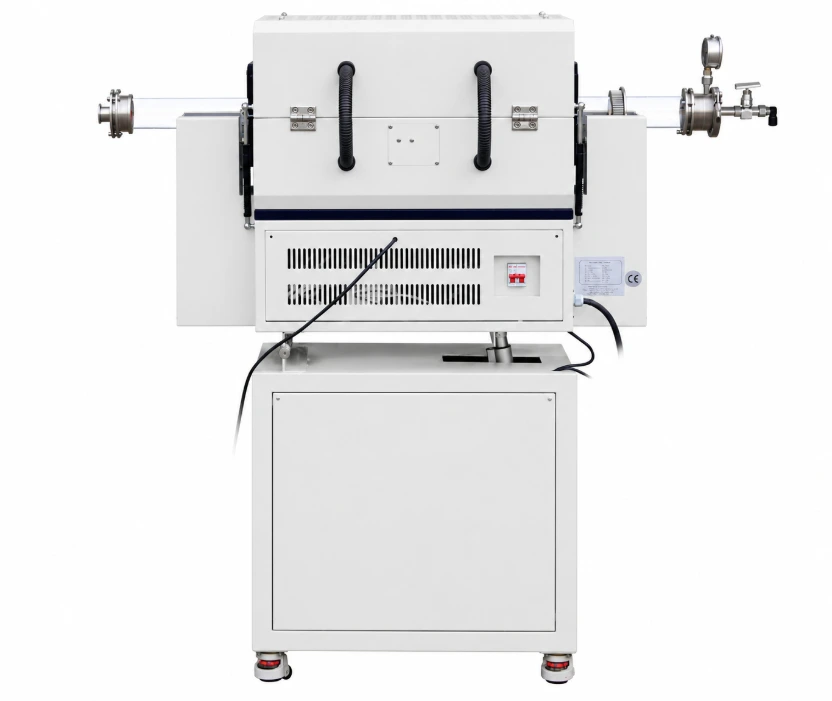

Ai RTF1200 series top-open tube furnaces feature the famous Kanthal (Sweden) spiral wire coils embedded in Mitsubishi (Japan) high-quality grade 1500 alumina fiber insulation. A double-walled steel internal housing helps minimize heat loss to the exterior surface.

Furnace operation is controlled by Eurotherm (UK) multi-segment digital controller, allowing the user to connect to a PC for remote control and monitoring of the furnace.

Controller Options:

Eurotherm 3204: 8 segments (ramping and dwelling)

Eurotherm 3504: 50 segments (ramping and dwelling)

Features

• Top-open furnace chamber for fast and easy tube access.

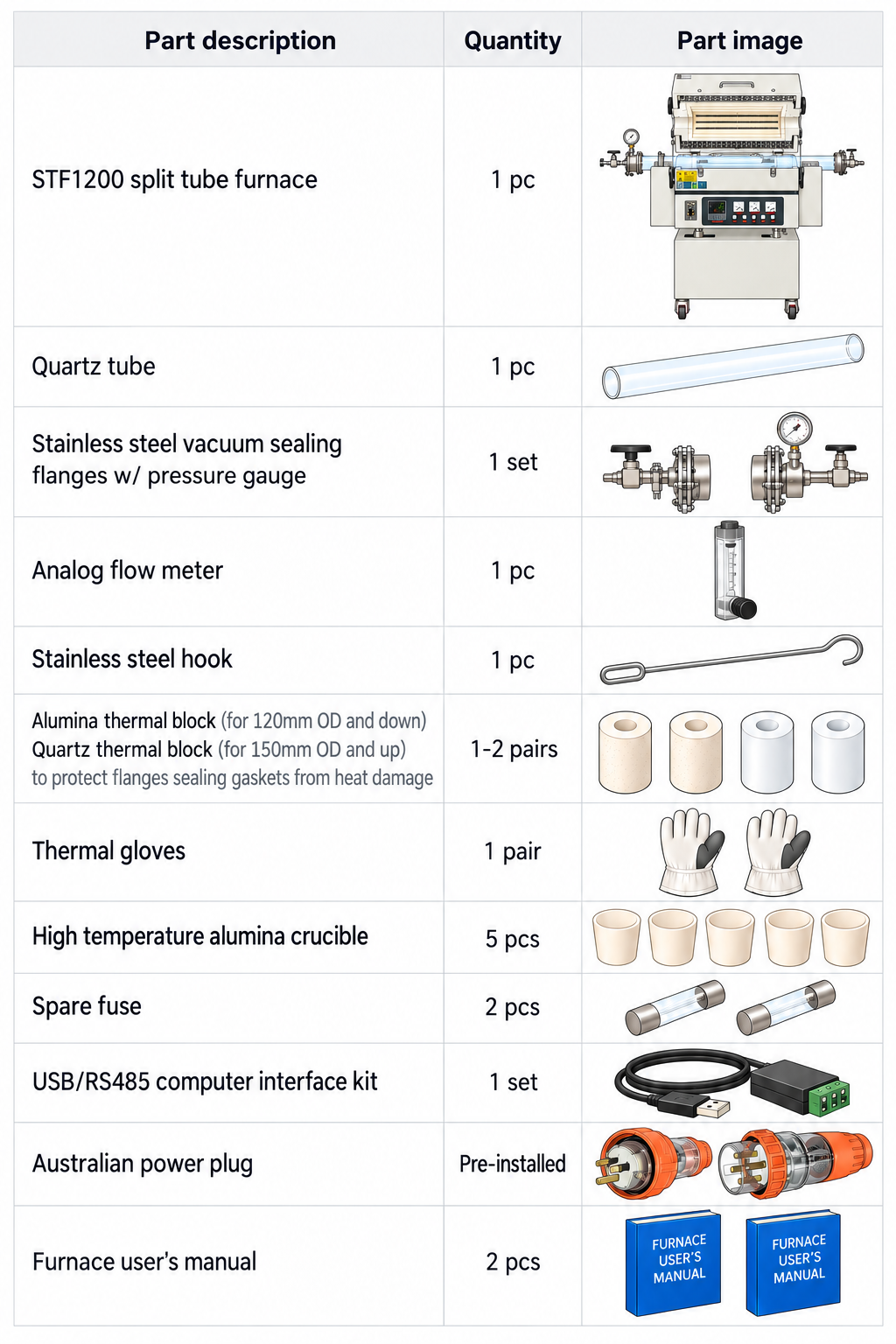

• Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.
• Eurotherm microprocessor based self-tuning PID controller provides optimum thermal process with minimal overshoot.
• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Built-in computer interface.

Safety

• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
• Limit switch turns off furnace once top is open.

Warning! NEVER fill furnace with explosive gases, including Hydrogen, Carbon Monoxide and Methane.
